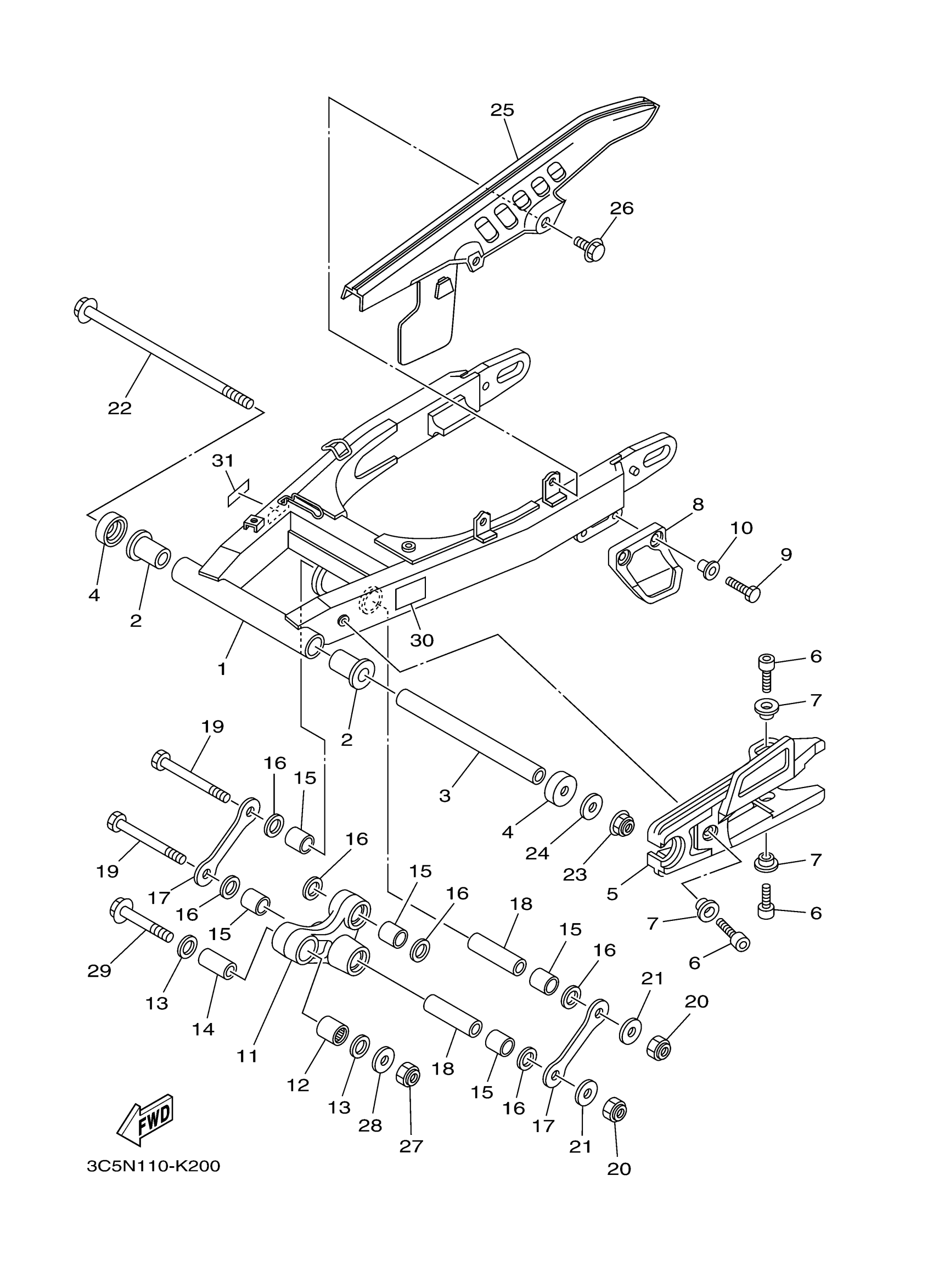

Yamaha XT250SC (XT250 CA) B1UR 2025 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
3C5-22110-00-00
Unavailable
2
BUSH
90386-18099-00
Unavailable
5
SEAL, GUARD
3C5-22151-00-00
Unavailable
11
ARM, RELAY
5XT-2217A-00-00
Unavailable
14
COLLAR(3YL)
90387-126X9-00
Unavailable
17
ROD, CONNECTING 1
3C5-2217F-01-00
Unavailable
18
COLLAR(3FV)
90387-123V9-00
Unavailable
19
BOLT
90101-12015-00
Unavailable
20
NUT, U (4PM)
95617-12100-00
Unavailable
21
WASHER (2T4)
90201-12699-00
Unavailable
22
SHAFT, PIVOT
5JV-22141-00-00
Unavailable
23
NUT, SELF-LOCKING(3JF)
95604-12200-00
Unavailable
24
WASHER, PLATE
90201-12045-00
Unavailable
25
CASE, CHAIN
34X-22311-01-00
Unavailable
26
BOLT, WITH WASHER (10V)
90119-05062-00
Unavailable
27
NUT, U
95612-12100-00
Unavailable
28
WASHER (2T4)
90201-12699-00
Unavailable
29
BOLT, WASHER BASED(1YW)
90105-12425-00
Unavailable
30
LABEL, TIRE
3C5-21668-01-00
Unavailable
31
LABEL, BRAKE FLUID
3C5-25839-11-00
Unavailable
