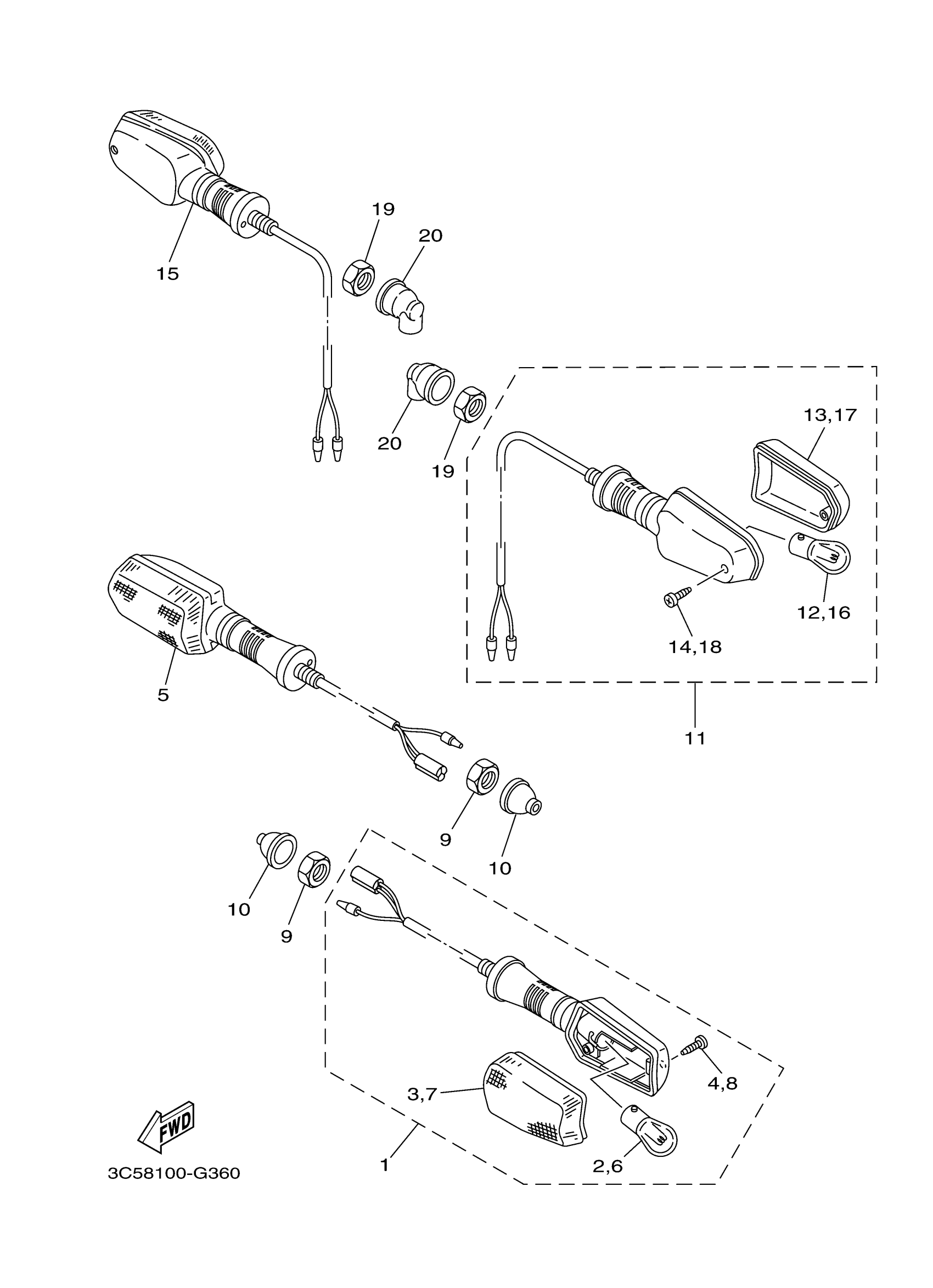

Yamaha XT250SC (XT250 CA) B1UR 2025 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

3C5-83310-10-00

$69.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER 2

51L-83342-01-00

$11.99

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

FRONT FLASHER LIGHT ASSY 2

3C5-83320-10-00

$89.99

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

LENS, FLASHER

51L-83332-01-00

Unavailable

8

SCREW, PAN TAP.2

97707-40520-00

$9.49

9

NUT, HEXAGON SMALL

95317-12700-00

$8.49

10

CAP

10V-83365-01-00

$3.33

11

REAR FLASHER LIGHT ASSY 1

3C5-83330-10-00

$53.99

12

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

13

LENS, FLASHER

51L-83332-01-00

Unavailable

14

SCREW, PAN TAP.2

97707-40520-00

$9.49

15

REAR FLASHER LIGHT ASSY 2

4BE-83340-00-00

$100.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

LENS, FLASHER 2

51L-83342-01-00

$11.99

18

SCREW, PAN TAP.2

97707-40520-00

$9.49

19

NUT, HEXAGON SMALL

95317-12700-00

$8.49

20

CAP

18G-83365-00-00

Unavailable
