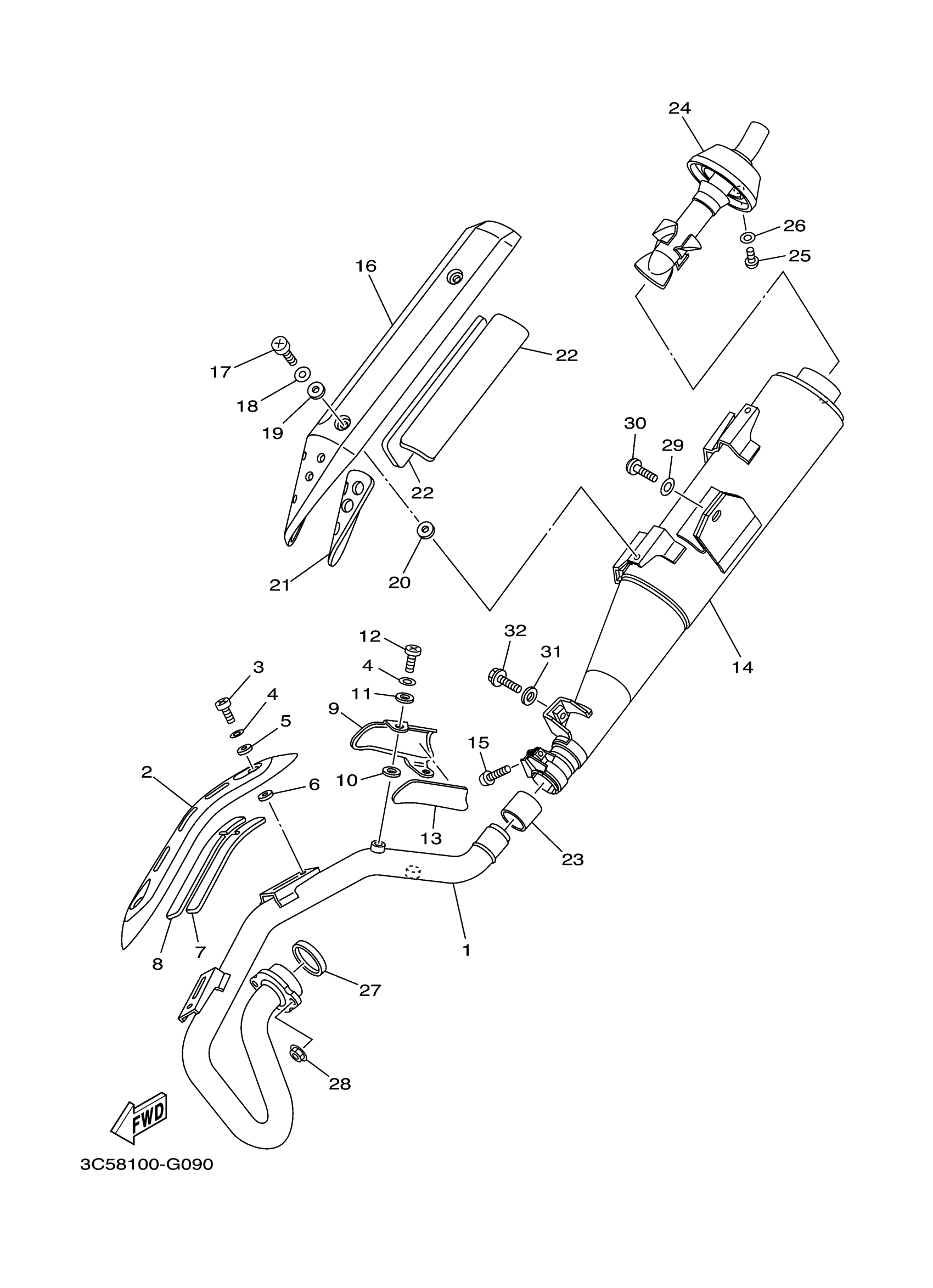

Yamaha XT250SC (XT250 CA) B1UR 2025 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5XT-14611-10-00

$283.99

2

PROTECTOR, EXHAUST PIPE

3C5-14628-00-00

Unavailable

3

SCREW, BIND(J45)

98980-06012-00

$8.49

4

WASHER, WAVE(3RW)

90206-06090-00

$8.49

5

WASHER, PLATE

90201-05015-00

$8.49

6

WASHER, PLATE

90201-05016-00

$4.46

7

PLATE, PROTECTOR

5XT-1465R-00-00

Unavailable

8

PLATE, PROTECTOR

5XT-1465T-00-00

Unavailable

9

COVER, 3

5XT-1479K-00-00

$30.99

10

WASHER, PLATE

90201-05017-00

Unavailable

11

WASHER, PLATE

90201-05015-00

$8.49

12

SCREW, BINDING

90154-06020-00

$5.60

13

PLATE, PROTECTOR 3

5XT-1465U-00-00

$5.49

14

MUFFLER 1

3C5-14711-10-00

Unavailable

15

BOLT

90109-085G6-00

$3.23

16

PROTECTOR, MUFFLER 2

3C5-14728-00-00

Unavailable

17

SCREW, BIND(J45)

98980-06012-00

$8.49

18

WASHER, WAVE(3RW)

90206-06090-00

$8.49

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

WASHER, PLATE(3MT)

90202-05188-00

Unavailable

21

PROTECTER, MUFFLER 3

5XT-14738-00-00

Unavailable

22

PROTECTOR, MUFFLER 4

5XT-14748-00-00

Unavailable

23

GASKET, MUFFLER

3YF-14714-00-00

Unavailable

24

PIPE, OUTLET

1RH-14752-01-00

Unavailable

25

SCREW, PAN

98507-06010-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable

28

NUT, FLANGE

95704-08500-00

Unavailable

29

WASHER (853)

90201-08326-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-08020-00

Unavailable

31

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

32

BOLT, FLANGE

90105-08074-00

Unavailable
