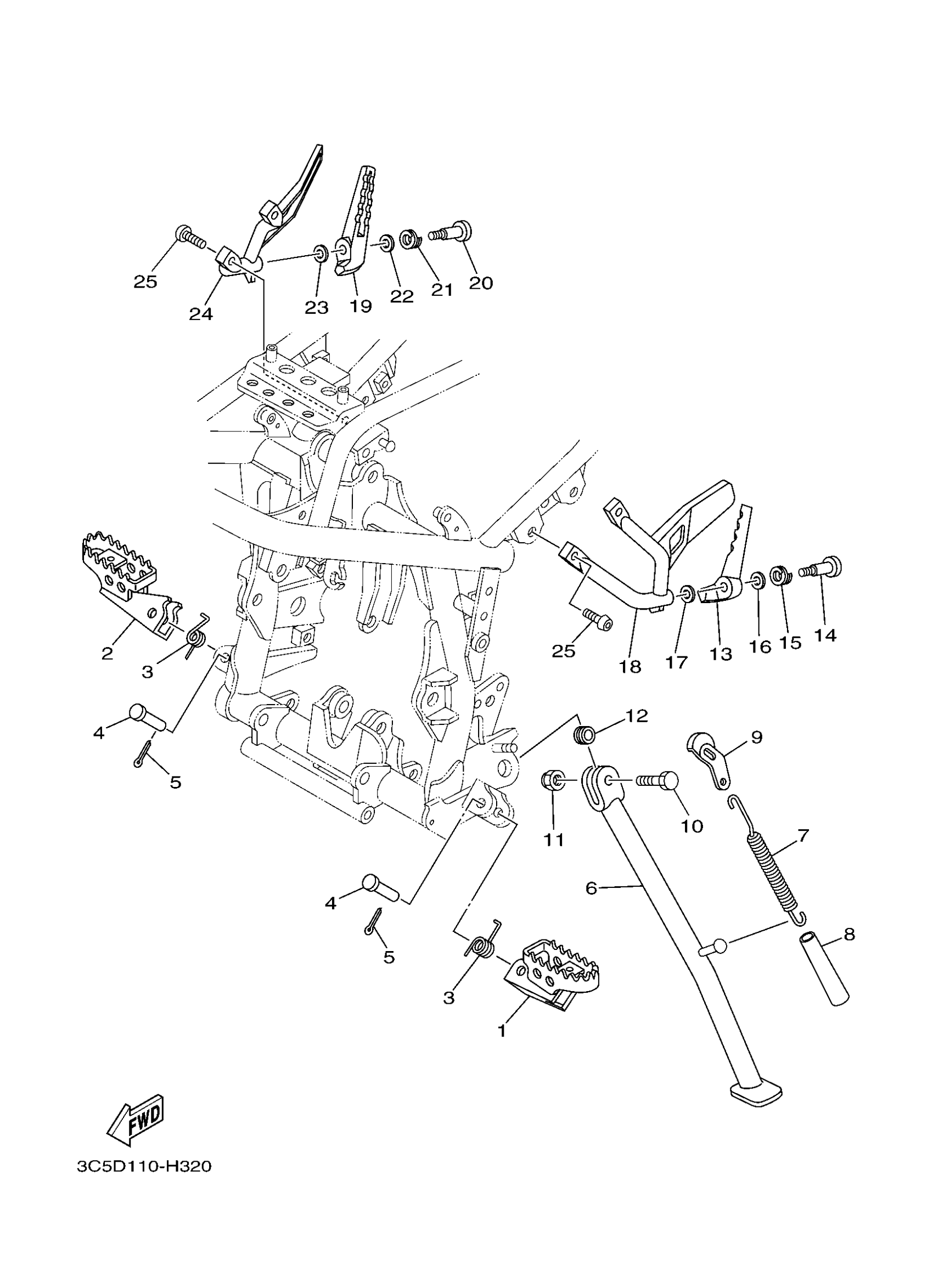

Yamaha XT250PC (XT250 CA) B1UJ 2023 STAND & FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

3LD-27411-10-00

Unavailable

2

FOOTREST 2

3LD-27421-10-00

$48.99

3

SPRING, TORSION (23X)

90508-20583-00

$8.49

4

PIN, CLEVIS (23X)

90240-10101-00

$12.49

5

PIN, COTTER

91490-25020-00

$3.19

6

STAND, SIDE

3C5-27311-11-00

$61.99

7

SPRING, TENSION(3XP)

90506-35473-00

$16.99

8

HOSE (L70)

90445-22327-00

$7.49

9

LINK, SIDE STAND

5XT-27315-01-00

$6.99

10

BOLT

90101-10013-00

Unavailable

11

NUT, SELF-LOCKING

90185-10012-00

$9.49

12

COLLAR

90387-10003-00

$25.99

13

FOOTREST, REAR 1

3XP-27431-02-00

$36.99

14

BOLT(3XP)

90109-085F5-00

$5.49

15

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

16

WASHER(6TA)

92907-10600-00

Unavailable

17

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

18

BRACKET 1

3C5-27432-00-00

Unavailable

19

FOOTREST, REAR 2

3XP-27441-02-00

Unavailable

20

BOLT(3XP)

90109-085F5-00

$5.49

21

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

22

WASHER(6TA)

92907-10600-00

Unavailable

23

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

24

BRACKET 2

3C5-27442-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-08020-00

Unavailable
