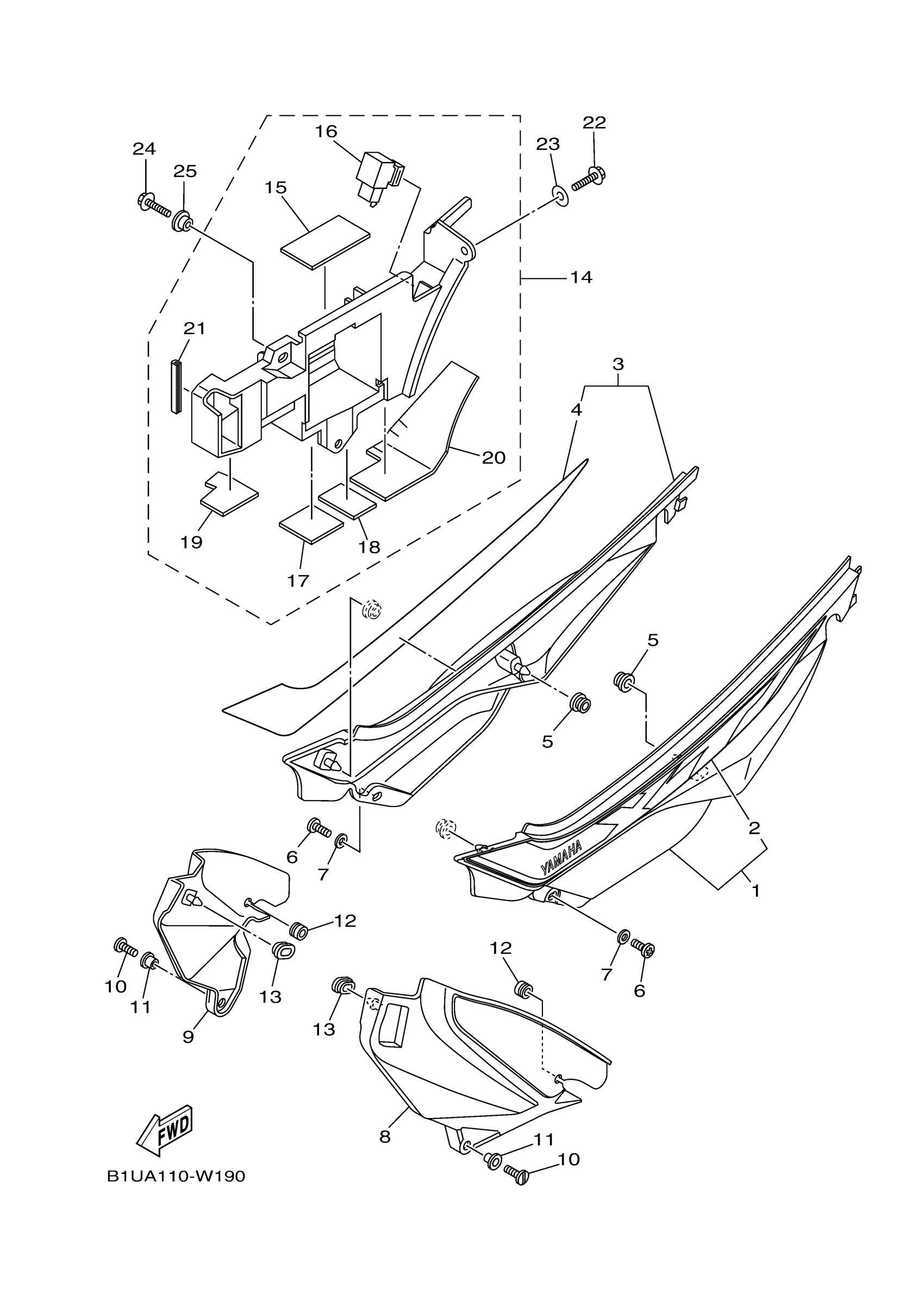

Yamaha XT250PC (XT250 CA) B1UJ 2023 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3C5-Y2171-8A-00

Unavailable

2

GRAPHIC 1

B1U-2173E-00-00

Unavailable

3

COVER, SIDE 2

3C5-Y2172-8A-00

$118.99

4

GRAPHIC 2

B1U-2173F-00-00

Unavailable

5

GROMMET(4DN)

90480-01558-00

$4.19

6

SCREW(3XV)

90149-06298-00

$5.60

7

WASHER, PLATE

90201-06020-00

$9.49

8

COVER, SIDE 3

3C5-21731-00-00

$14.49

9

COVER, SIDE 4

3C5-21741-00-00

$15.49

10

SCREW, OVAL FILLISTER (7X9)

90146-06014-00

$3.50

11

COLLAR

90387-06048-00

$8.49

12

GROMMET (17J)

90480-10334-00

$9.49

13

GROMMET(41Y)

90480-01401-00

$8.49

14

BATTERY BOX ASSY

1YB-8210E-20-00

Unavailable

15

DAMPER, PLATE 1

5EJ-2414H-00-00

$6.99

16

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

17

INSULATOR, SIDE COVER

5XT-2174A-00-00

Unavailable

18

INSULATOR, SIDE COVER 2

5XT-2174T-00-00

Unavailable

19

INSULATOR 3

5XT-2172S-00-00

Unavailable

20

INSULATOR 4

5XT-2173S-00-00

Unavailable

21

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

22

BOLT, FLANGE

95817-06010-00

Unavailable

23

WASHER, PLATE

90201-06095-00

Unavailable

24

BOLT, FLANGE

95817-06014-00

Unavailable

25

COLLAR

90387-06066-00

Unavailable
