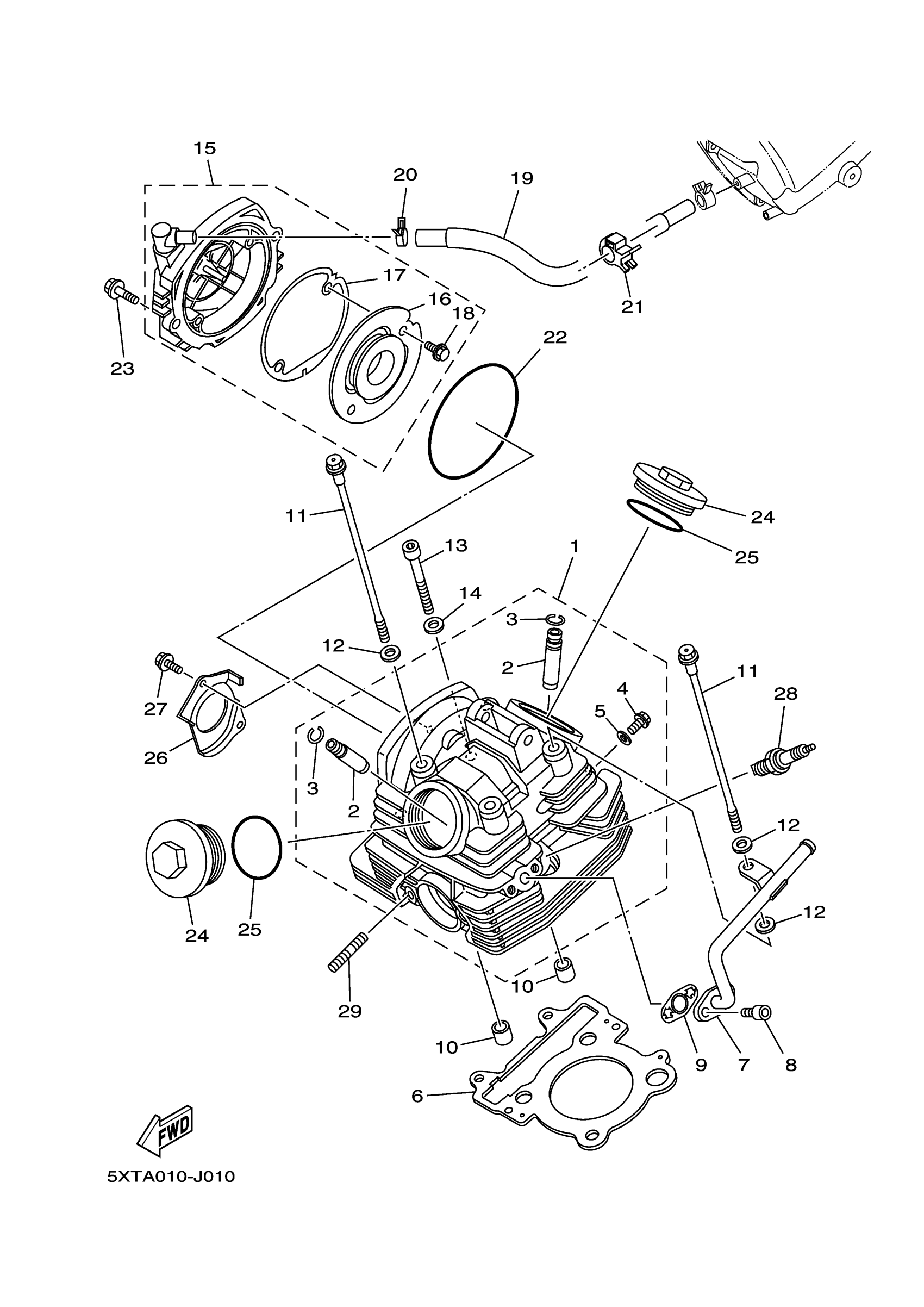

Yamaha XT250NC (XT250 CA) B1UF 2022 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5XT-11102-10-00

Unavailable

2

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

SCREW, HEXAGON

90153-06002-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

GASKET, CYLINDER HEAD 1

5XT-11181-20-00

$46.99

7

PIPE 1

5XT-14871-20-00

$64.99

8

BOLT, SOCKET

91314-06016-00

$8.49

9

GASKET

5XT-14815-00-00

$5.49

10

PIN, DOWEL

99530-14016-00

$3.80

11

BOLT, FLANGE

90105-08117-00

$8.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT,SOCKET

91314-08045-00

$8.49

14

WASHER, PLATE

90201-06018-00

$4.72

15

COVER, CYLINDER HEAD 1

5XT-11190-20-00

$93.99

16

PLATE, BREATHER

5XT-11165-00-00

Unavailable

17

GASKET, CYLINDER HEAD SIDE

4D3-11196-00-00

Unavailable

18

BOLT, FLANGE

95022-06010-00

Unavailable

19

PIPE, BREATHER 1

5XT-11166-20-00

Unavailable

20

CLIP (7K7)

90467-11044-00

Unavailable

21

CLAMP(4HM)

90464-15192-00

Unavailable

22

O-RING (5H0)

93211-05471-00

Unavailable

23

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

24

COVER, CYLINDER HEAD SIDE 2

5XT-11186-00-00

Unavailable

25

O-RING

93210-54001-00

Unavailable

26

PLATE

5XT-1111F-00-00

Unavailable

27

BOLT, FLANGE

95022-06012-00

Unavailable

28

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

Unavailable

29

BOLT, STUD

90116-08023-00

Unavailable
