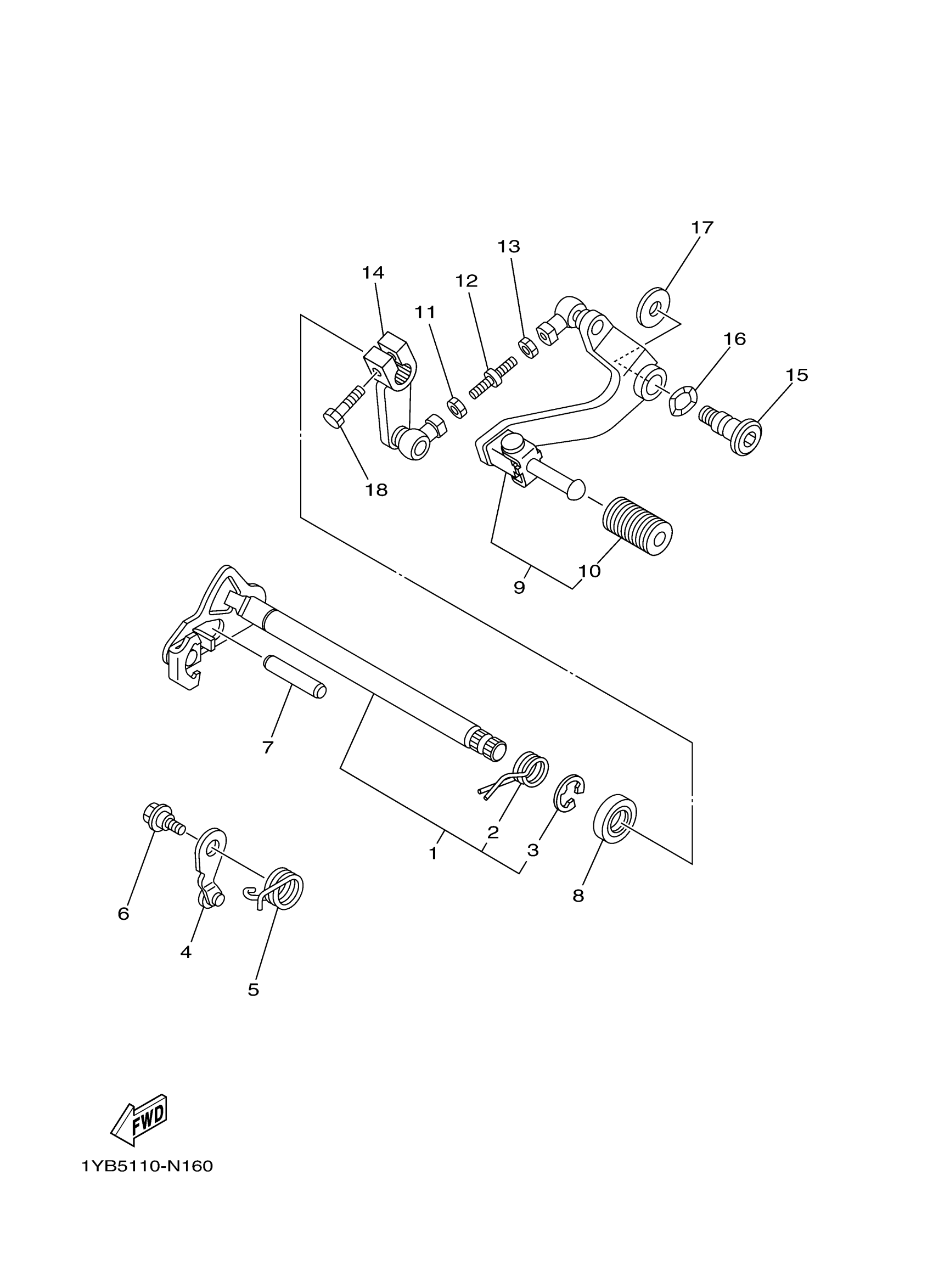

Yamaha XT250MC (XT250 CA) B1UB 2021 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

5XT-18101-03-00

$85.99

2

SPRING, TORSION

90508-32139-00

$3.08

3

. CIRCLIP

99001-12600-00

Unavailable

4

STOPPER LEVER ASSY

4TP-18140-00-00

Unavailable

5

SPRING, TORSION

90508-26020-00

Unavailable

6

BOLT

90109-06190-00

$4.72

7

PIN, DOWEL(4GY)

93608-43228-00

$4.94

8

OIL SEAL (3Y1)

93102-14209-00

$11.49

9

SHIFT PEDAL ASSY

5XT-18110-20-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

NUT(JN5)

95317-06700-00

$8.49

12

ROD, SHIFT

5XT-18115-10-00

Unavailable

13

NUT

90170-06022-00

$3.40

14

ARM, SHIFT

5XT-18112-10-00

$56.99

15

BOLT

5XT-27434-10-00

$12.99

16

WASHER, WAVE (17W)

90206-12074-00

Unavailable

17

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable
