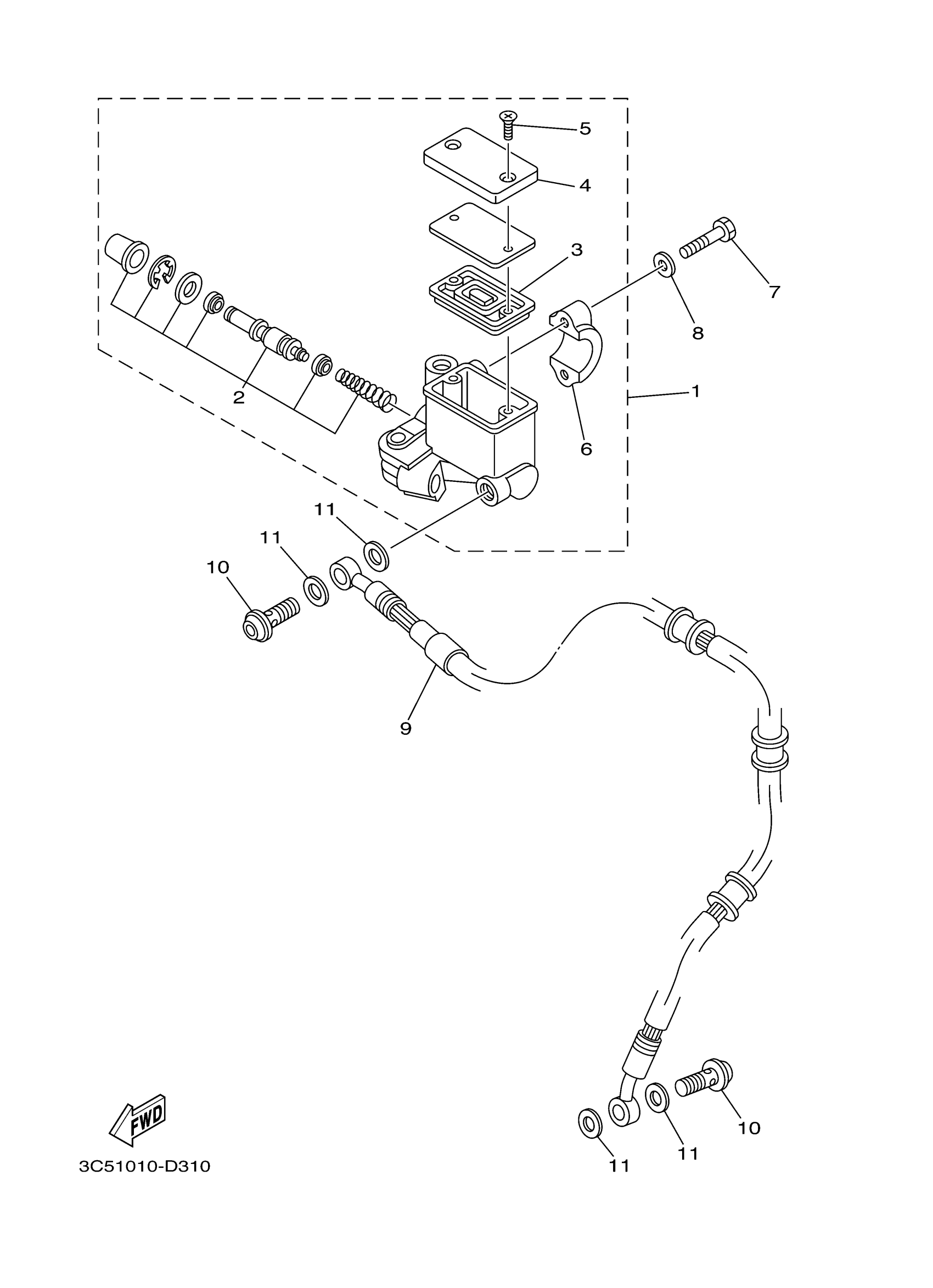

Yamaha XT250MC (XT250 CA) B1UB 2021 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5XT-2583T-00-00

$217.58

2

CYLINDER KIT, MASTER

5XT-W0041-00-00

$31.02

3

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$20.24

4

CAP, RESERVOIR

3GM-25852-22-00

$51.86

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$23.01

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER(6TA)

92907-06600-00

$0.73

9

HOSE, BRAKE 1

3C5-25872-00-00

Unavailable

10

BOLT, UNION

90401-10172-00

$3.46

11

GASKET

90430-10005-00

$6.57
