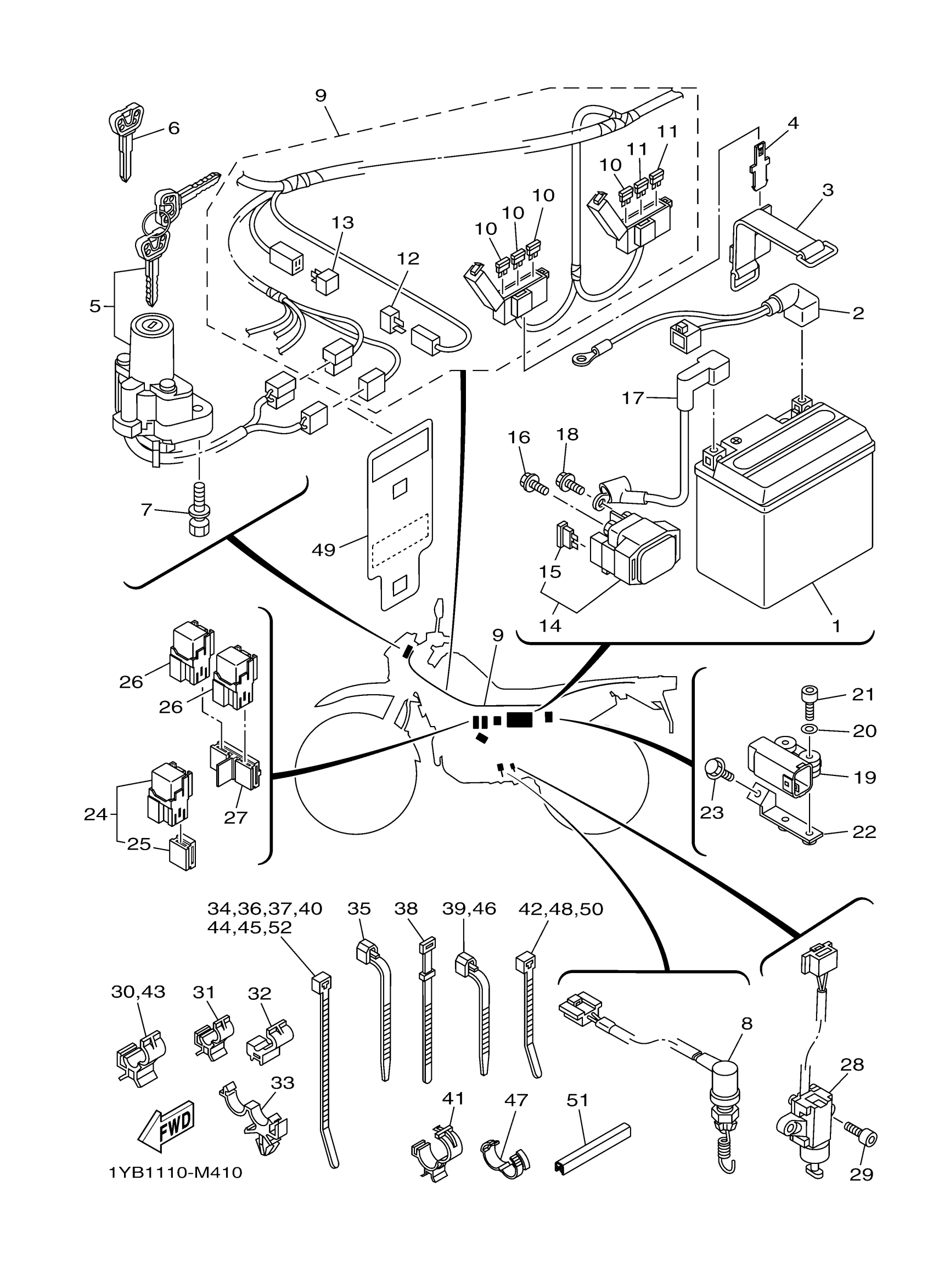

Yamaha XT250MC (XT250 CA) B1UB 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

Unavailable

2

WIRE, MINUS LEAD

5XT-82116-00-00

Unavailable

3

BAND, BATTERY

5XT-82131-00-00

Unavailable

4

STAY, FUSE BOX

5XT-82171-00-00

Unavailable

5

MAIN SWITCH STEERI

3C5-82501-11-00

$141.99

6

BLANK KEY

4BH-82511-09-00

$30.99

7

BOLT

90109-08196-00

$8.49

8

STOP SWITCH ASSY

5C1-82530-01-00

Unavailable

9

WIRE HARNESS ASSY

1YB-82590-00-00

$358.99

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

FUSE (15A)

67F-82151-50-00

Unavailable

12

DIODE ASSY

4WA-81980-00-00

$29.99

13

DIODE ASSY

3XV-81980-00-00

$18.49

14

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

15

FUSE (12V 30A)

1AE-82151-00-00

$7.99

16

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

17

WIRE, PLUS LEAD

5XT-82115-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

19

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

20

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

21

BOLT

91312-04025-00

Unavailable

22

BRACKET 1

5XT-2141A-00-00

Unavailable

23

BOLT, FLANGE

95022-06012-00

Unavailable

24

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

25

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

26

RELAY ASSY (5UM-E0)

5UM-81950-E0-00

Unavailable

27

HOLDER, RELAY

5XT-81952-00-00

Unavailable

28

SWITCH, SIDE STAND

5XT-82566-01-00

Unavailable

29

BOLT,SOCKET

91317-05014-00

Unavailable

30

CLAMP(4GY)

90464-10190-00

Unavailable

31

CLAMP(4GY)

90464-08189-00

Unavailable

32

CLAMP(4GY)

90464-05188-00

Unavailable

33

CLAMP

90464-16006-00

Unavailable

34

BAND

1UA-82591-00-00

Unavailable

35

CLAMP(4FM)

90464-15195-00

Unavailable

36

BAND

1UA-82591-00-00

Unavailable

37

BAND

1UA-82591-00-00

Unavailable

38

BAND, SWITCH CORD

437-83936-11-00

Unavailable

39

CLAMP

90464-13077-00

Unavailable

40

BAND

1UA-82591-00-00

Unavailable

41

CLAMP(4GY)

90464-20191-00

Unavailable

42

CLAMP

90465-10098-00

Unavailable

43

CLAMP(4GY)

90464-10190-00

Unavailable

44

BAND

1UA-82591-00-00

Unavailable

45

BAND

1UA-82591-00-00

Unavailable

46

CLAMP

90464-13077-00

Unavailable

47

CLAMP

90464-16001-00

Unavailable

48

CLAMP

90465-10098-00

Unavailable

49

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

50

CLAMP

90465-10098-00

Unavailable

51

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

52

BAND

1UA-82591-00-00

Unavailable
