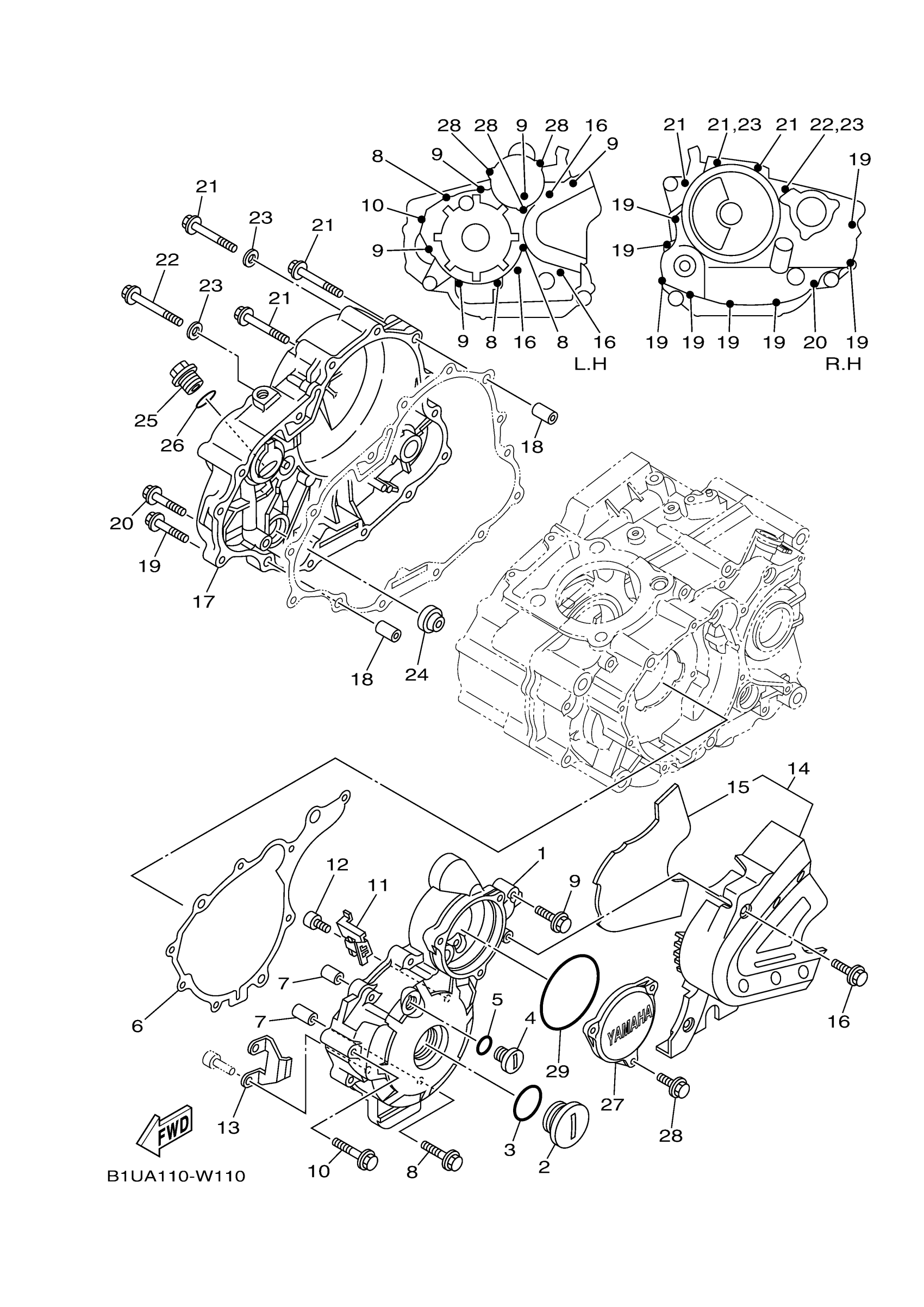

Yamaha XT250MC (XT250 CA) B1UB 2021 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

5XT-15411-02-00

Unavailable

PLUG, STRAIGHT SCREW (5H0)

90340-32069-00

$31.99

O-RING (341)

93210-32172-00

$7.49

PLUG, STRAIGHT SCREW(3VD)

90340-14151-00

Unavailable

O-RING (2H9)

93210-14369-00

$7.49

GASKET, CRANKCASE COVER 1

4D3-15451-00-00

$15.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

BOLT, SMALL FLANGE

95024-06045-00

$9.49

CLAMP

90465-16011-00

$4.41

BOLT(47X)

91312-05012-00

$4.29

PLATE

5XT-15113-00-00

Unavailable

CRANKCASE COVER ASSY 3

5XT-15430-00-00

$85.99

DAMPER 1

5XT-15316-00-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

COVER, CRANKCASE 2

5XT-15421-02-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

BOLT, FLANGE(4BH)

95024-06035-00

Unavailable

BOLT, SMALL FLANGE

95024-06050-00

Unavailable

BOLT, FLANGE(4EB)

95024-06055-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

PLUG, STRAIGHT SCREW

90340-20002-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable

COVER, GENERATOR

5XT-15415-00-00

Unavailable

BOLT, BUTTON

92014-06016-00

Unavailable

. O-RING

93210-74M68-00

Unavailable
