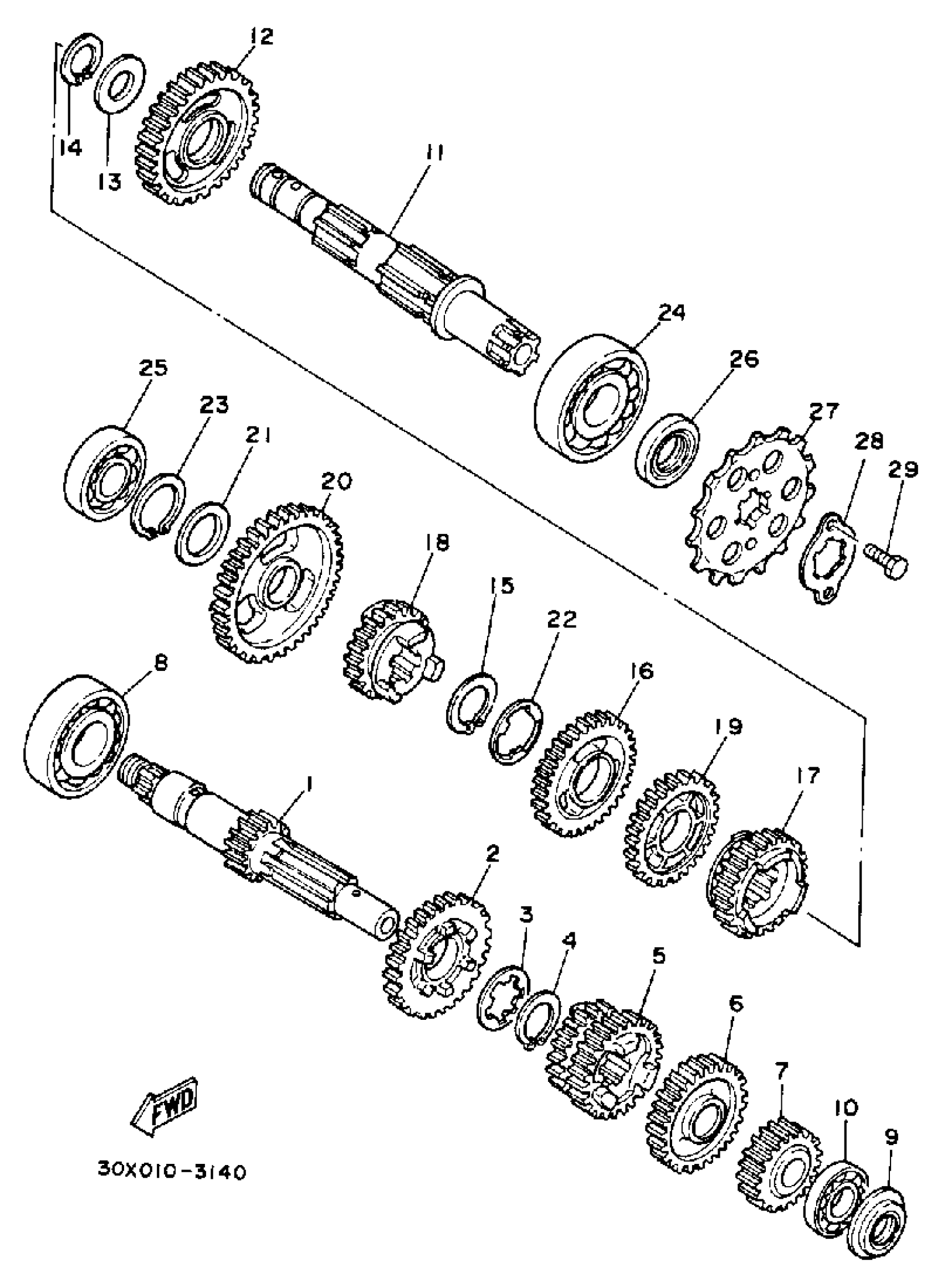

Yamaha XT250LC (XT250 CA) 1984 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

30X-17411-00-00

Unavailable

2

GEAR, 6TH PINION

(30X-17161-01-00)

Unavailable

3

WASHER (5H0)

90209-18208-00

$8.49

4

CIRCLIP (537)

93410-22039-00

$8.49

5

GEAR, 3RD PINION (22T-25T)

30X-17131-00-00

Unavailable

6

GEAR, 5TH PINION (27T)

30X-17151-00-00

Unavailable

7

GEAR, 2ND PINION

(30X-17121-00-00)

Unavailable

8

BEARING (30X)

93306-20447-00

$41.99

9

OIL SEAL (3Y1)

93101-17093-00

Unavailable

10

BEARING(2JN)

93306-00315-00

$33.99

11

DRIVE AXLE ASSEMBLY

30X-17402-00-00

Unavailable

12

UNAVAILABLE IN PRICE BOOK

[30-X1722-10-00

Unavailable

13

WASHER (30X)

90209-23241-00

Unavailable

14

CIRCLIP (30X)

93410-26067-00

$8.49

15

CIRCLIP (537)

93410-22039-00

$8.49

16

GEAR, 3RD WHEEL

30X-17231-00-00

Unavailable

17

GEAR, 5TH WHEEL

30X-17251-01-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

[30-X1726-10-00

Unavailable

19

GEAR, 4TH WHEEL

30X-17241-00-00

Unavailable

20

GEAR, 1ST WHEEL

30X-17211-00-00

Unavailable

21

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

22

WASHER (5H0)

90209-18208-00

$8.49

23

CIRCLIP (525)

93410-17037-00

Unavailable

24

BEARING (30X)

93306-20332-00

Unavailable

25

BEARING (30X)

93306-20447-00

$41.99

26

OIL SEAL, SD-TYPE

93102-22306-00

Unavailable

27

SPROCKET, DRIVE (30X-17461-50)

93833-15071-00

Unavailable

28

HOLDER, SPROCKET

30X-17456-00-00

Unavailable

29

BOLT(3JP)

97017-06010-00

Unavailable
