Description

Price

1

PEDAL, BRAKE

38M-27211-00-00

Unavailable

2

WASHER, PLATE (525)

90201-12541-00

$7.49

3

CIRCLIP (4V2)

93430-09038-00

$9.49

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

NUT(650)

95380-06700-00

$8.49

6

ROD, BRAKE

30X-27231-00-00

Unavailable

7

PIN, CLEVIS (24X)

90240-06103-00

$7.49

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, TENSION

90506-18289-00

$14.99

11

COVER, SPRING

1M1-27244-00-00

$6.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

STAND SIDE

55V-27311-02-00

Unavailable

16

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

17

LINK, SIDE STAND

42U-27315-01-00

Unavailable

18

BOLT

90109-10635-00

Unavailable

19

NUT, U

90185-10037-00

Unavailable

20

FRONT FOOTREST ASSEMBLY (LEFT)

30X-27410-00-90

Unavailable

21

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

22

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

25

FRT FOOTREST ASSEMBLY RASS''Y (R.H)

30X-27420-00-90

Unavailable

26

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

27

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

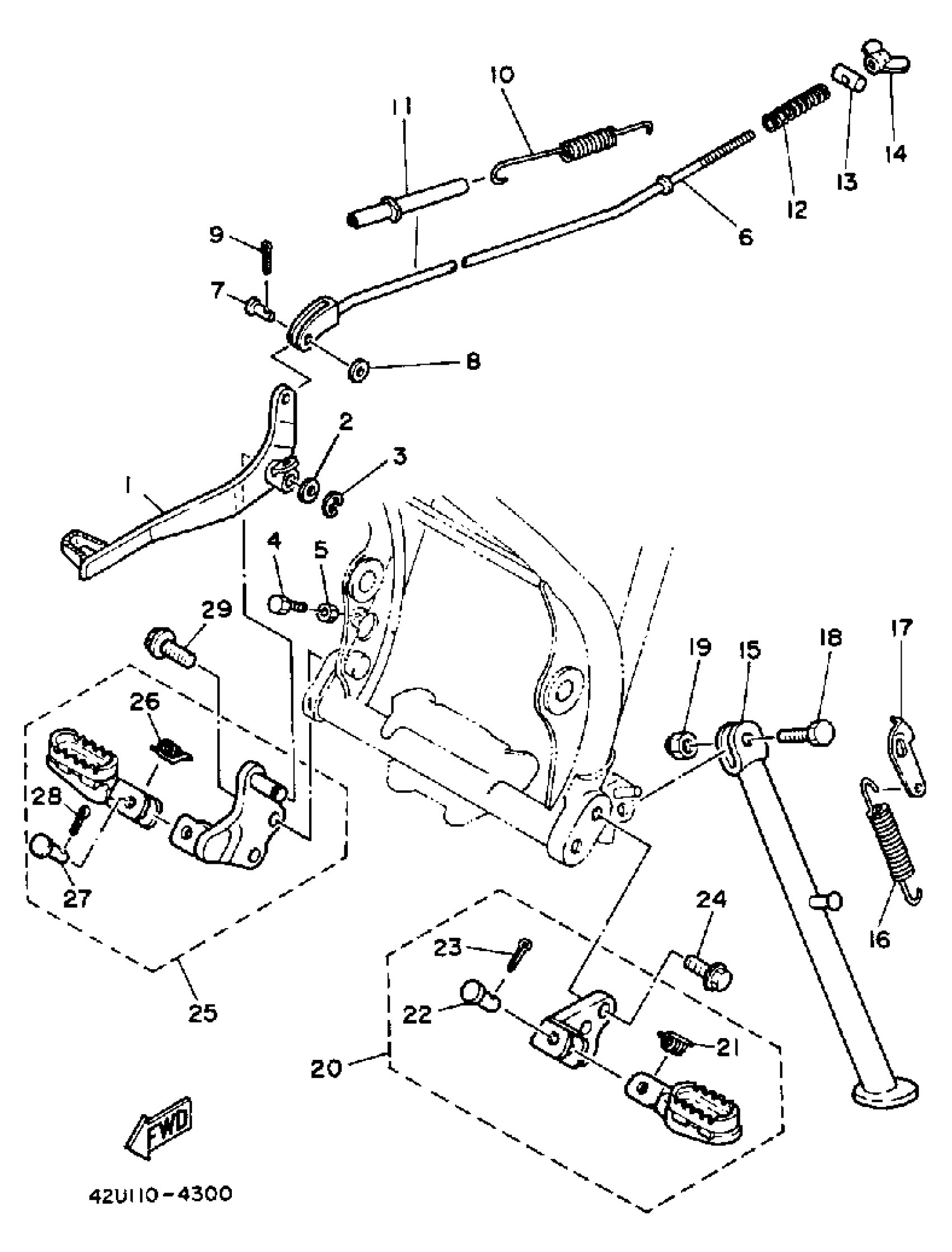

Yamaha XT250LC (XT250 CA) 1984 STAND - FOOTREST Diagram

PEDAL, BRAKE

WASHER, PLATE (525)

CIRCLIP (4V2)

BOLT, HEXAGON

NUT(650)

ROD, BRAKE

PIN, CLEVIS (24X)

YBS66-6 WASHER, PLAIN

PIN, COTTER

SPRING, TENSION

COVER, SPRING

SPRING, (180-27236-00)

PIN 1562723700

NUT (25K)

STAND SIDE

SPRING, MAIN STAND

LINK, SIDE STAND

BOLT

NUT, U

FRONT FOOTREST ASSEMBLY (LEFT)

SPRING, TORSION (214-27426-00)

PIN, CLEVIS (2A6)

PIN, COTTER

BOLT, FLANGE(8AB)

FRT FOOTREST ASSEMBLY RASS''Y (R.H)

SPRING, TORSION (214-27426-00)

PIN, CLEVIS (2A6)

PIN, COTTER

BOLT, FLANGE(8AB)
