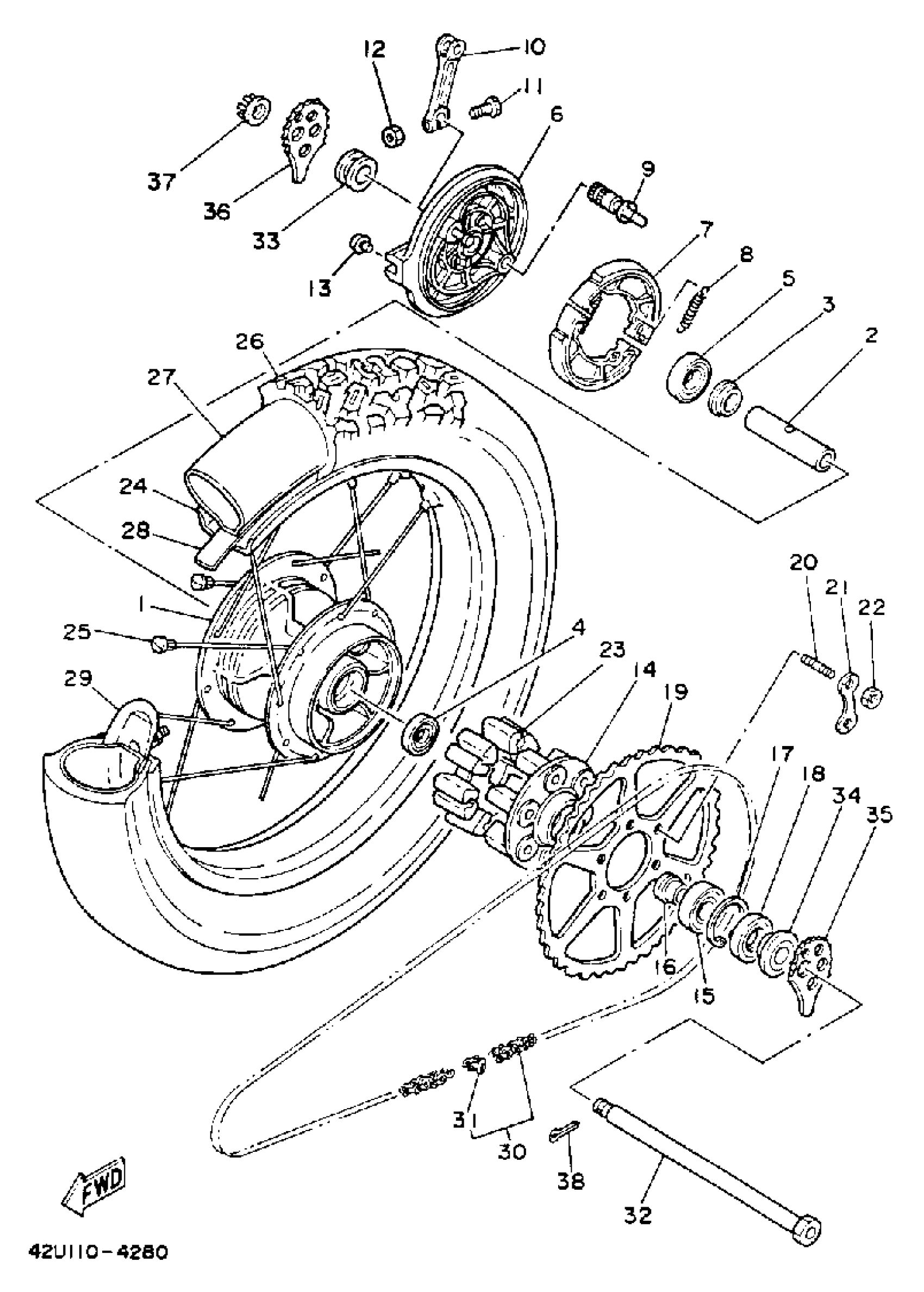

Yamaha XT250LC (XT250 CA) 1984 REAR WHEEL Diagram

HUB, REAR

3Y1-25311-00-98

Unavailable

SPACER

90560-17311-00

Unavailable

FLANGE, SPACER

146-25315-00-00

$7.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRAKE SHOE PLATE ASSEMBLY

3Y1-25026-00-98

Unavailable

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

4GL-25351-00-00

$68.99

LEVER, CAMSHAFT

3R6-25355-01-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95380-06600-00

Unavailable

GROMMET (397)

90480-10068-00

$8.49

CLUTCH, HUB

3Y1-25366-00-98

Unavailable

BEARING(1YW)

93306-20461-00

$39.99

COLLAR, WHEEL

3Y1-25377-00-00

Unavailable

CIRCLIP(48Y)

99009-47500-00

Unavailable

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

SPROCKET DRIVN 48T

30X-25448-50-00

Unavailable

BOLT, STUD (483)

90116-08218-00

Unavailable

AXLE, WHEEL

4KM-25181-10-00

Unavailable

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

NUT (3Y2)

90170-08258-00

Unavailable

DAMPER

3Y1-25364-00-00

Unavailable

RIM 2.15X18

94421-18328-00

Unavailable

SPOKE SET, REAR

4Y0-25304-00-00

Unavailable

410-18 TW16 (TT)

94141-187M2-00

Unavailable

TUBE (5A8)

94212-18188-00

Unavailable

BAND, RIM (2J4)

94340-18086-00

Unavailable

SPACER, BEAD

3Y1-25394-00-00

Unavailable

UNAVAILABLE IN PRICE BOOK

9Y580-40105-00

Unavailable

. JOINT, CHAIN (34L) (DID50HDS)

94680-50011-00

Unavailable

COLLAR(3SX)

90387-170X9-00

Unavailable

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

PULLER, CHAIN 2

3Y1-25389-00-00

Unavailable

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
