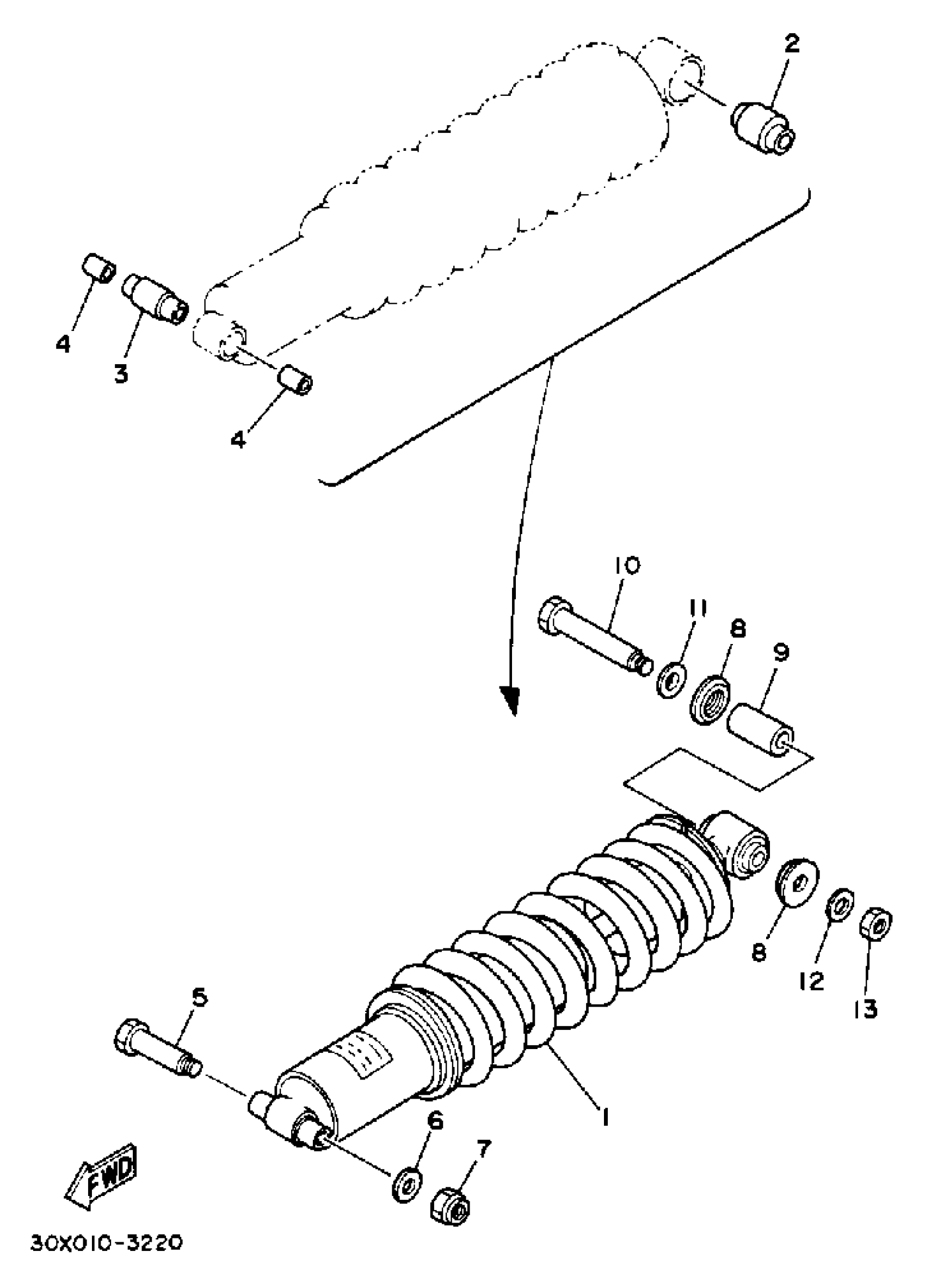

Yamaha XT250LC (XT250 CA) 1984 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASSEMBLY, REARREAR (38M-22210-00-6W)

30X-22210-00-6W

Unavailable

2

. BUSH, REAR SHOCK ABSORBER

30X-22216-00-00

Unavailable

3

. BUSH, SHOCK ABSORBER LOWER

30X-22226-00-00

Unavailable

4

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

$14.99

5

BOLT

90109-10753-00

Unavailable

6

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

7

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

8

COVER, THRUST 2

30X-22129-00-00

$20.99

9

COLLAR

90387-121J0-00

Unavailable

10

BOLT

90109-10753-00

Unavailable

11

WASHER, PLATE

90201-12027-00

$8.49

12

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

13

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60
