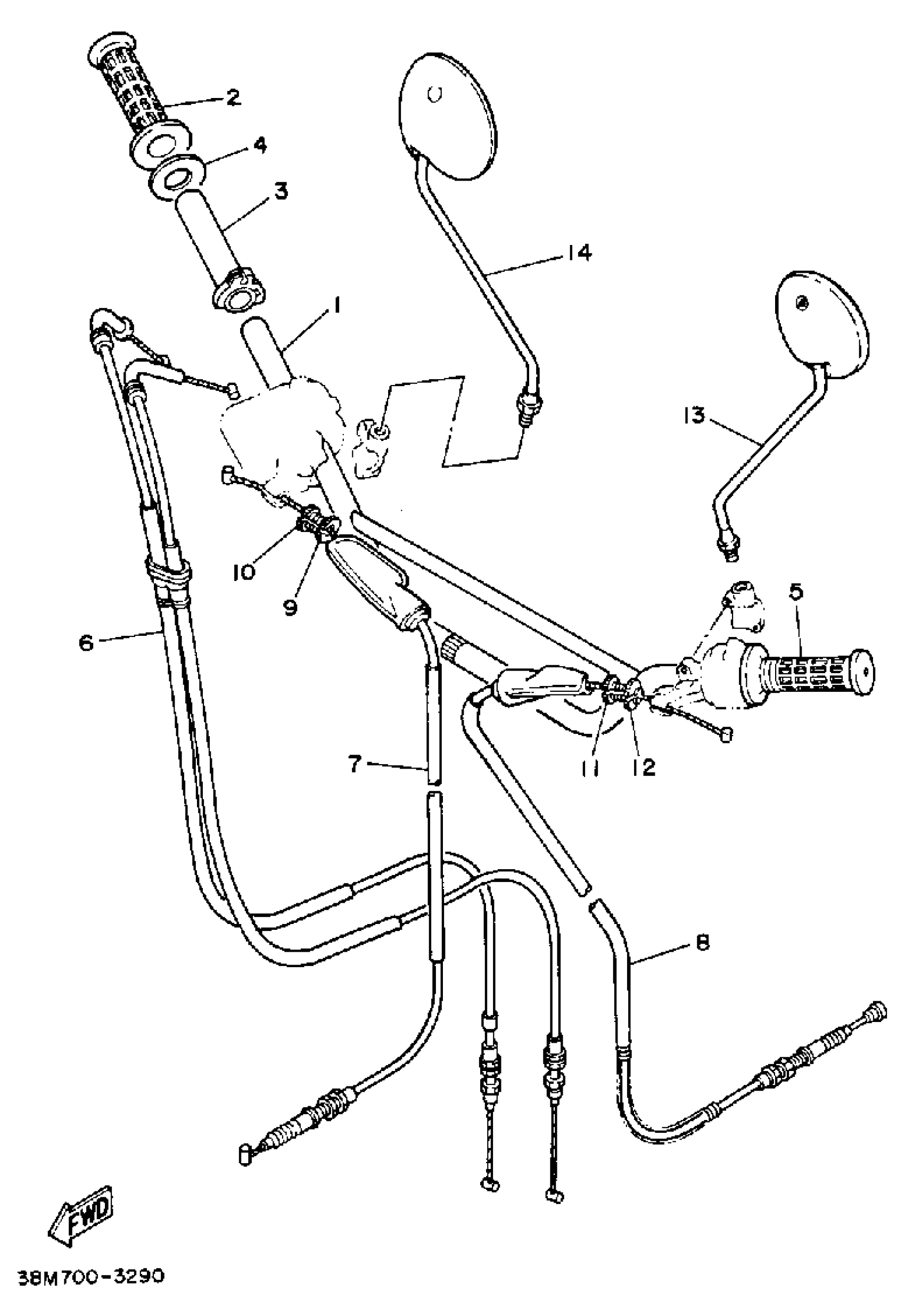

Yamaha XT250LC (XT250 CA) 1984 HANDLEBAR - CABLE Diagram

#

Description

Price

1

HANDLEBAR

1EU-26111-00-00

Unavailable

2

GRIP RH

33G-26242-01-00

Unavailable

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP

33G-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

30X-26302-01-00

Unavailable

7

CABLE, BRAKE

38M-26341-00-00

Unavailable

8

CABLE, CLUTCH

38M-26335-00-00

Unavailable

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

BOLT

90123-08002-00

$10.49

12

NUT

90179-08030-00

$5.49

13

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

14

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99
