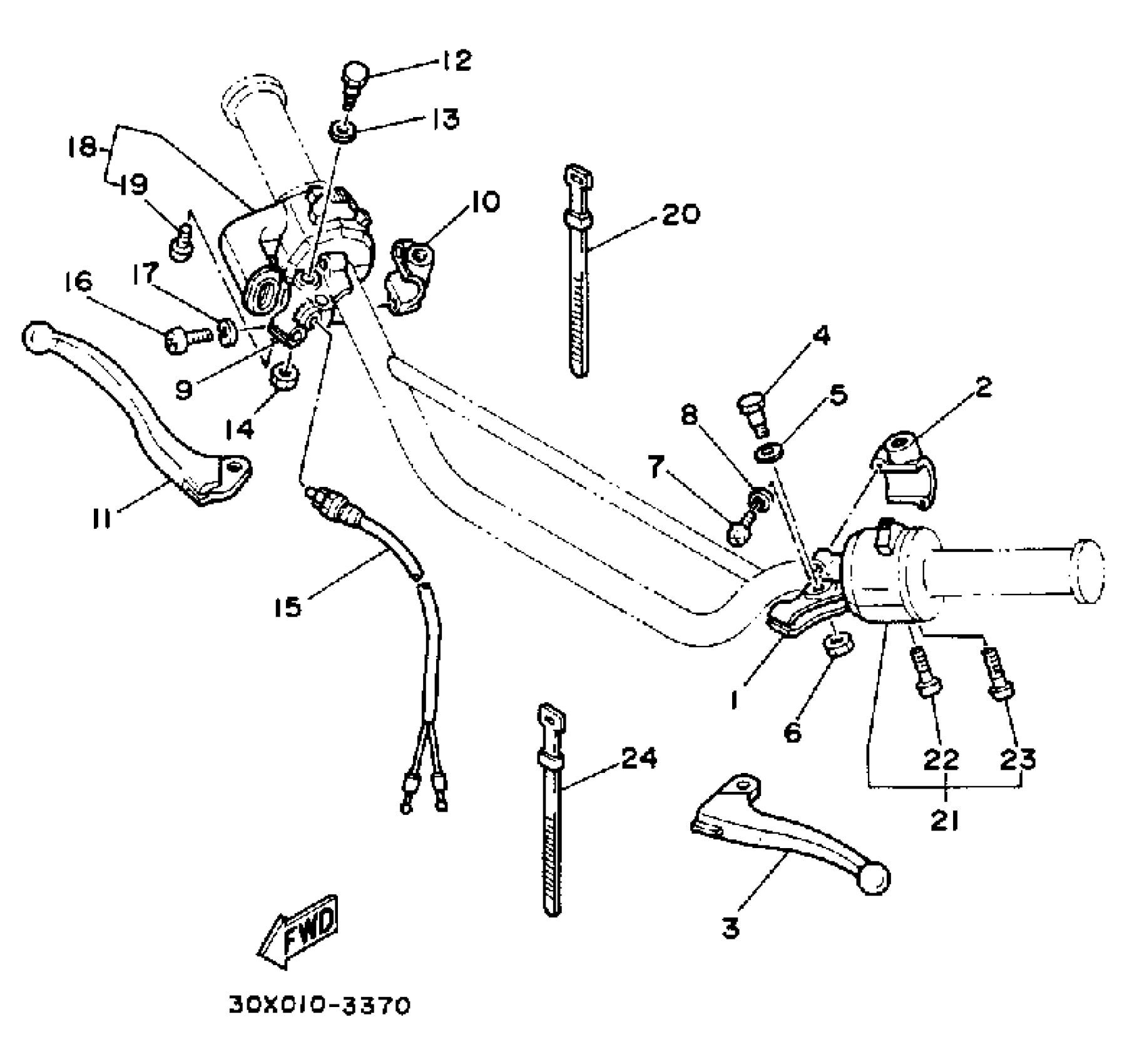

Yamaha XT250LC (XT250 CA) 1984 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

LEVER 1

3FY-83912-02-00

$28.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

HOLDER, LEVER 2

33G-82921-00-00

Unavailable

10

HOLDER, LEVER LOWER

33G-82923-01-00

Unavailable

11

LEVER 2

5Y1-83922-11-00

Unavailable

12

BOLT(3GB)

90109-061F3-00

$7.49

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

FRONT STOP SWITCH ASSY

1M1-83980-31-00

$27.99

16

SCREW, PAN HEAD

98517-05020-00

$4.25

17

WASHER(3SX)

92907-05100-00

$8.49

18

SWITCH, HANDLE 1

43F-83976-00-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

$4.25

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

SWITCH, HANDLE 3

21T-83973-01-00

Unavailable

22

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

23

SCREW, PAN HEAD

98517-05030-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable
