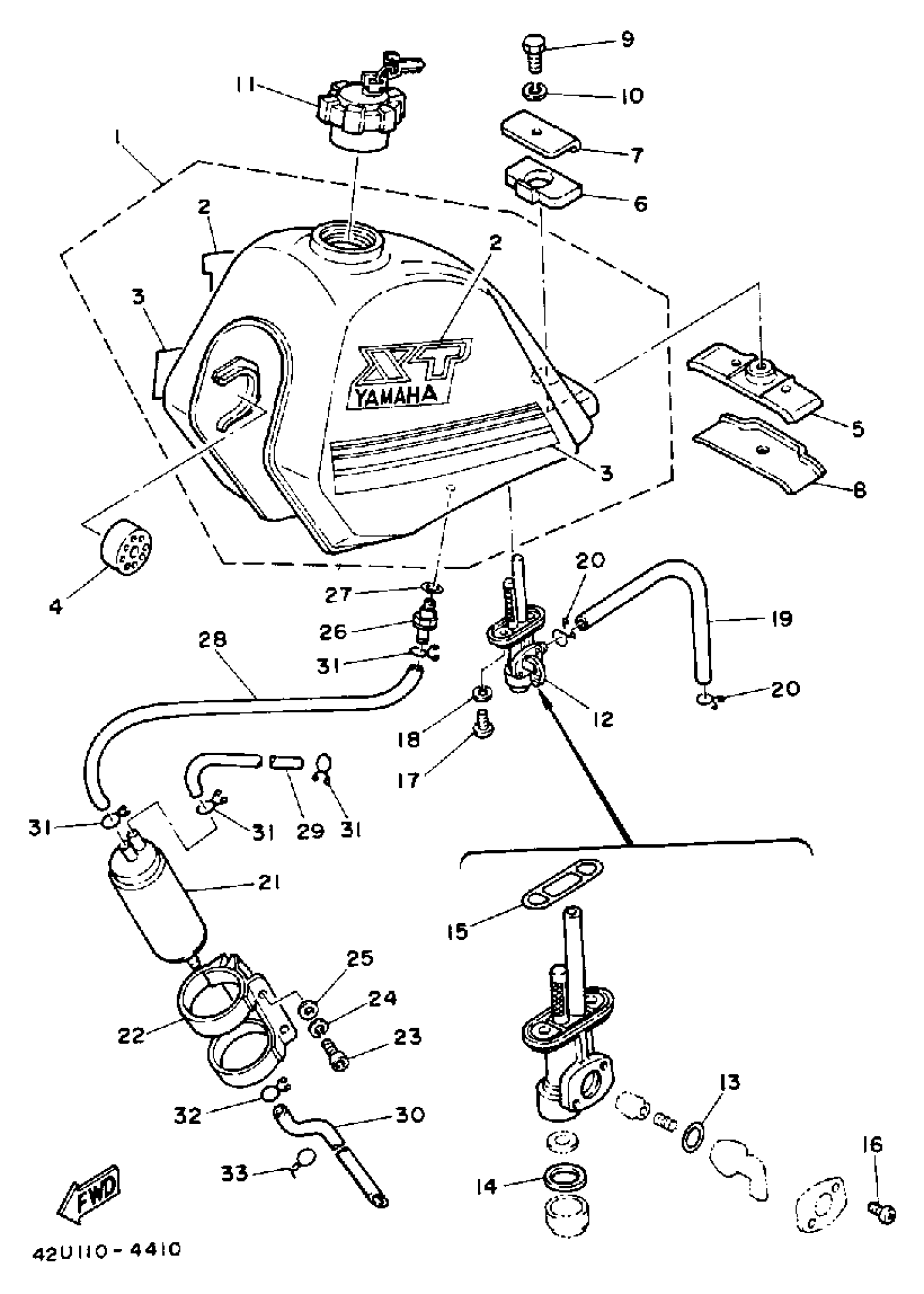

Yamaha XT250LC (XT250 CA) 1984 FUEL TANK XT250LC Diagram

#

Description
Price

1

FUEL TANK

43E-24110-00-06

Unavailable

2

. EMBLEM 1

42U-24161-01-00

Unavailable

3

. GRAPHIC SET

42U-24240-00-00

Unavailable

4

DAMPER, LOCATING 1

4L0-24181-00-00

$8.14

5

DAMPER, LOCATING 2

30X-24182-01-00

$18.12

6

DAMPER, LOCATING 3

30X-24183-01-00

$5.86

7

WASHER, SPECIAL

30X-24186-01-00

$6.29

8

WASHER, SPECIAL

30X-24187-00-00

$21.27

9

BOLT (661)

97013-06012-00

$4.40

10

WASHER, SPRING

92995-06100-00

$2.95

11

CAP ASSY

56R-24602-00-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$34.50

13

O-RING

4X8-24534-00-00

$10.74

14

GASKET

4X8-24565-10-00

Unavailable

15

O-RING

4X8-24512-00-00

$6.25

16

SCREW

4X8-24535-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable

21

CANISTER ASSEMBLY

20K-24170-00-00

Unavailable

22

CANISTER HOLDER

(43E-24190-00-00)

Unavailable

23

BOLT, HEXAGON

97017-08016-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable

26

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

27

O-RING (4G0)

93210-11453-00

Unavailable

28

UNAVAILABLE IN PRICE BOOK

43-E2431-40-00

Unavailable

29

PIPE, FUEL 1

4KN-24311-01-00

$14.99

30

UNAVAILABLE IN PRICE BOOK

43-E2431-60-00

Unavailable

31

CLIP

90467-090A2-00

Unavailable

32

CLIP(1JH)

90467-11106-00

Unavailable

33

CLAMP

90464-25267-00

Unavailable
