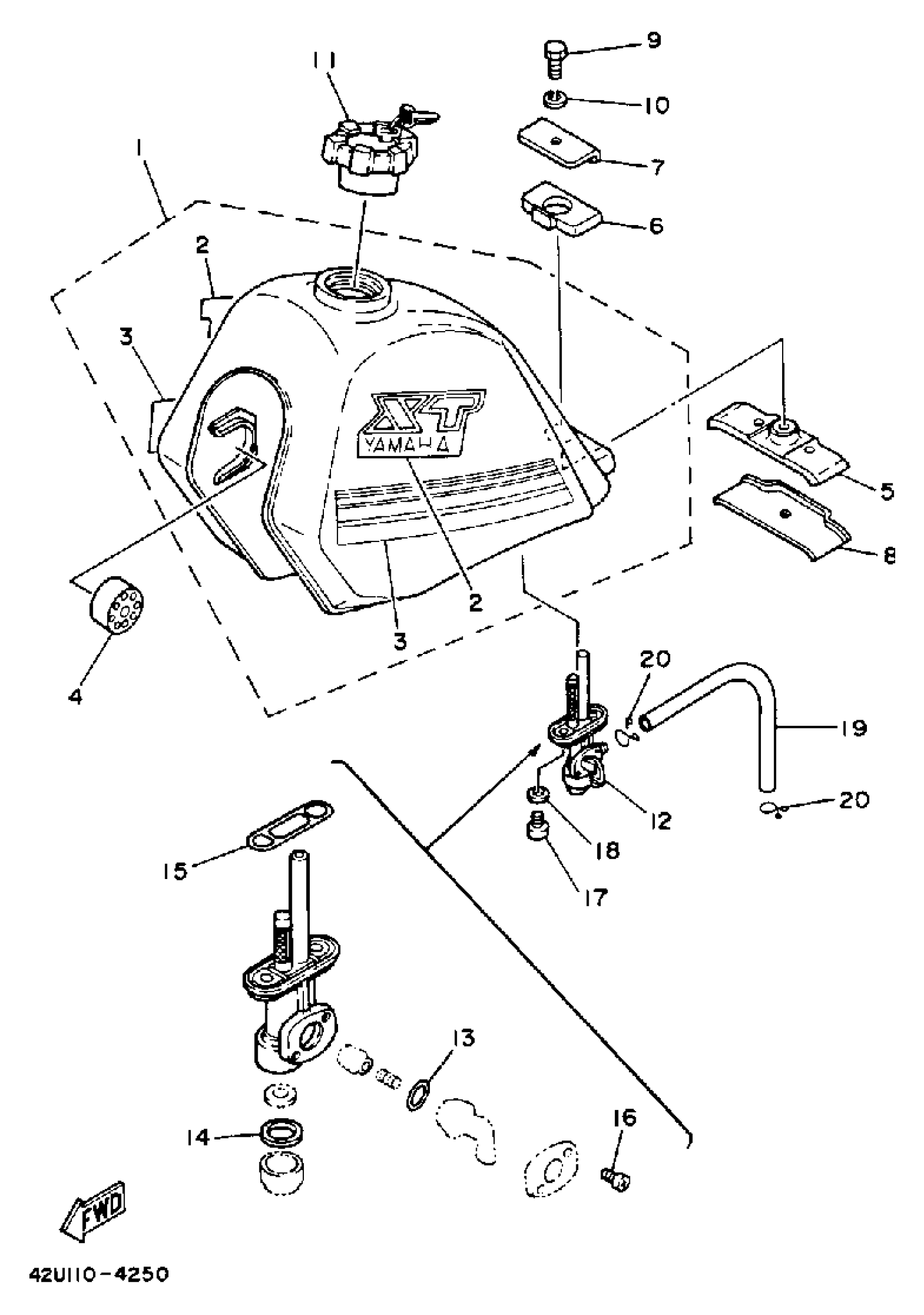

Yamaha XT250LC (XT250 CA) 1984 FUEL TANK XT250L Diagram

#

Description
Price

1

FUEL TANK

30X-24110-G0-07

Unavailable

2

. EMBLEM 1

42U-24161-01-00

Unavailable

3

. GRAPHIC SET

42U-24240-00-00

Unavailable

4

DAMPER, LOCATING 1

4L0-24181-00-00

$9.99

5

DAMPER, LOCATING 2

30X-24182-01-00

$20.99

6

DAMPER, LOCATING 3

30X-24183-01-00

$7.99

7

WASHER, SPECIAL

30X-24186-01-00

$7.99

8

WASHER, SPECIAL

30X-24187-00-00

$24.99

9

BOLT (661)

97013-06012-00

$5.60

10

WASHER, SPRING

92995-06100-00

Unavailable

11

CAP ASSY

48Y-24602-00-00

Unavailable

12

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

13

O-RING

4X8-24534-00-00

$13.49

14

GASKET

4X8-24565-10-00

$6.99

15

O-RING

4X8-24512-00-00

$8.99

16

SCREW

4X8-24535-00-00

Unavailable

17

SCREW 256241430000

90149-06011-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

HOSE (L200)

90445-10752-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable
