1984 Yamaha XT250 CA (XT250LC) Front Wheel Diagram

← All diagrams

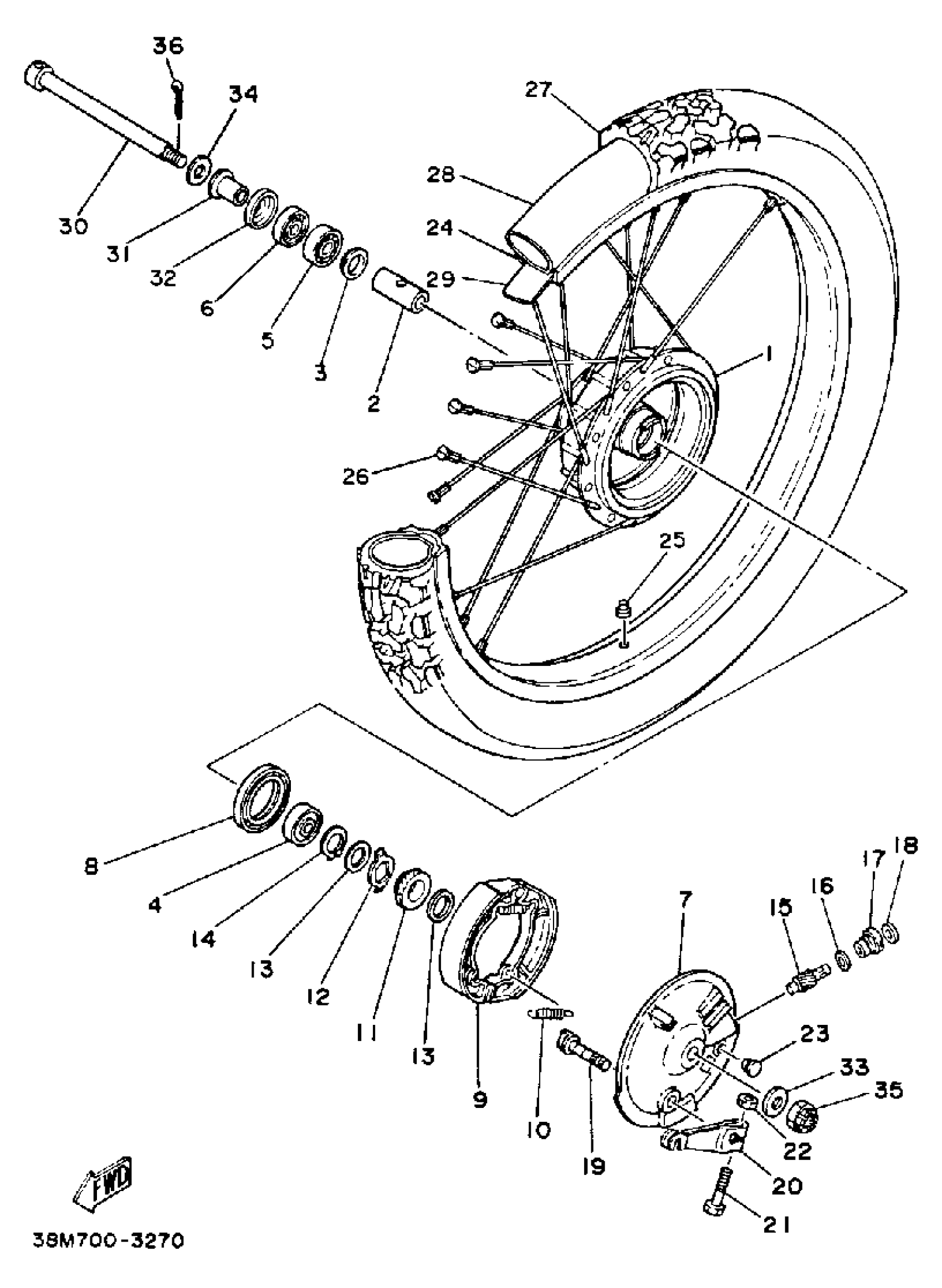

Find the part on the Front Wheel diagram for your 1984 Yamaha XT250 CA (XT250LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT250 CA (XT250LC) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

3Y1-25111-00-98

1
Out of stock

2

SPACER(1EE)

90560-15293-00

—
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1
Out of stock

5

BEARING

93306-20205-00

1
Out of stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1
Out of stock

7

. PLATE, BRAKE SHOE

3Y1-25121-01-98

1
Out of stock

8

SEAL,OIL

93105-47007-00

1
Out of stock

9

BRAKE SHOE KIT

3KG-W253E-00-00

—
Out of stock

10

SPRING (5T9)

90506-17328-00

—
Out of stock

11

GEAR, DRIVE

308-25135-00-00

1
Out of stock

12

CLUTCH, METER

214-25149-01-00

1
Out of stock

13

WASHER PLATE 214251470000

90201-22283-00

1
Out of stock

14

CIRCLIP(1EY)

99009-22400-00

1
Out of stock

15

GEAR, METER

308-25138-00-00

1
Out of stock

16

WASHER, PLATE 1832514600

90201-07076-00

—
Out of stock

17

BUSHING

109-25136-00-00

—
Out of stock

18

OIL SEAL (7X14X4-136)

93104-07003-00

—
Out of stock

19

CAMSHAFT

4GL-25351-00-00

—
Out of stock

20

LEVER, CAMSHAFT 1

3Y1-25155-01-00

1
Out of stock

21

BOLT, HEXAGON (538)

90101-06278-00

—
Out of stock

22

NUT, HEXAGON

95380-06600-00

1
Out of stock

23

GROMMET (397)

90480-10068-00

—
Out of stock

24

RIM 1.60X21

94416-21326-00

1
Out of stock

25

GROMMET (397)

90480-10068-00

—
Out of stock

26

SPOKE SET, FRONT

3Y1-25104-00-00

1
Out of stock

27

300-21 TW15 (TT)

(94130-217M3-00)

1
Out of stock

28

TUBE, FRONT (2A6)

94227-21123-00

—
Out of stock

29

BAND, RIM (2A6)

94330-21084-00

—
Out of stock

30

AXLE, WHEEL

30X-25181-00-00

1
Out of stock

31

COLLAR (1W1)

90387-15600-00

—
Out of stock

32

COVER, HUB DUST

322-25118-00-00

—
Out of stock

33

WASHER, PLATE(33Y)

90201-164H4-00

—
Out of stock

34

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

35

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

36

PIN, COTTER

91490-30030-00

—
Out of stock
