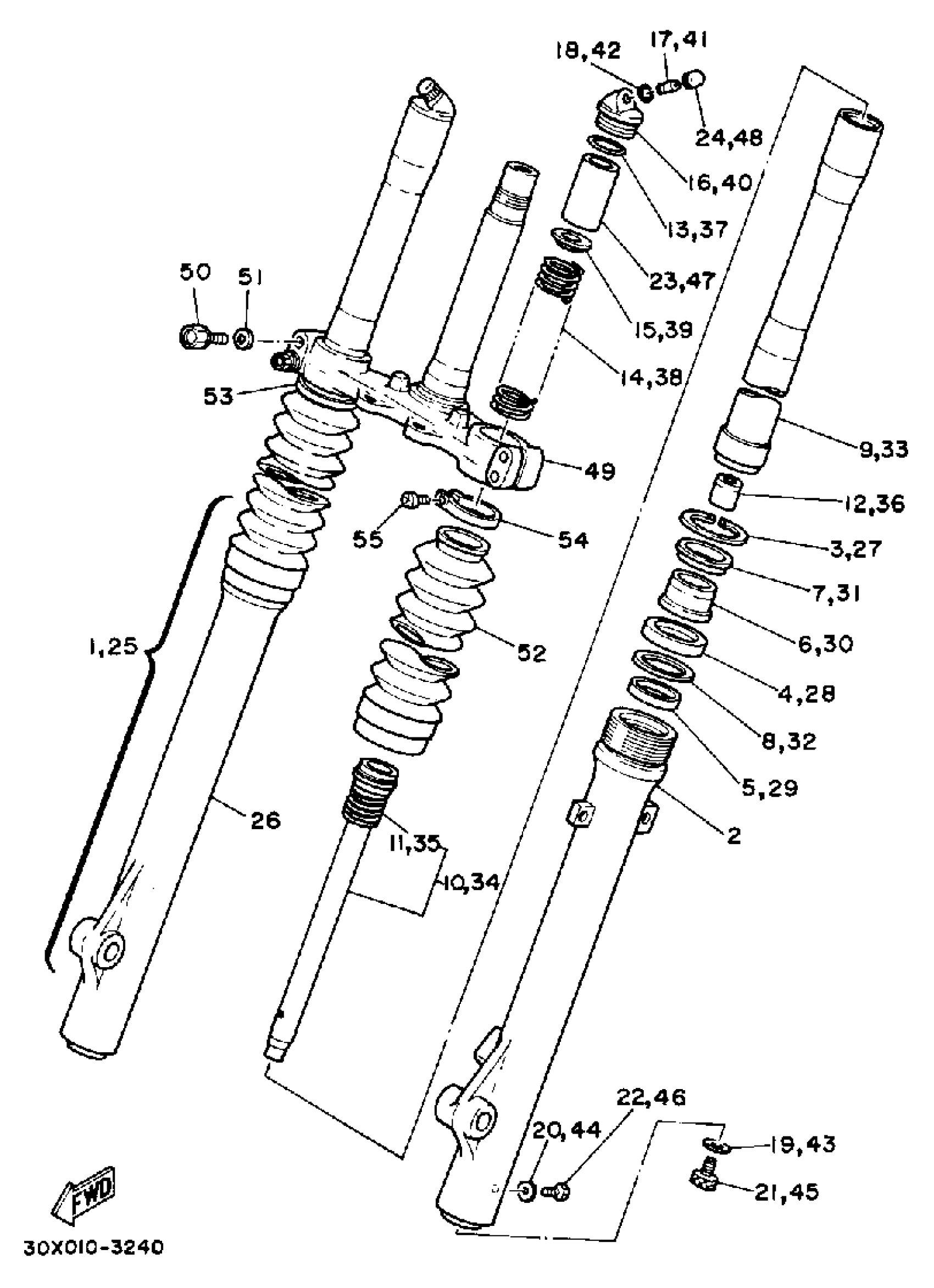

Find the part on the Front Fork diagram for your 1984 Yamaha XT250 CA (XT250LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT250 CA (XT250LC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY L

(42U-23102-00-00)

1
Out of stock

2

TUBE, OUTER 1

(30X-23126-00-38)

1
Out of stock

3

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

4

OIL SEAL

48Y-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

6

. SEAL, DUST

509-23144-L0-00

1
Out of stock

7

. COVER, DUST SEAL

3R8-23148-L0-00

1
Out of stock

8

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

9

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

10

CYLINDER, FRTFRK

(30X-23170-00-00)

1
Out of stock

11

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

12

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

13

O-RING

1W1-23114-L0-00

1
Out of stock

14

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

15

SPRING, FRONT FORK

(1W1-23141-L0-00)

1
Out of stock

16

. BOLT, CAP

33M-23111-00-00

1
Out of stock

17

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

18

O-RING

3J2-23147-00-00

—
Out of stock

19

GASKET

509-23158-L0-00

—

$14.34

In stock

20

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

21

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

22

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

23

SPACER

4V5-23118-L1-00

1
Out of stock

24

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

25

FRONT FORK ASSEMBLY R

(42U-23103-00-00)

1
Out of stock

26

. TUBE, OUTER 2

30X-23136-00-38

1
Out of stock

27

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

28

OIL SEAL

48Y-23145-00-00

1
Out of stock

29

METAL, SLIDE 1

30X-23125-00-00

1
Out of stock

30

. SEAL, DUST

509-23144-L0-00

1
Out of stock

31

. COVER, DUST SEAL

3R8-23148-L0-00

1
Out of stock

32

WASHER, SPRING UPPER

5K5-23149-00-00

1

$7.42

In stock

33

. INNER TUBE COMP1

30X-23110-00-00

1
Out of stock

34

CYLINDER, FRTFRK

(30X-23170-00-00)

1
Out of stock

35

.. SPRING, REBOUND

2X7-23151-00-00

1
Out of stock

36

. SPINDLE, TAPER

39K-23173-00-00

1
Out of stock

37

O-RING

1W1-23114-L0-00

1
Out of stock

38

. SPRING, FRONT FORK

30X-23141-00-00

1
Out of stock

39

. SEAT, SPRING UPPER

1W1-23142-L0-00

1
Out of stock

40

. BOLT, CAP

33M-23111-00-00

1
Out of stock

41

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

42

O-RING

3J2-23147-00-00

—
Out of stock

43

GASKET

509-23158-L0-00

—

$14.34

In stock

44

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

45

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

46

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

47

SPACER

4V5-23118-L1-00

1
Out of stock

48

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

49

UNDER BRACKET

30X-23340-00-39

1
Out of stock

50

BOLT, AXLE HOLDER

5X6-23128-L0-00

1
Out of stock

51

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

52

BOOT, FRONT FORK

30X-23191-00-00

1
Out of stock

53

BAND, BOOT

341-92090-60-00

—
Out of stock

54

. BAND

48Y-23192-00-00

1
Out of stock

55

SCREW, BOOT BAND

1W4-23194-L0-00

—

$6.43

In stock
