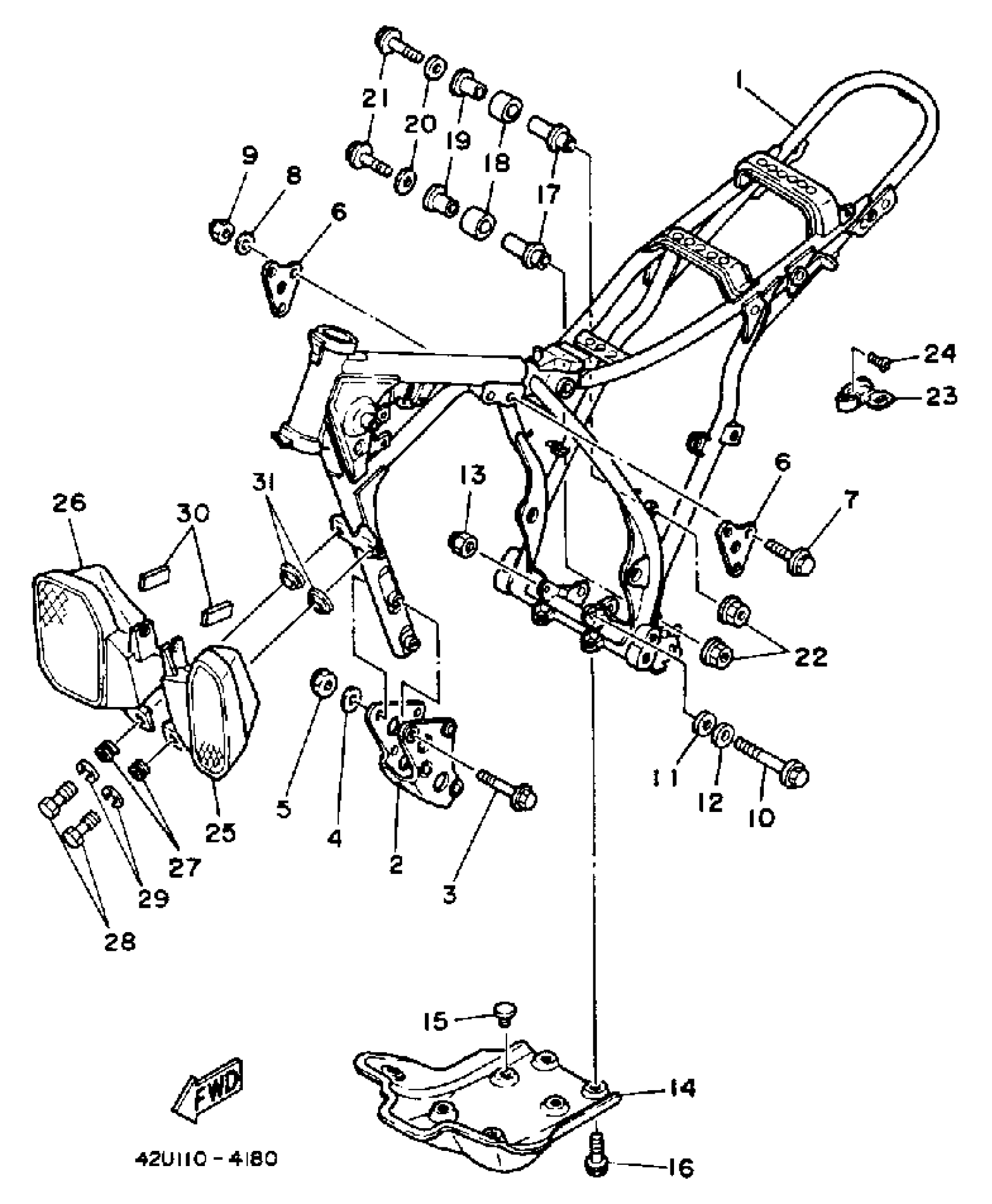

Yamaha XT250LC (XT250 CA) 1984 FRAME XT250L Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[42-U2111-00-0F

Unavailable

2

STAY, ENGINE 3

30X-21316-00-FH

Unavailable

3

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

4

WASHER, PLATE (33N)

90201-094G1-00

$9.49

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

STAY, ENGINE 2

30X-21315-00-00

Unavailable

7

BOLT, FLANGE

95817-08060-00

$3.76

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

10

BOLT (1W1)

90105-08099-00

$5.60

11

WASHER, PLATE (33N)

90201-094G1-00

$9.49

12

WASHER, BELLEVILLE

92907-08800-00

Unavailable

13

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

14

PROTECTOR, ENGINE (30X-21471-00)

30X-21471-09-00

Unavailable

15

STOPPER

30X-24768-00-00

$5.49

16

BOLT, WITH WASHER

90119-06242-00

Unavailable

17

SHAFT

2K7-2148A-00-00

Unavailable

18

TENSIONER

30X-22178-00-00

Unavailable

19

BUSH

10V-22184-00-00

Unavailable

20

WASHER 1902345600

90201-08310-00

Unavailable

21

BOLT, FLANGE

95817-08050-00

Unavailable

22

NUT, U

95617-08100-00

Unavailable

23

HELMET HANGER ASSY

5H0-21308-01-00

Unavailable

24

SCREW, OVAL HEAD

98603-06018-00

Unavailable

25

SCOOP, AIR 1

30X-2137W-01-00

Unavailable

26

SCOOP, AIR 2

30X-2137X-01-00

Unavailable

27

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

28

BOLT, HEXAGON

97017-06016-00

Unavailable

29

WASHER, SPRING

92907-06100-00

Unavailable

30

DAMPER, PLATE

90520-05025-00

Unavailable

31

WASHER (3R8)

90209-06187-00

Unavailable
