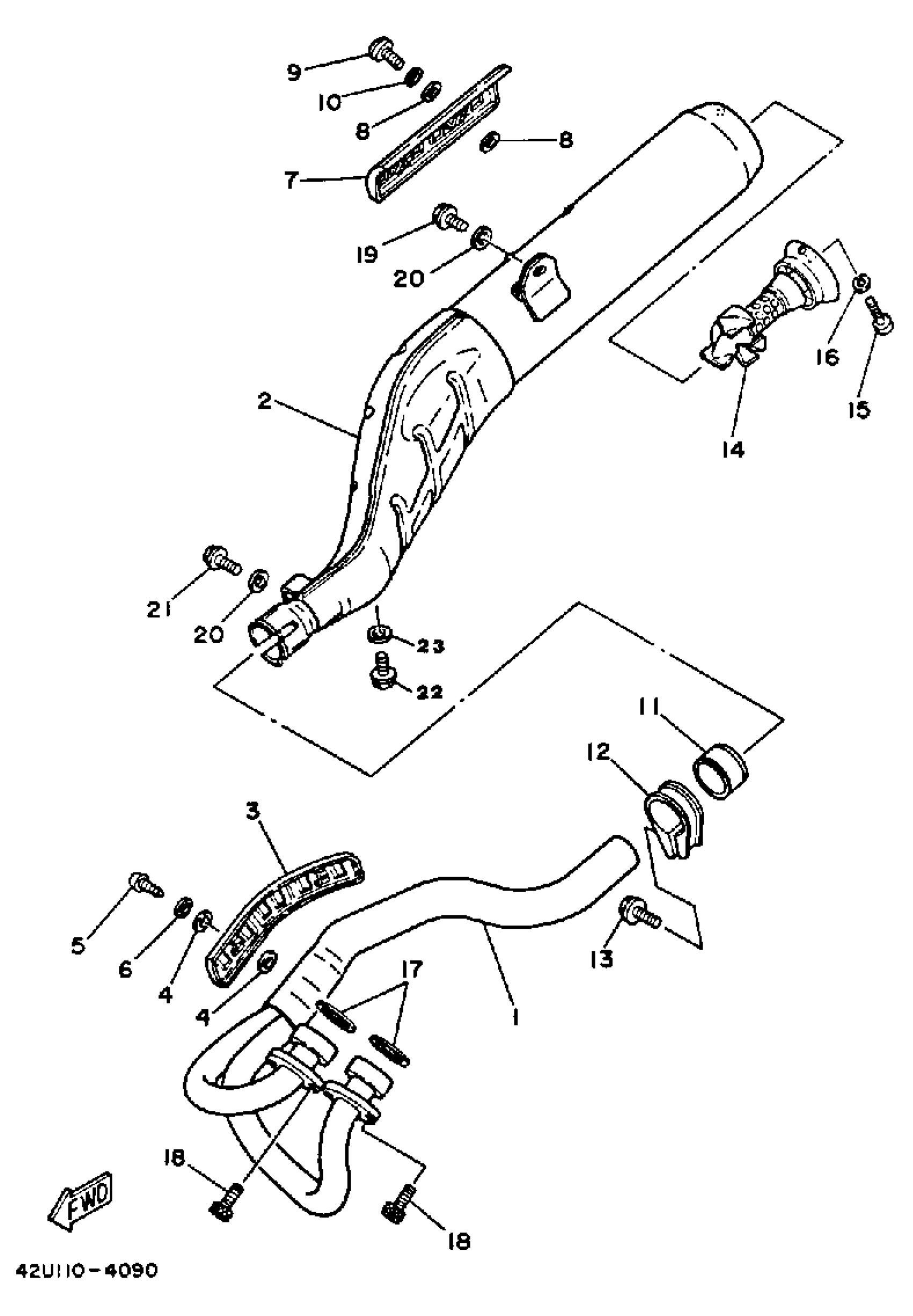

Yamaha XT250LC (XT250 CA) 1984 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

30X-14611-00-00

Unavailable

2

MUFFLER 1

2GK-14711-01-00

Unavailable

3

PROTECTOR, EXHAUST PIPE

55V-14628-00-00

Unavailable

4

WASHER, PROTECTOR

30X-14766-00-00

Unavailable

5

SCREW, TAPPING (30X)

90164-06017-00

$8.49

6

WASHER, WAVE(3RW)

90206-06090-00

$8.49

7

PROTECTER, MUFF 2

(30X-14728-00-00)

Unavailable

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW, BINDING

98907-06010-00

$1.65

10

WASHER, WAVE(3RW)

90206-06090-00

$8.49

11

GASKET, MUFFLER

3EG-14714-00-00

$72.99

12

BAND, MUFFLER

30X-14715-00-00

Unavailable

13

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

14

PIPE, OUTLET

42U-14752-00-00

Unavailable

15

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

GASKET, EXHAUST PIPE

4BR-14613-00-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

Unavailable

20

WASHER (853)

90201-08326-00

Unavailable

21

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

22

BOLT (11T)

90101-06576-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable
