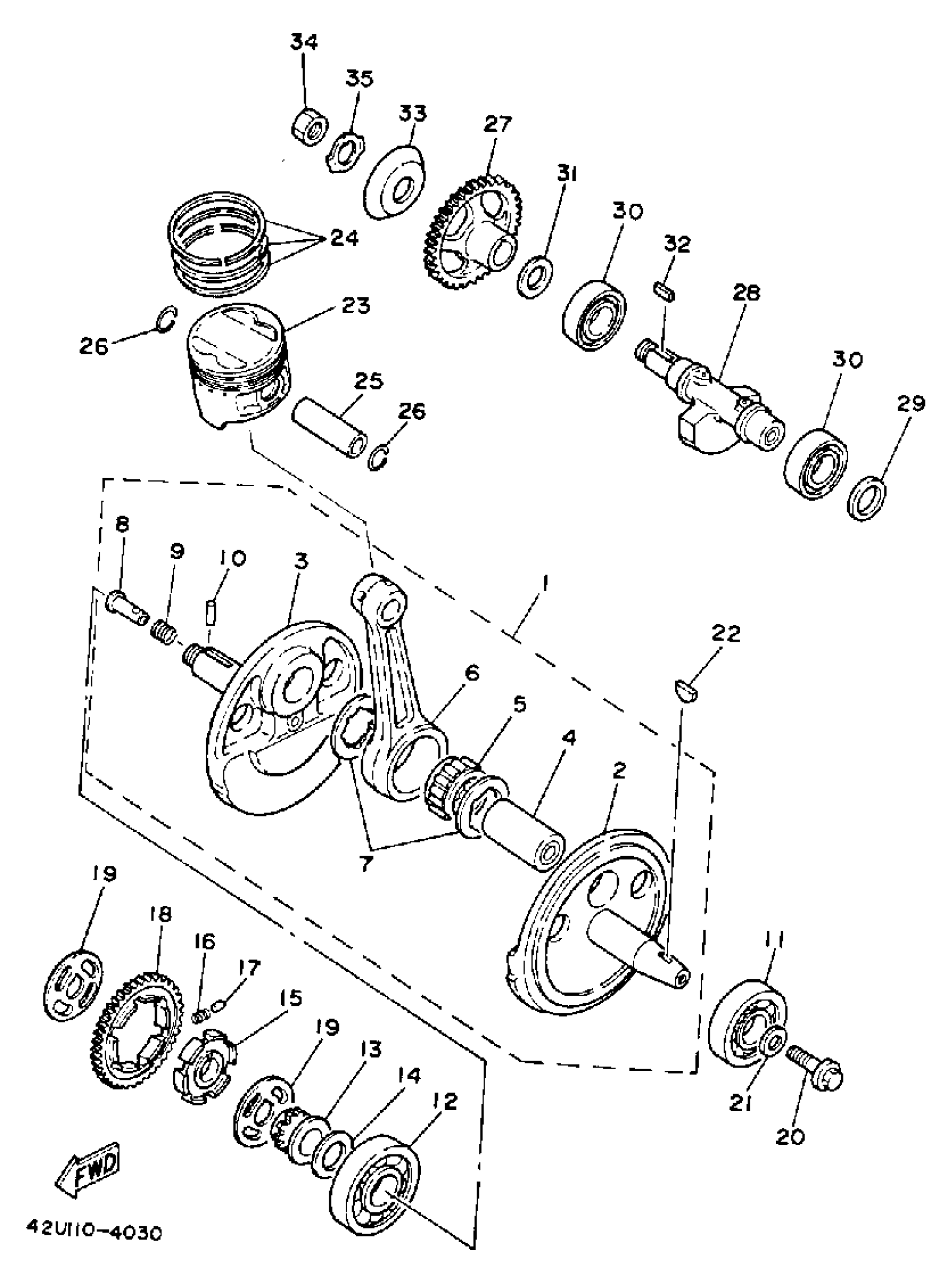

Yamaha XT250LC (XT250 CA) 1984 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

30X-11400-00-00

Unavailable

2

CRANK 1

(30X-11412-00-00)

Unavailable

3

CRANK 2

(30X-11422-00-00)

Unavailable

4

PIN, CRANK 1

30X-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL(2JN)

93310-633T5-00

$68.99

6

. ROD, CONNECTING

30X-11651-01-00

Unavailable

7

WASHER (30X)

90209-33253-00

$16.99

8

PIN, CLEVIS(30X)

90240-07105-00

$16.99

9

SPRING, COMPRESSION (5H0)

90501-07629-00

$9.49

10

PIN, DOWEL (5H0)

93602-13177-00

$3.76

11

BEARING(3RR)

93306-30560-00

Unavailable

12

BEARING(3KW)

93306-30630-00

$73.99

13

SPROCKET, CAM CHAIN

30X-11549-00-00

Unavailable

14

WASHER

90209-23242-00

Unavailable

15

BOSS, BUFFER

30X-11496-00-00

Unavailable

16

SPRING COMPRESSION341114880000

90501-21133-00

Unavailable

17

PIN, DOWEL

93605-10090-00

Unavailable

18

GEAR, BALANCE WT

51Y-11531-00-00

Unavailable

19

WASHER, BEARING COVER

30X-11565-00-00

Unavailable

20

BOLT (30X)

90105-10290-00

Unavailable

21

WASHER, PLATE(52H)

90201-102J5-00

Unavailable

22

KEY, WOODRUFF

90280-05001-00

Unavailable

23

PISTON STD

30X-11631-01-Y0

Unavailable

23

PISTON 2 O/S 0.50

30X-11636-01-00

Unavailable

23

PISTON 4 O/S 1.00

30X-11638-01-00

Unavailable

24

PISTON RING SET

30X-11610-00-00

Unavailable

24

PISTON RING SET

30X-11610-20-00

Unavailable

24

PISTON RING SET

30X-11610-40-00

Unavailable

25

PIN, PISTON

30X-11633-03-00

Unavailable

26

CIRCLIP (2F1)

93450-19052-00

Unavailable

27

GEAR, DRIVE

51Y-11536-00-00

Unavailable

28

WEIGHT 1

(30X-11454-00-00)

Unavailable

29

OIL SEAL (5Y1)

93101-25106-00

Unavailable

30

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

31

WASHER, PLATE (30X)

90201-207G6-00

Unavailable

32

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

33

PLATE, BREATHER 2

34K-11145-00-00

Unavailable

34

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

35

WASHER, LOCK (30X)

90215-16221-00

Unavailable
