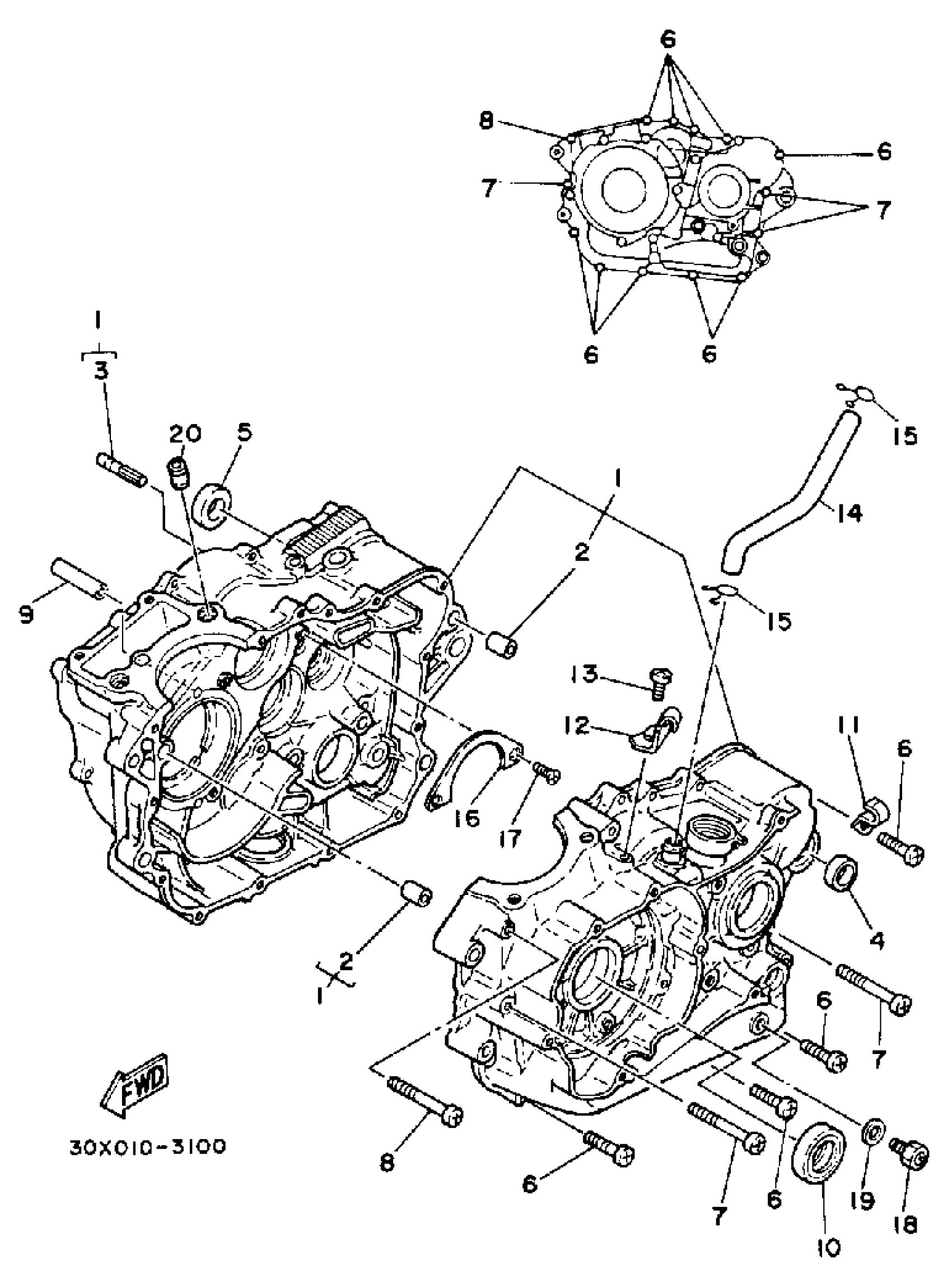

Yamaha XT250LC (XT250 CA) 1984 CRANKCASE XT250LC Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

30X-15100-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

STOPPER

(30X-15668-00-00)

Unavailable

4

COLLAR

90387-17009-00

$15.99

5

COLLAR (30X)

90387-172J0-00

Unavailable

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06060-00

$7.99

8

SCREW, PAN HEAD

98507-06070-00

$9.99

9

TUBE, PIPING

90441-06004-00

Unavailable

10

OIL SEAL (30X)

93102-25305-00

$14.99

11

CLAMP(51Y)

90465-08277-00

Unavailable

12

HOLDER, CLUTCH CABLE

51Y-15441-00-00

Unavailable

13

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

14

UNAVAILABLE IN PRICE BOOK

[43-E1116-60-00

Unavailable

15

CLIP (371)

90467-14015-00

$8.49

16

PLATE, BEARING COVER

30X-15383-00-00

Unavailable

17

SCREW, FLAT

98707-06014-00

Unavailable

18

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

19

GASKET

214-11198-01-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable
