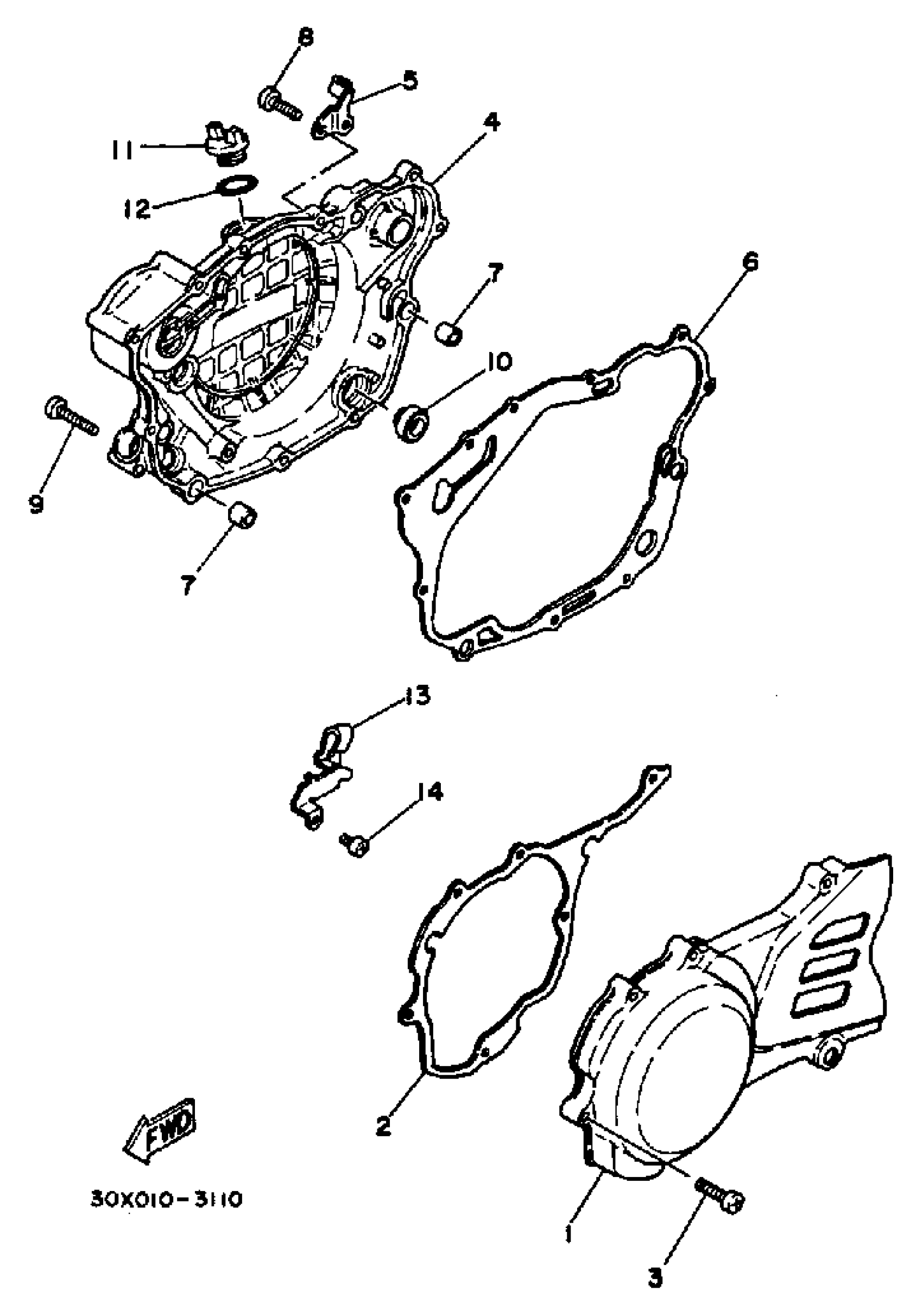

Yamaha XT250LC (XT250 CA) 1984 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE LH

30X-15411-01-00

Unavailable

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

$25.99

SCREW, PAN

98517-06030-00

Unavailable

COVER, CRANKCASE R. (30X-15421-00)

30X-15421-01-00

Unavailable

HOLDER

30X-15378-00-00

Unavailable

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

$24.99

PIN, DOWEL

99530-12016-00

$4.89

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

SCREW, PAN

98507-06035-00

$8.49

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

CLAMP

90462-08062-00

Unavailable

SCREW, PAN

98517-06012-00

$3.78
