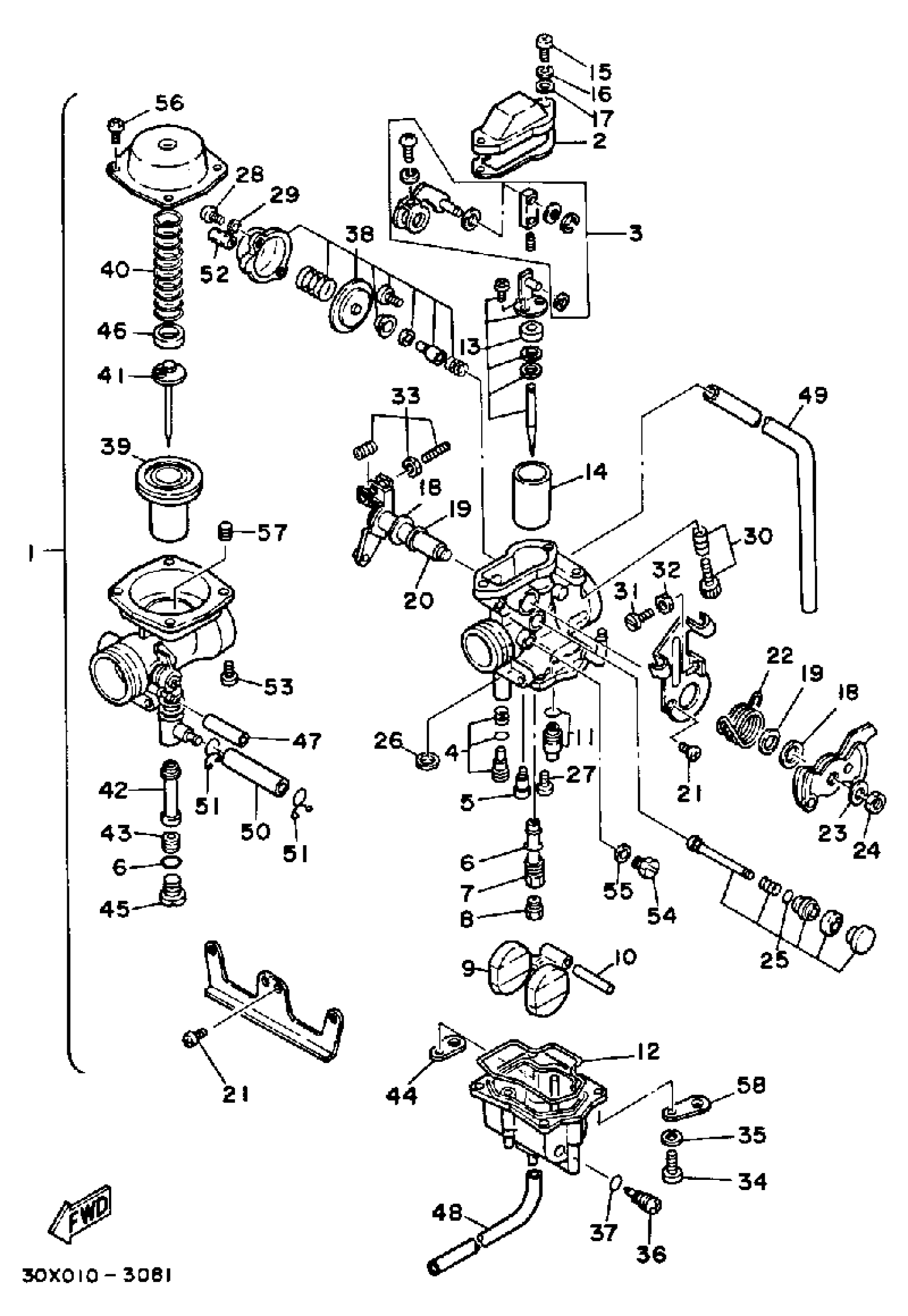

Yamaha XT250LC (XT250 CA) 1984 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1 (42U-14301-00)

42U-14301-02-00

Unavailable

1

UNAVAILABLE IN PRICE BOOK

[43-E1430-10-00

Unavailable

2

GASKET

30X-14198-00-00

$16.49

3

BRACKET 1

1LN-14291-00-00

Unavailable

4

PILOT SCREW SET

51Y-14105-00-00

$12.99

5

. JET, PILOT #38

30X-14342-19-00

Unavailable

6

GASKET

360-24512-00-00

$9.99

7

. NOZZLE, MAIN

30X-14341-00-00

Unavailable

8

JET, MAIN (# 130)

288-14343-65-00

$10.99

9

FLOAT

5Y1-14385-00-00

$89.99

10

. PIN, FLOAT

6E5-14386-01-00

Unavailable

11

NEEDLE VALVE SET

1JK-14107-01-00

$39.99

12

GASKET, FLOAT CHAMBER

30X-14384-00-00

$25.99

13

. NEEDLE SET

42U-1490J-10-00

Unavailable

14

VALVE, THROTTLE 1

(30X-14312-25-00)

Unavailable

15

SCREW, PAN HEAD

98517-04016-00

Unavailable

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

17

WASHER, PLAIN (646)

92990-04600-00

Unavailable

18

. WASHER, PLAIN

5Y1-14357-00-00

Unavailable

19

O-RING

5Y1-14572-00-00

Unavailable

20

. THROTTLE SHAFT ASSEMBLYASSY

2NV-14930-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

. SPRING, THROTTLE VALVE

30X-14131-00-00

Unavailable

23

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

24

. NUT

5Y1-14358-00-00

Unavailable

25

PLUNGER, STARTER

15A-14371-01-00

Unavailable

26

GASKET

5Y1-14536-00-00

Unavailable

27

SCREW, BIND(6L2)

98980-04006-00

Unavailable

28

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

29

WASHER, PLAIN (646)

92990-04600-00

Unavailable

30

. THROTTLE SCREW SET

3WP-14103-00-00

Unavailable

31

. SCREW

30X-14216-00-00

Unavailable

32

NUT

30X-14358-00-00

Unavailable

33

. STOP SCREW SET

30X-1490K-00-00

Unavailable

34

SCREW, PAN HEAD

98511-04012-00

Unavailable

35

WASHER, PLAIN (646)

92990-04600-00

Unavailable

36

PLUG, SCREW

5Y1-14115-00-00

Unavailable

37

O-RING

5Y1-14397-00-00

Unavailable

38

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable

39

. VALVE ASSEMBLY

30X-14340-01-00

Unavailable

40

. SPRING

30X-14286-00-00

Unavailable

41

. NEEDLE SET

42U-1490J-00-00

Unavailable

42

. NOZZLE, MAIN 2

30X-14355-00-00

Unavailable

43

JET, MAIN

30X-14343-63-00

Unavailable

44

PLATE

5Y1-14146-00-00

Unavailable

45

. VALVE, DRAIN (30X-14394-00)

1RG-14394-00-00

Unavailable

46

SEAT, SPRING

(30X-14936-00-00)

Unavailable

47

PIPE

5Y1-14349-00-00

Unavailable

48

PIPE

5Y1-14396-00-00

Unavailable

49

PIPE

5Y1-14197-00-00

Unavailable

50

PIPE

30X-14148-00-00

Unavailable

51

CLIP

5Y1-14159-00-00

Unavailable

52

. PIPE

30X-14149-00-00

Unavailable

53

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

54

SCREW

5H0-14991-00-00

Unavailable

55

GASKET

5H0-14126-00-00

Unavailable

56

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

57

. AIR JET, MAIN

30X-14337-40-00

Unavailable

58

. PLATE

30X-14146-00-00

Unavailable
