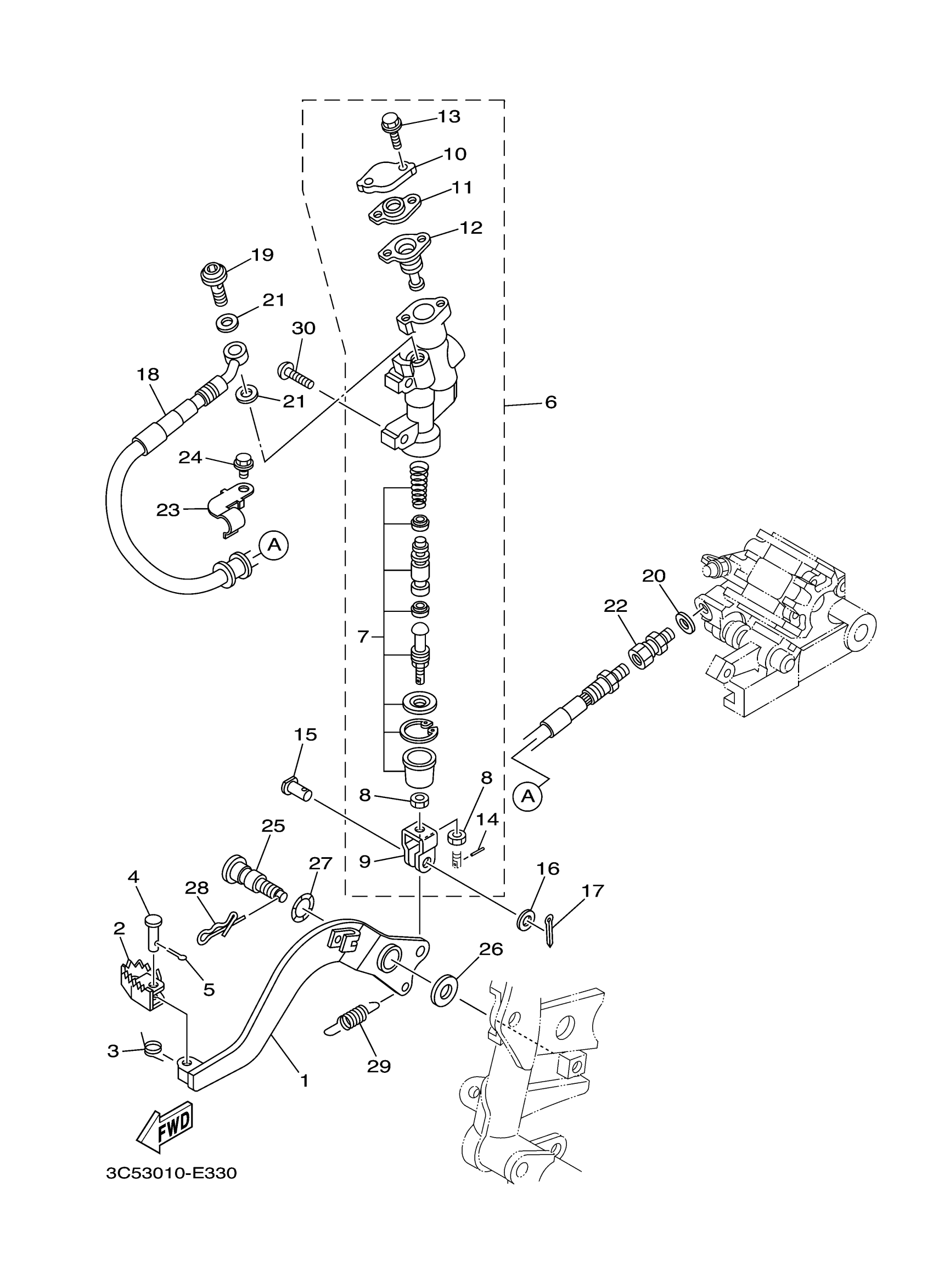

Yamaha XT250L1C (XT250 CA) B1U7 2020 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

3C5-27211-10-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

RR. MASTER CYLINDER ASSY.

5XT-2583V-10-00

Unavailable

7

CYLINDER KIT, MASTER

5XT-W0042-50-00

Unavailable

8

NUT, HEXAGON SMALL

95317-08700-00

$9.49

9

JOINT

2YK-27222-00-00

$21.99

10

CAP, RESERVOIR

5UN-25852-50-00

$17.49

11

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$14.49

13

BOLT

5UN-27217-00-00

$5.49

14

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

15

PIN, CLEVIS

90240-08005-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

PIN, COTTER

91490-16020-00

Unavailable

18

HOSE, BRAKE 2

3C5-25873-00-00

Unavailable

19

BOLT, UNION

90401-10172-00

Unavailable

20

WASHER, PLATE(481)

90201-10118-00

Unavailable

21

GASKET

90430-10005-00

Unavailable

22

JOINT

3LC-25885-00-00

Unavailable

23

HOLDER, BRAKE HOSE

3C5-25887-00-00

Unavailable

24

BOLT, FLANGE

95817-06008-00

Unavailable

25

SHAFT

2YK-27261-00-00

Unavailable

26

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

27

WASHER, WAVE

90206-14001-00

Unavailable

28

CLIP(3YF)

90468-16191-00

Unavailable

29

SPRING, TENSION

90506-23008-00

Unavailable

30

SCREW(4DN)

90149-06302-00

Unavailable
