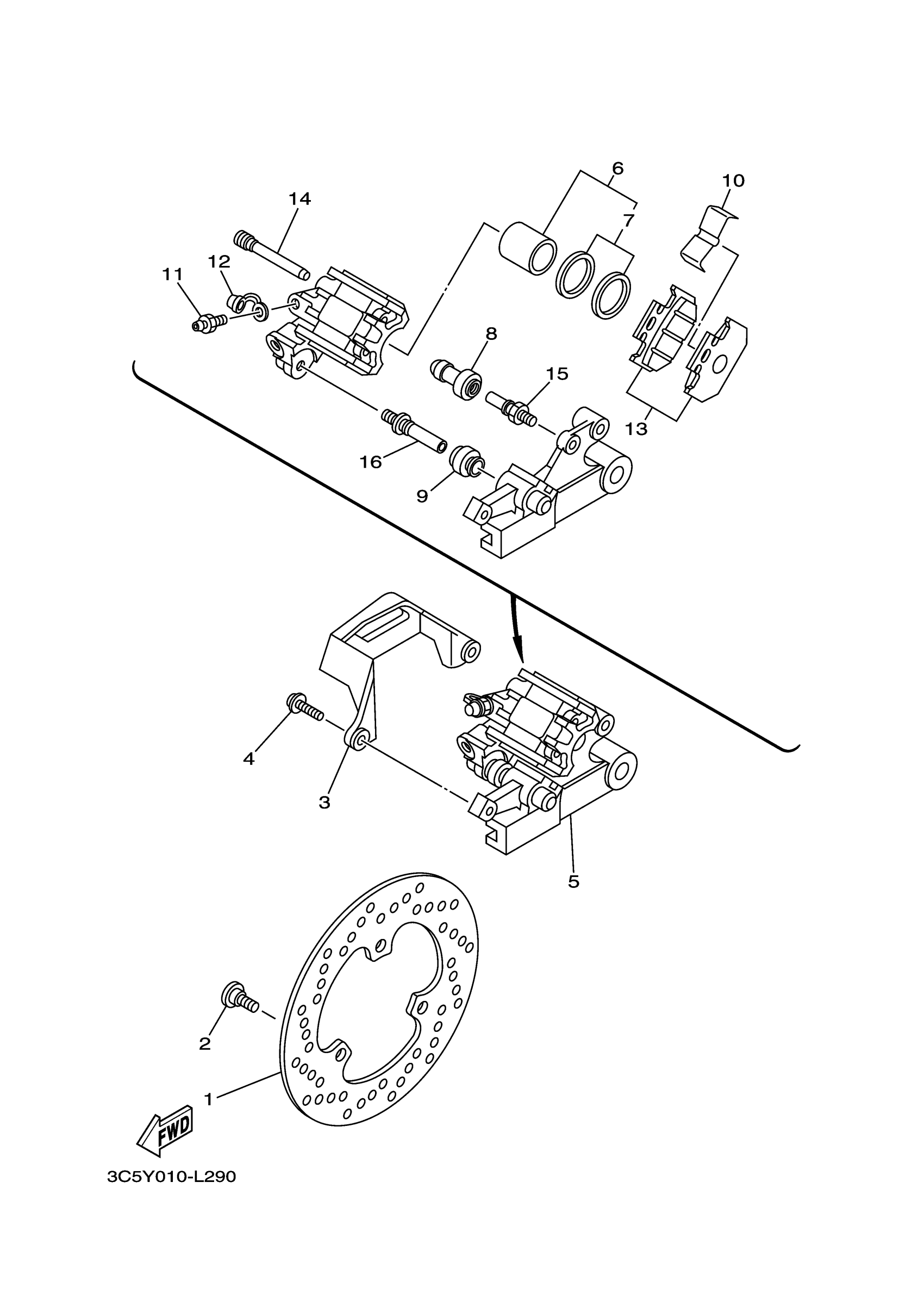

Yamaha XT250L1C (XT250 CA) B1U7 2020 REAR BRAKE CALIPER Diagram

Description

Price

DISK, REAR BRAKE 2

5XT-2582W-00-00

$105.99

BOLT

90109-08087-00

$8.49

PROTECTOR

4GY-27491-00-00

$63.99

BOLT, BUTTON

92014-06016-00

$8.49

CALIPER ASSY, REAR 2

3C5-2580W-10-00

Unavailable

PISTON ASSY, CALIPER

5XT-25802-50-00

$56.99

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

BOOT 2

1UY-25937-51-00

$14.49

BOOT, CALIPER

3JD-25917-00-00

$8.99

SUPPORT, PAD

3SP-25919-51-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT 2

3C5-25806-00-00

$42.99

PIN, PAD

3FV-25924-00-00

$23.99

BOLT

3SP-25914-51-00

$4.58

BOLT

3SP-25926-51-00

Unavailable
