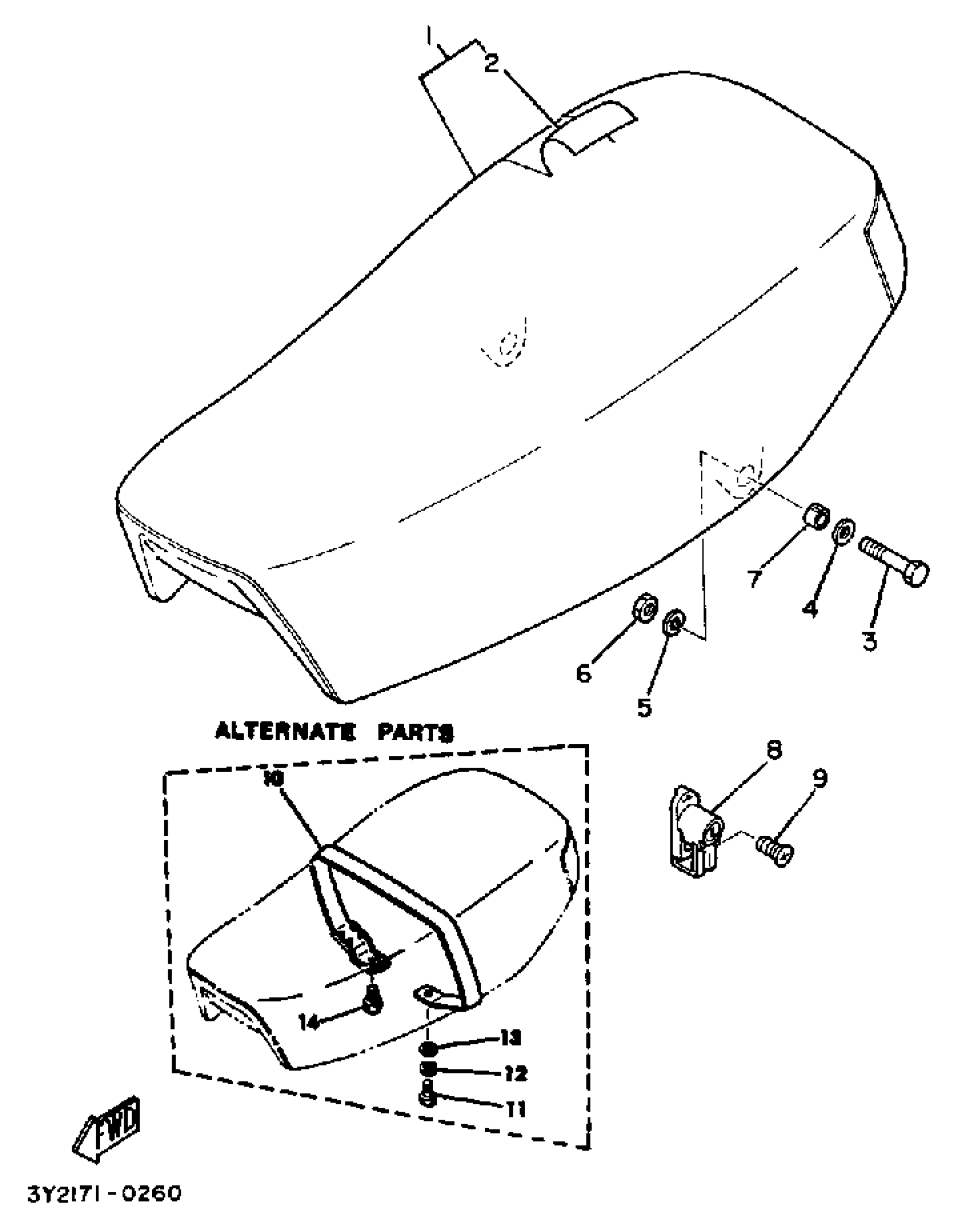

Yamaha XT250KC (XT250 CA) 1983 SEAT Diagram

#

Description
Price

1

SEMI-DOUBLE SEAT ASSEMBLY

3Y1-W2473-00-00

Unavailable

2

. COVER, DOUBLE SEAT

3Y1-24731-00-00

Unavailable

3

BOLT, HEXAGON

97013-06045-00

$1.11

4

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

COLLAR

90387-10661-00

Unavailable

8

HELMET HANGER ASSY

5H0-21308-01-00

$84.99

9

SCREW, OVAL HEAD

98603-06018-00

Unavailable

10

BAND, SEAT FITTING

(3Y1-24778-00-00)

Unavailable

11

BOLT(JA9)

90101-08691-00

$4.29

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

BOLT(JA9)

90101-08691-00

$4.29
