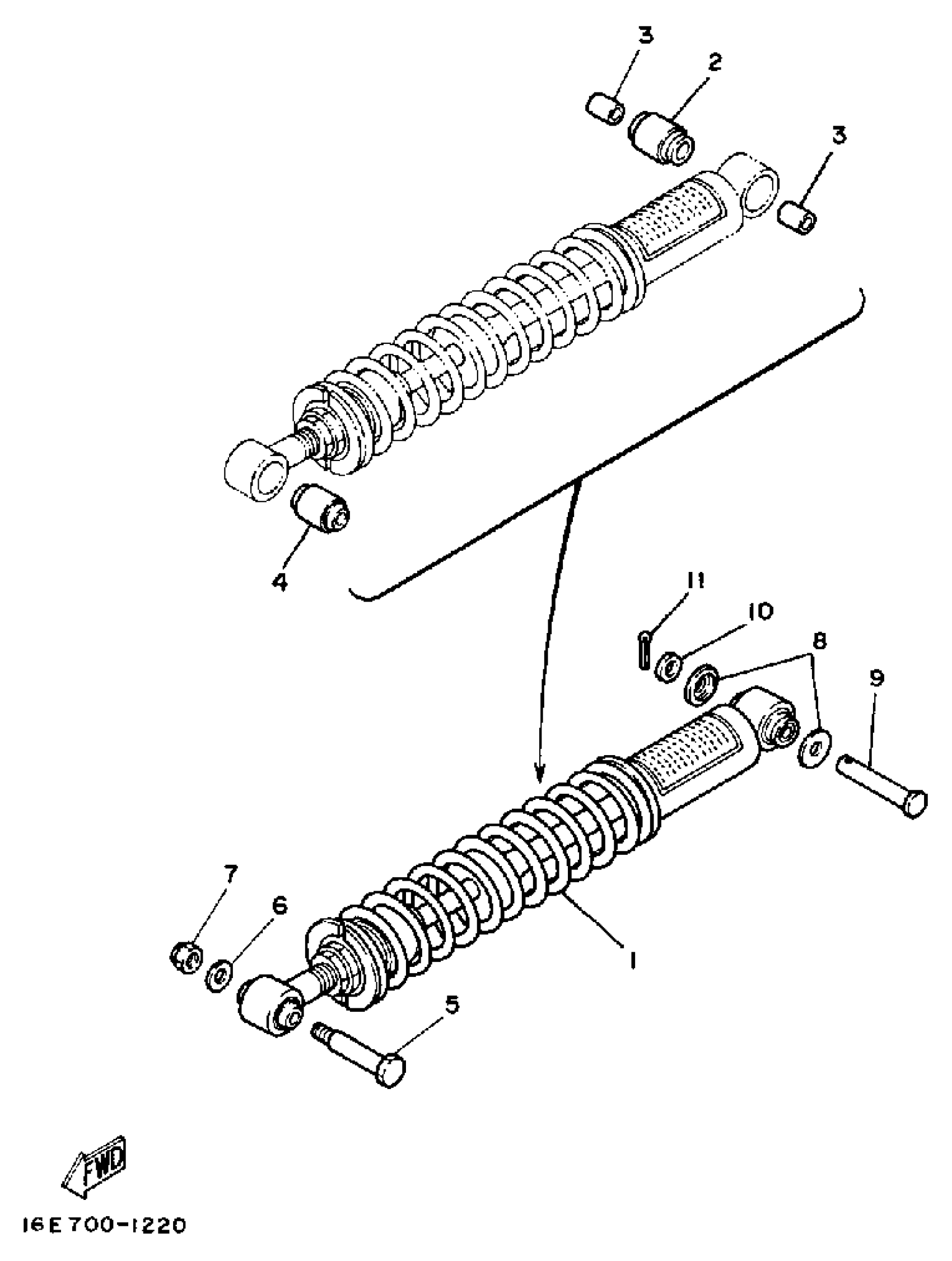

Yamaha XT250KC (XT250 CA) 1983 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSEMBLY, REAR

3Y1-22210-01-00

Unavailable

2

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

3

BUSH, SOLID (1M1)

90380-12051-00

$15.99

4

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

5

BOLT (1M1)

90109-10453-00

Unavailable

6

WASHER, PLATE (26H)

90201-102G9-00

$9.49

7

NUT, U

95617-10100-00

$8.49

8

COVER, THRUST

1W1-22128-00-00

$19.49

9

PIN, CLEVIS (3Y2)

90240-12075-00

Unavailable

10

WASHER, PLATE(663)

92990-12600-00

$8.49

11

PIN, COTTER

91490-30030-00

$8.49
