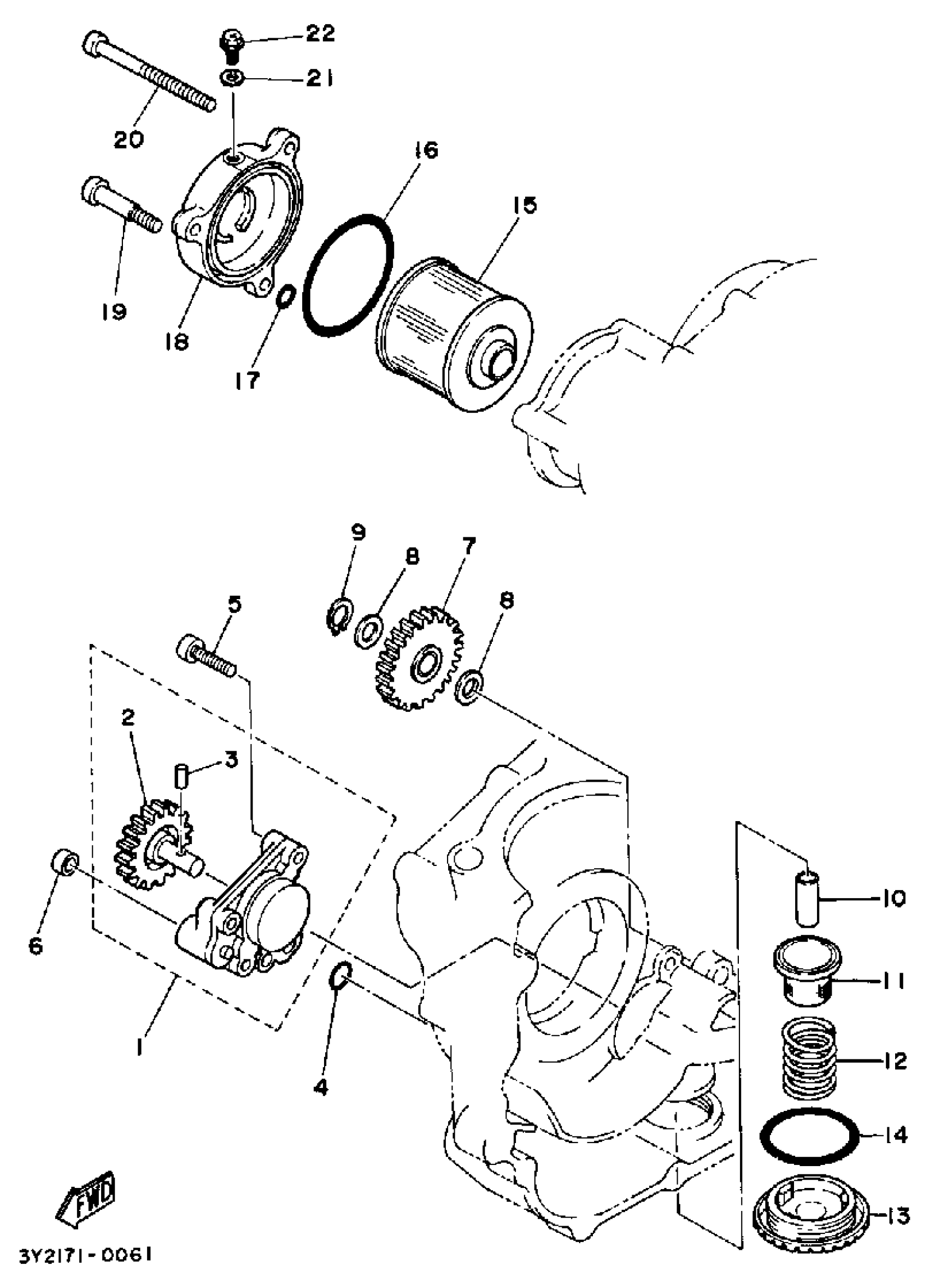

Yamaha XT250KC (XT250 CA) 1983 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASY

3Y6-13300-01-00

Unavailable

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

$11.99

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

O-RING (611)

93210-10096-00

$3.76

5

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

6

GASKET (3Y1)

90430-06156-00

$4.29

7

GEAR, OIL PUMP IDLE

3Y1-13341-00-00

$37.99

8

WASHER, PLAIN(735)

90201-10119-00

Unavailable

9

CIRCLIP(10W)

99009-10400-00

$4.73

10

PIPE, OIL 1

2XK-13416-00-00

$7.99

11

STRAINER, OIL

51Y-13411-00-00

$37.99

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

13

PLUG, DRAIN

3Y1-15351-01-00

Unavailable

14

O-RING(2HF)

93210-40745-00

$11.49

15

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$14.49

16

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

18

COVER, OIL ELEMENT

583-13447-01-00

Unavailable

19

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

20

SCREW, PAN

98507-06075-00

Unavailable

21

GASKET

90430-05126-00

Unavailable

22

SCREW (583)

90149-05110-00

Unavailable
