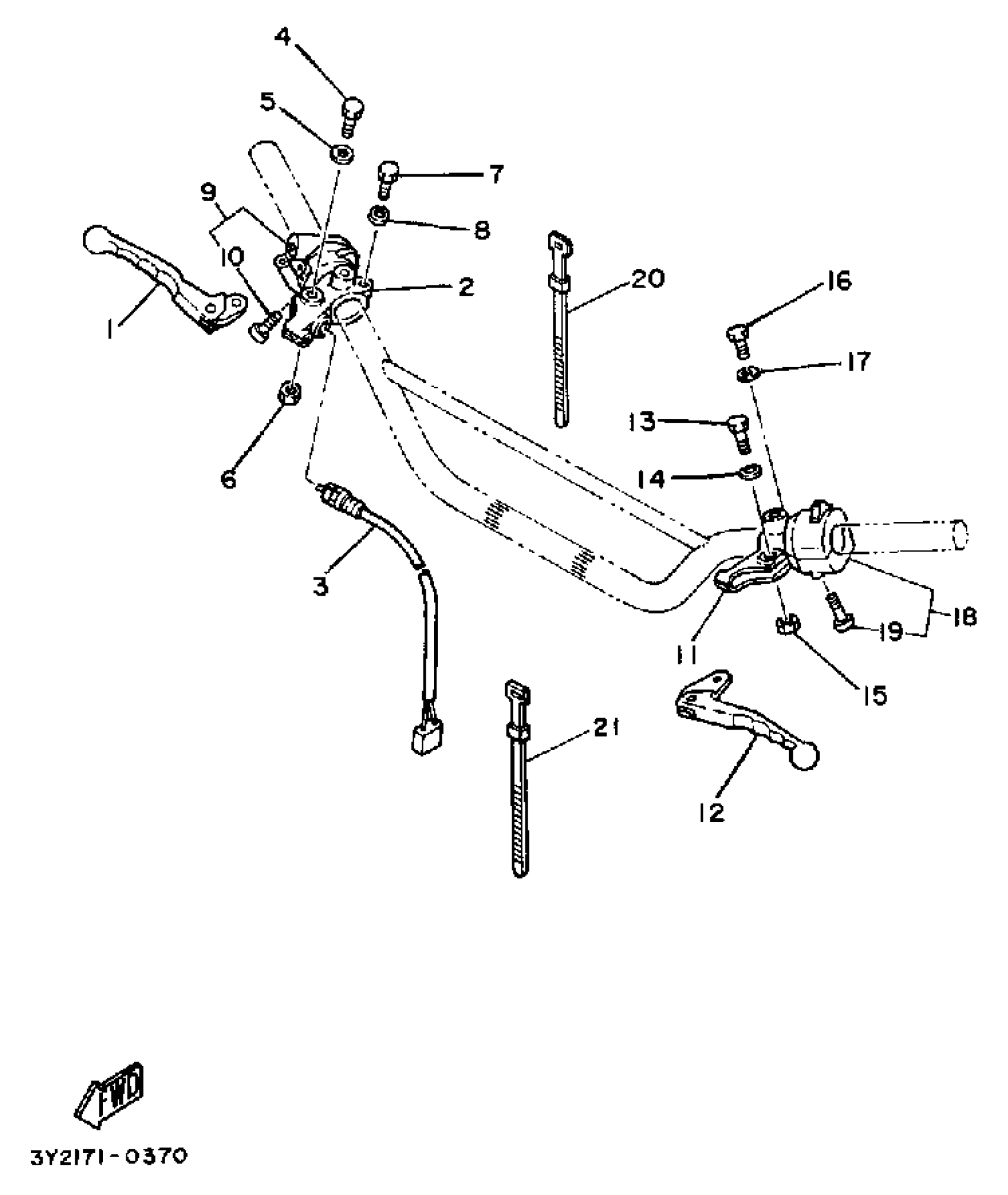

Yamaha XT250KC (XT250 CA) 1983 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER R

2H0-83922-31-00

$28.99

2

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

Unavailable

3

FRONT STOP SWITCH ASSY

1M1-83980-31-00

$27.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SWITCH, HANDLE 1

3Y1-83976-01-00

Unavailable

10

SCREW, PAN HEAD

98580-05020-00

Unavailable

11

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

12

LEVER L

2H0-83912-31-00

$31.99

13

BOLT(3GB)

90109-061F3-00

$7.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT, HEXAGON

97013-06022-00

$0.90

17

WASHER, SPRING

92995-06100-00

Unavailable

18

SWITCH, HANDLE 3

1M1-83973-50-00

Unavailable

19

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable
