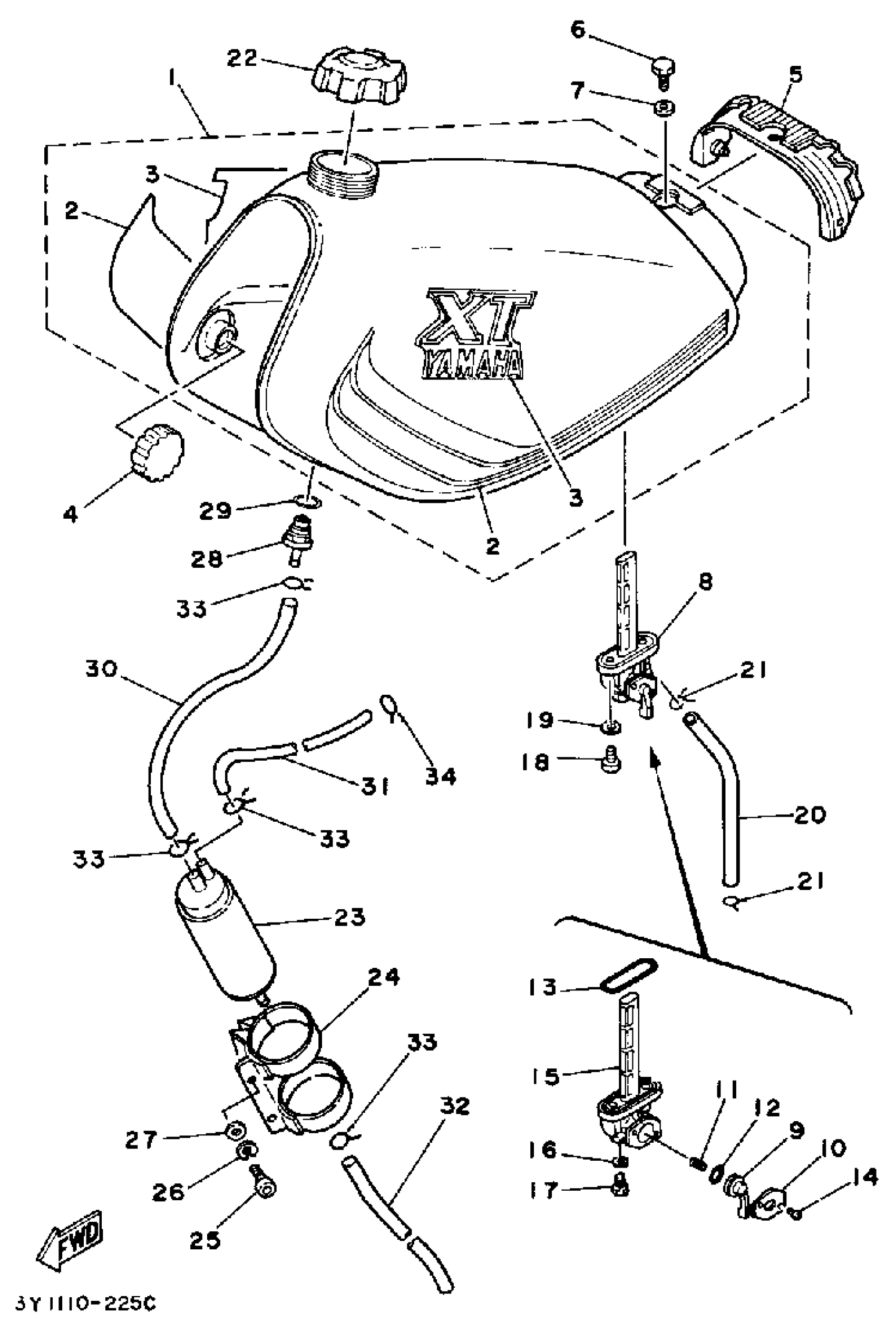

Yamaha XT250KC (XT250 CA) 1983 FUEL TANK XT250KC CALIFORNIA ONLY Diagram

#

Description
Price

1

FUEL TANK

20T-24110-00-01

Unavailable

2

. GRAPHIC SET

20T-24240-00-00

Unavailable

3

. EMBLEM 1

20T-24161-00-00

Unavailable

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

DAMPER, LOCATING 2

3Y1-24182-01-00

Unavailable

6

BOLT(8CP)

97017-06014-00

$8.49

7

WASHER, PLATE

90201-06095-00

$8.49

8

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

9

LEVER, COCK

(3Y1-24524-00-00)

Unavailable

10

PLATE, LVR FITTING

(3Y1-24525-00-00)

Unavailable

11

. SPRING

2W6-24529-00-00

Unavailable

12

O-RING

2N3-24528-00-00

Unavailable

13

O-RING

2W6-24512-00-00

$7.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

NET, FILTER 1

3Y1-24514-00-00

$46.99

16

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

17

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

HOSE (L200)

90445-10752-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

CAP ASSEMBLY

5F7-24610-00-00

Unavailable

23

CANISTER ASSEMBLY

20K-24170-00-00

Unavailable

24

CANISTER HOLDER

(20T-24190-00-00)

Unavailable

25

BOLT, HEXAGON

97017-08016-00

Unavailable

26

WASHER(JN5)

92907-08100-00

Unavailable

27

WASHER(6TA)

92907-08600-00

Unavailable

28

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

29

O-RING (4G0)

93210-11453-00

Unavailable

30

HOSE (L590)

90445-10020-00

Unavailable

31

HOSE

(90445-10517-00)

Unavailable

32

HOSE

(90446-11030-00)

Unavailable

33

CLIP

90467-090A2-00

Unavailable

34

CLIP(1JH)

90467-11106-00

Unavailable
