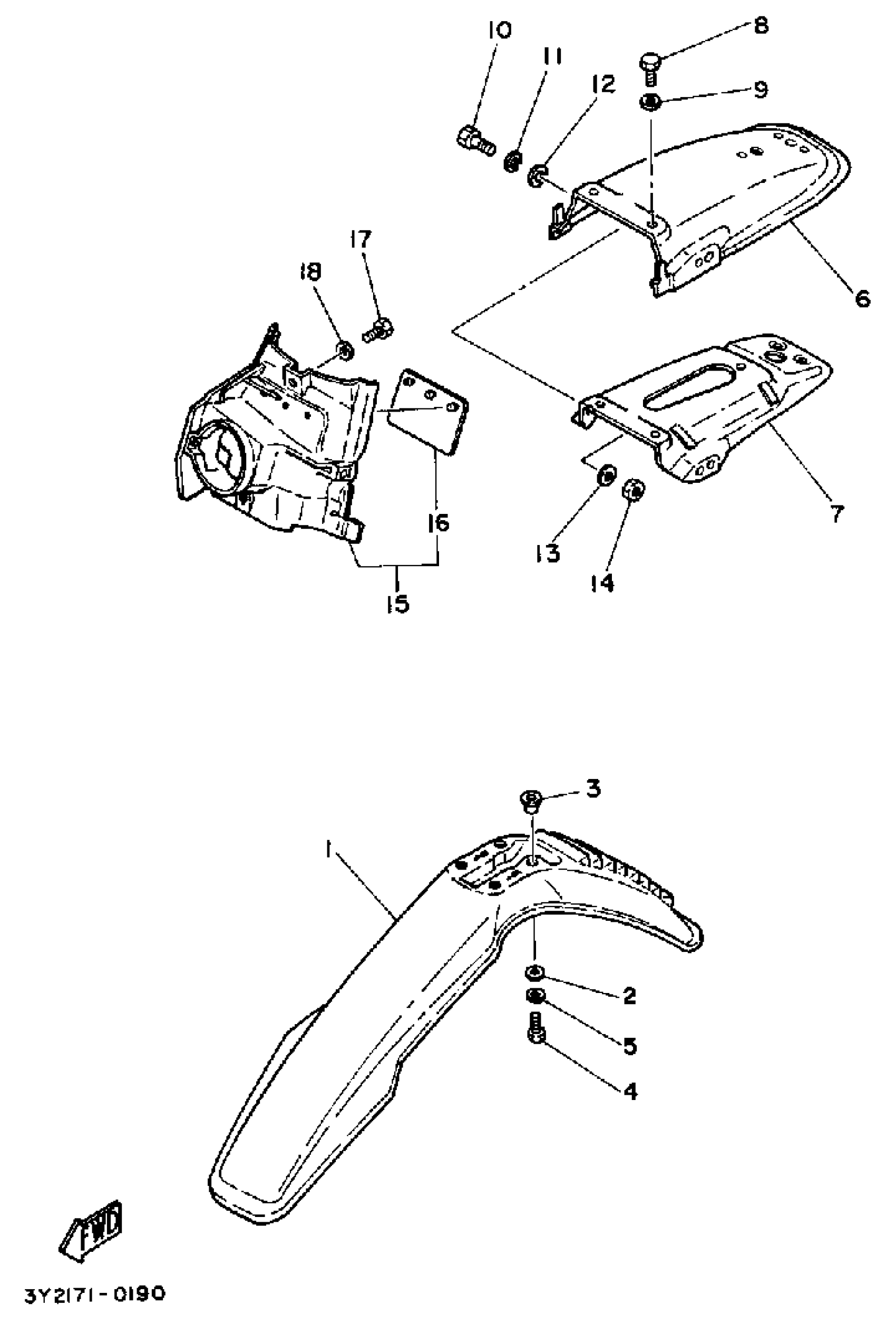

Yamaha XT250KC (XT250 CA) 1983 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3Y1-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.60

3

COLLAR (3Y2)

90387-07789-00

$9.49

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

FENDER, REAR

3Y0-21611-00-00

$35.99

7

REINFORCEMENT

3Y1-21670-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT, HEXAGON

97013-08030-00

$2.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

.. WASHER, PLATE

92990-08600-00

Unavailable

13

WASHER, PLATE (397)

90201-08100-00

$8.49

14

NUT(6L2)

95333-08600-00

$2.49

15

MUD GUARD

3Y1-21620-00-00

Unavailable

16

FLAP

1M1-21621-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

18

WASHER, PLATE

90201-06380-00

$0.60
