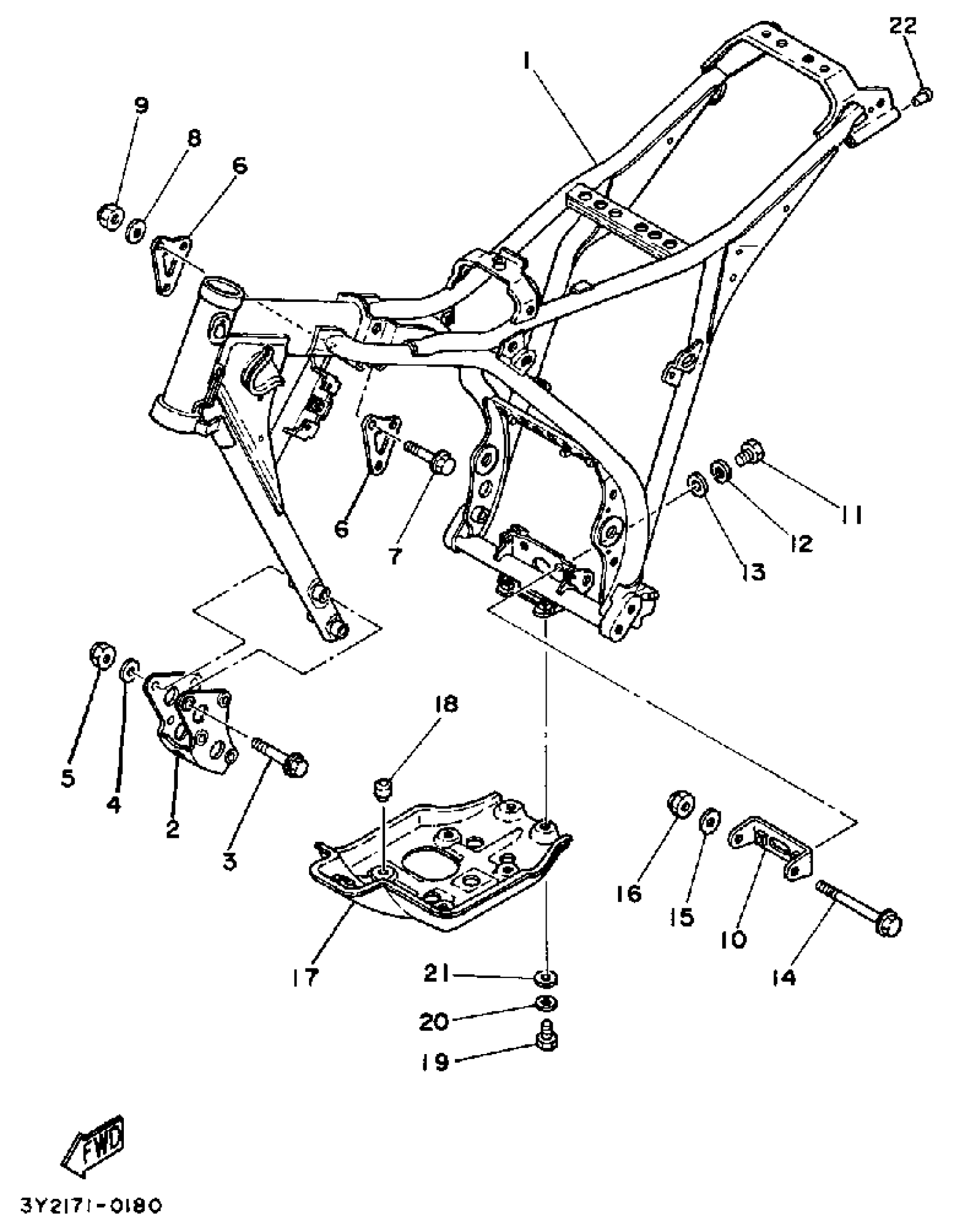

Yamaha XT250KC (XT250 CA) 1983 FRAME Diagram

#

Description
Price

1

FRAME

(20T-21110-00-33)

Unavailable

1

FRAME

(3Y1-21110-10-33)

Unavailable

2

STAY, ENGINE 3

(3Y1-21316-00-00)

Unavailable

3

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

4

WASHER, PLATE (33N)

90201-094G1-00

$9.49

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

STAY, ENGINE 2

(371-21315-00-00)

Unavailable

7

BOLT, FLANGE

95817-08055-00

$4.21

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

10

PLATE, ENGINE ADJUSTING

3Y1-21475-00-00

Unavailable

11

BOLT, HEXAGON

97013-08016-00

$1.01

12

WASHER(JN5)

92907-08100-00

$8.49

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

BOLT, WASHER BASED (3Y2)

90105-08162-00

$5.60

15

WASHER, PLATE (33N)

90201-094G1-00

$9.49

16

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

17

PROTECTOR, ENGINE

3Y1-21471-00-35

Unavailable

18

STOPPER

3Y1-24768-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

22

PLUG, BLIND

3Y1-21279-00-00

Unavailable
