Description

Price

1

CRANKCASE ASSEMBLY

3Y1-15100-02-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COLLAR

90387-17009-00

$15.99

4

COLLAR (3Y1)

90387-16782-00

$4.99

5

SCREW, PAN

98517-06030-00

Unavailable

6

SCREW, PAN

98507-06060-00

$7.99

7

CLAMP(51Y)

90465-08277-00

Unavailable

8

HOLDER, CLUTCH CABLE (3Y1-15441-010

31G-15441-00-00

Unavailable

9

SCREW, PAN

98507-06014-00

$8.49

10

PLUG STRAIGTSCREW 367185880000

90340-10003-00

$8.49

11

WASHER, PLATE(481)

90201-10118-00

Unavailable

12

PIPE, BREATHER 2

371-11167-01-00

$13.49

13

HOSE

(90445-16162-00)

Unavailable

14

CLIP (371)

90467-14015-00

$8.49

15

PLATE, BRNG COVER

(3Y1-15383-00-00)

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

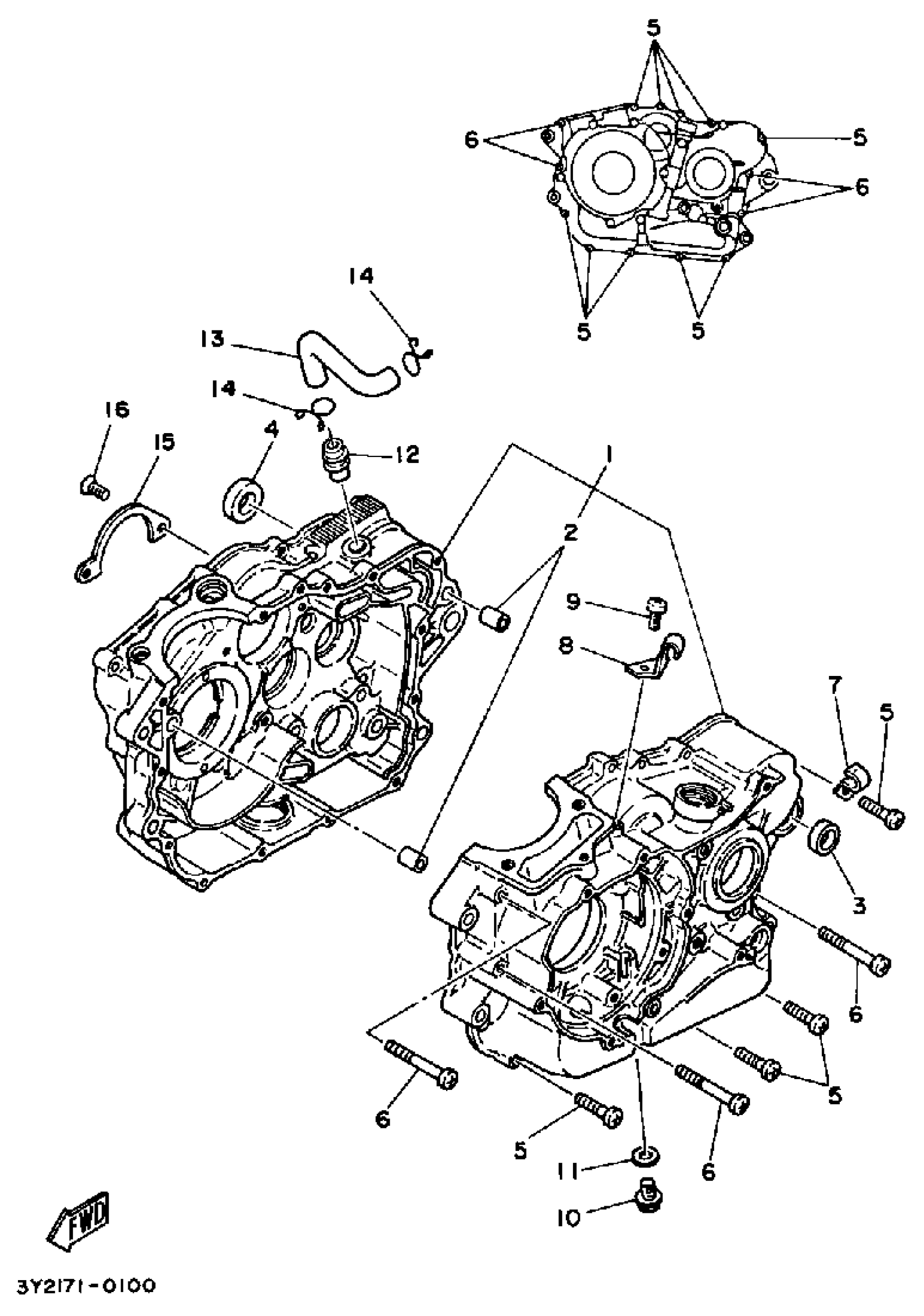

Yamaha XT250KC (XT250 CA) 1983 CRANKCASE Diagram

CRANKCASE ASSEMBLY

PIN, DOWEL

COLLAR

COLLAR (3Y1)

SCREW, PAN

SCREW, PAN

CLAMP(51Y)

HOLDER, CLUTCH CABLE (3Y1-15441-010

SCREW, PAN

PLUG STRAIGTSCREW 367185880000

WASHER, PLATE(481)

PIPE, BREATHER 2

HOSE

CLIP (371)

PLATE, BRNG COVER

SCREW, FLAT
