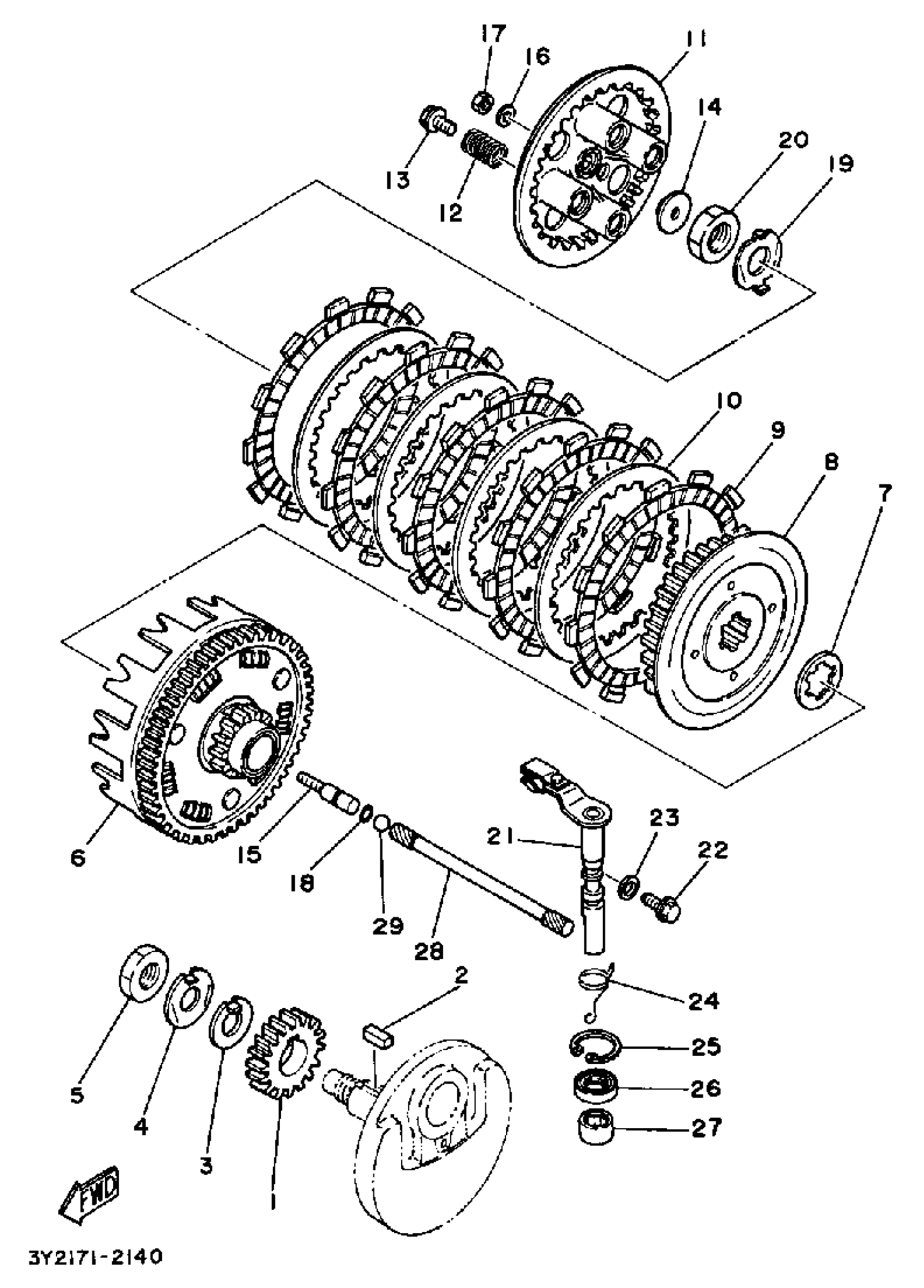

Yamaha XT250KC (XT250 CA) 1983 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3Y1-16111-01-00

Unavailable

2

KEY, STRAIGHT (584)

90282-07023-00

$9.49

3

WASHER, LOCK (3Y1)

90215-16156-00

$7.49

4

WASHER, LOCK (30X)

90215-16222-00

$9.49

5

NUT(24V)

90170-16343-00

$14.99

6

. PRIMARY DRIVEN GEAR COMP (3Y1-16150-01)

3Y1-16150-02-00

Unavailable

7

. PLATE, THRUST 1

3Y1-16154-00-00

Unavailable

8

BOSS, CLUTCH

3Y1-16371-00-00

Unavailable

9

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

10

PLATE, CLUTCH 2

360-16325-10-00

$35.99

11

PLATE, PRESSURE 1

3Y1-16351-00-00

$45.99

12

SPRING,COMPRESSION 2561633300

90501-26148-00

$4.99

13

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

14

PLATE, PUSH

1W1-16358-01-00

$23.99

15

ROD, PUSH 1

3Y1-16356-01-00

$5.49

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

O-RING (26H)

93210-06632-00

Unavailable

19

WASHER, LOCK (3Y1)

90215-20159-00

Unavailable

20

NUT (34L)

90170-20327-00

Unavailable

21

PUSH LEVER ASSY

3Y1-16380-01-00

Unavailable

22

SCREW 425163430000

90149-08067-00

Unavailable

23

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

24

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

25

CIRCLIP (3Y1)

93420-28055-00

Unavailable

26

OIL SEAL (3Y1)

93102-14209-00

Unavailable

27

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

28

ROD, PUSH 2

3Y1-16357-00-00

Unavailable

29

BALL (498)

93511-32027-00

Unavailable
