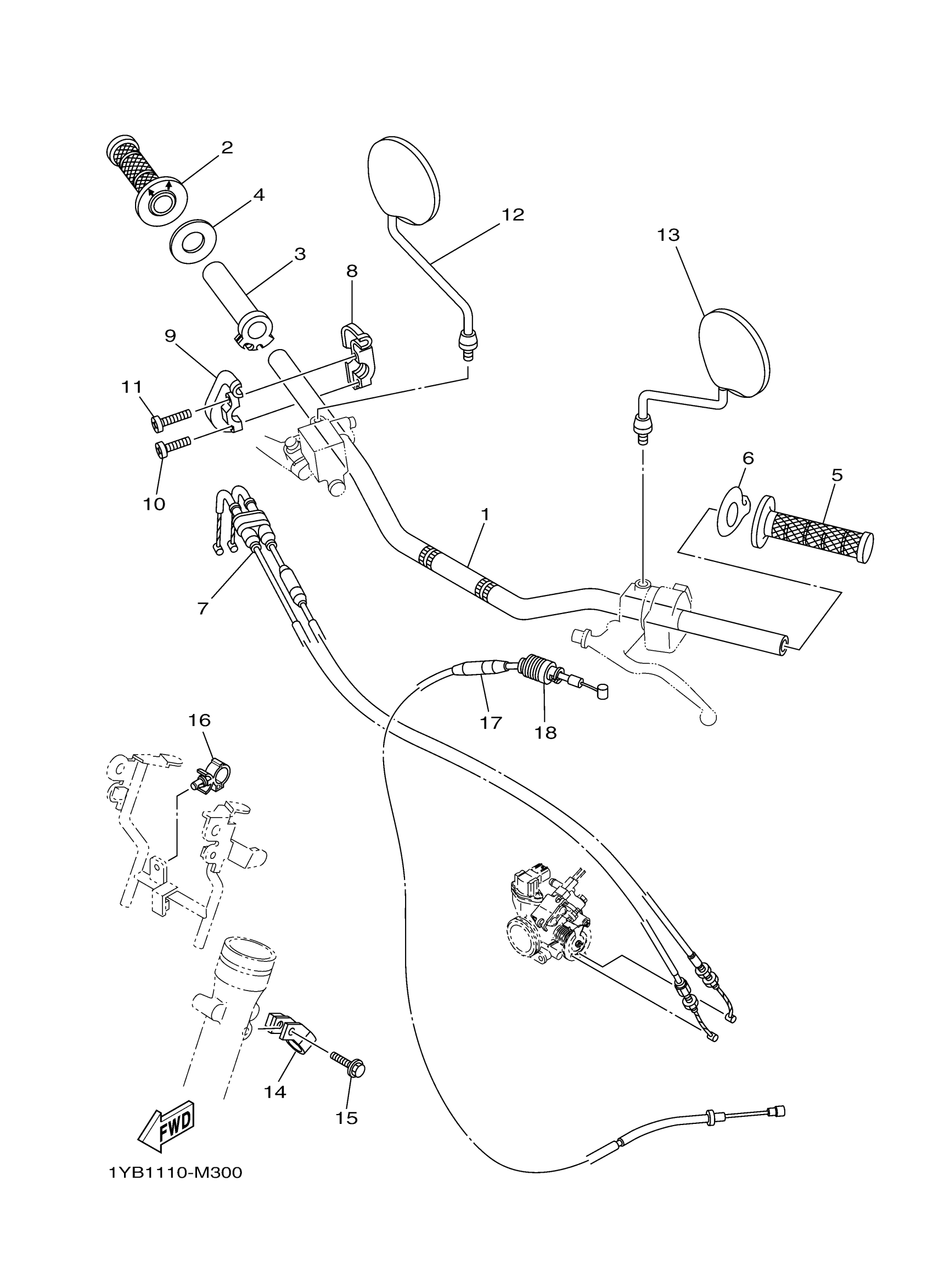

Yamaha XT250K1C (XT250 CA) B1U2 2019 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3C5-26111-00-00

$76.99

2

GRIP (RIGHT)

4GY-26242-00-00

$29.99

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

$17.49

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP (LEFT)

4GY-26241-00-00

$29.99

6

WASHER

4RR-26129-00-00

$9.99

7

THROTTLE CABLE ASSY

3C5-26302-10-00

$61.99

8

CAP, GRIP UPPER

3LN-26281-01-00

Unavailable

9

CAP, GRIP LOWER

3LN-26282-01-00

$31.99

10

SCREW, PAN HEAD

98517-05020-00

$4.25

11

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

12

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

13

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

14

HOLDER, BRAKE HOSE

3C5-25886-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

CLAMP

90464-16012-00

Unavailable

17

CABLE, CLUTCH

3C5-26335-00-00

Unavailable

18

BOOT, WIRE

1E6-26342-00-00

Unavailable
