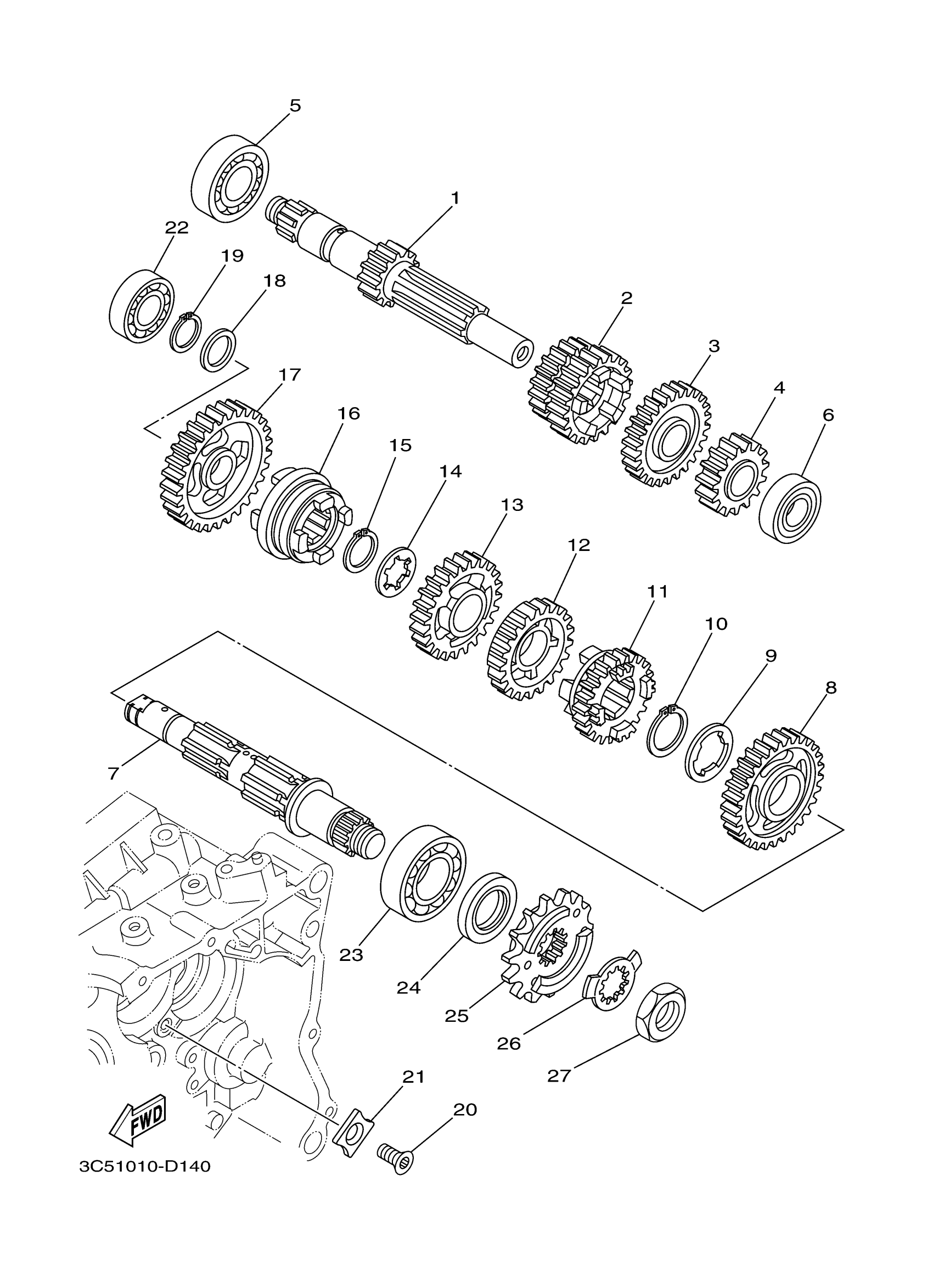

Yamaha XT250J1C (XT250 CA) 1YBW 2018 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5XT-17411-00-00

Unavailable

2

GEAR, 3RD PINION

5XT-17131-00-00

Unavailable

3

GEAR, 5TH PINION

5XT-17151-10-00

Unavailable

4

GEAR, 2ND PINION

51Y-17121-00-00

Unavailable

5

BEARING (30X)

93306-20447-00

$41.99

6

BEARING(4GA)

93306-00320-00

$36.99

7

DRIVE AXLE ASSY

3C5-17402-00-00

Unavailable

8

GEAR, 2ND WHEEL

5XT-17221-00-00

Unavailable

9

WASHER (30X)

90209-23241-00

Unavailable

10

CIRCLIP (30X)

93410-26067-00

$8.49

11

GEAR, 5TH WHEEL

5XT-17251-10-00

Unavailable

12

GEAR, 4TH WHEEL

5XT-17241-00-00

Unavailable

13

GEAR, 3RD WHEEL

5XT-17231-00-00

Unavailable

14

WASHER (5H0)

90209-18208-00

$8.49

15

CIRCLIP (537)

93410-22039-00

$8.49

16

CLUTCH, DOG

5BP-17285-00-00

Unavailable

17

GEAR, 1ST WHEEL

3C5-17211-00-00

Unavailable

18

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

19

CIRCLIP (525)

93410-17037-00

Unavailable

20

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

21

PLATE, BEARING

3C5-17558-00-00

Unavailable

22

BEARING (30X)

93306-20332-00

Unavailable

23

BEARING

93306-20532-00

Unavailable

24

OIL SEAL (3Y1)

93102-25226-00

Unavailable

25

SPROCKET, DRIVE

5XT-17460-00-00

Unavailable

26

WASHER, LOCK(2NX)

90215-23265-00

Unavailable

27

NUT(2NX)

90179-18552-00

Unavailable
