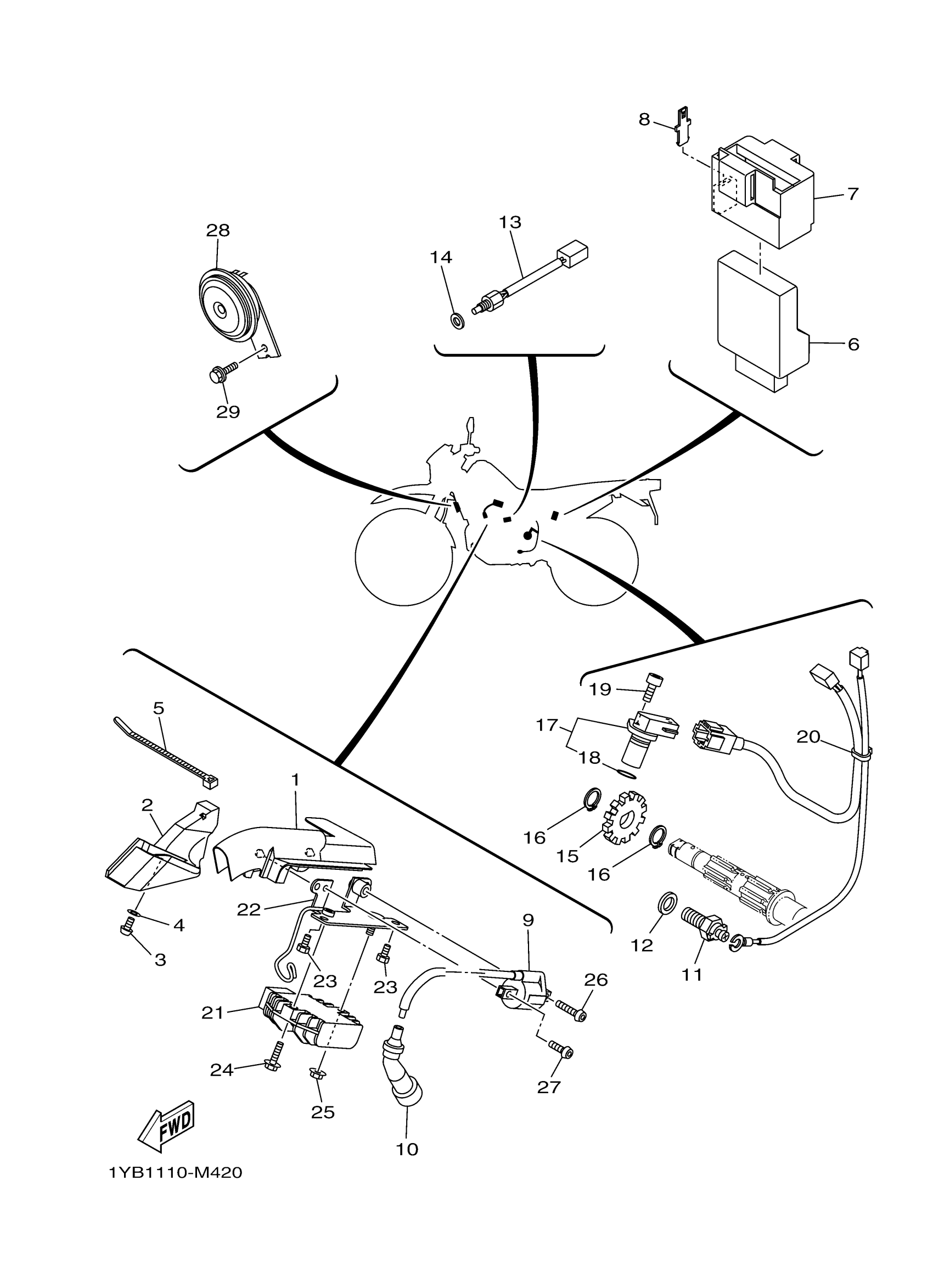

Yamaha XT250J1C (XT250 CA) 1YBW 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

COVER 3

5XT-2117N-00-00

Unavailable

2

COVER 4

5XT-2117R-00-00

Unavailable

3

SCREW(3XV)

90149-06298-00

$5.60

4

WASHER, PLATE

90201-06020-00

$9.49

5

BAND

1UA-82591-00-00

$4.78

6

ENGINE CONTROL UNIT ASSY

1YB-8591A-00-00

$353.99

7

BAND

5XT-85546-10-00

Unavailable

8

STAY, FUSE BOX

5XT-82171-00-00

Unavailable

9

IGNITION COIL ASSY

1S4-82310-03-00

Unavailable

10

PLUG CAP ASSY

3NS-82370-00-00

$37.99

11

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

12

GASKET (1KH,1.0T)

90430-10148-00

$5.60

13

THERMO UNIT

5XT-83591-00-00

$72.99

14

GASKET(3AJ)

90430-08204-00

$8.99

15

ROTOR

3C5-8354W-00-00

Unavailable

16

CIRCLIP(1EY)

99009-17400-00

Unavailable

17

SENSOR, SPEED

1S4-83755-01-00

Unavailable

18

O-RING

1S4-81168-00-00

Unavailable

19

BOLT (33M)

91312-06014-00

Unavailable

20

WIRE, SUB LEAD

3C5-82309-00-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

Unavailable

22

BRACKET, COIL

5XT-21359-10-00

Unavailable

23

BOLT

97012-06010-00

Unavailable

24

BOLT, FLANGE

95817-06020-00

Unavailable

25

NUT, U FLANGE

95604-06200-00

Unavailable

26

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

27

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

28

HORN

3C5-83371-00-00

Unavailable

29

BOLT, FLANGE

95817-06010-00

Unavailable
