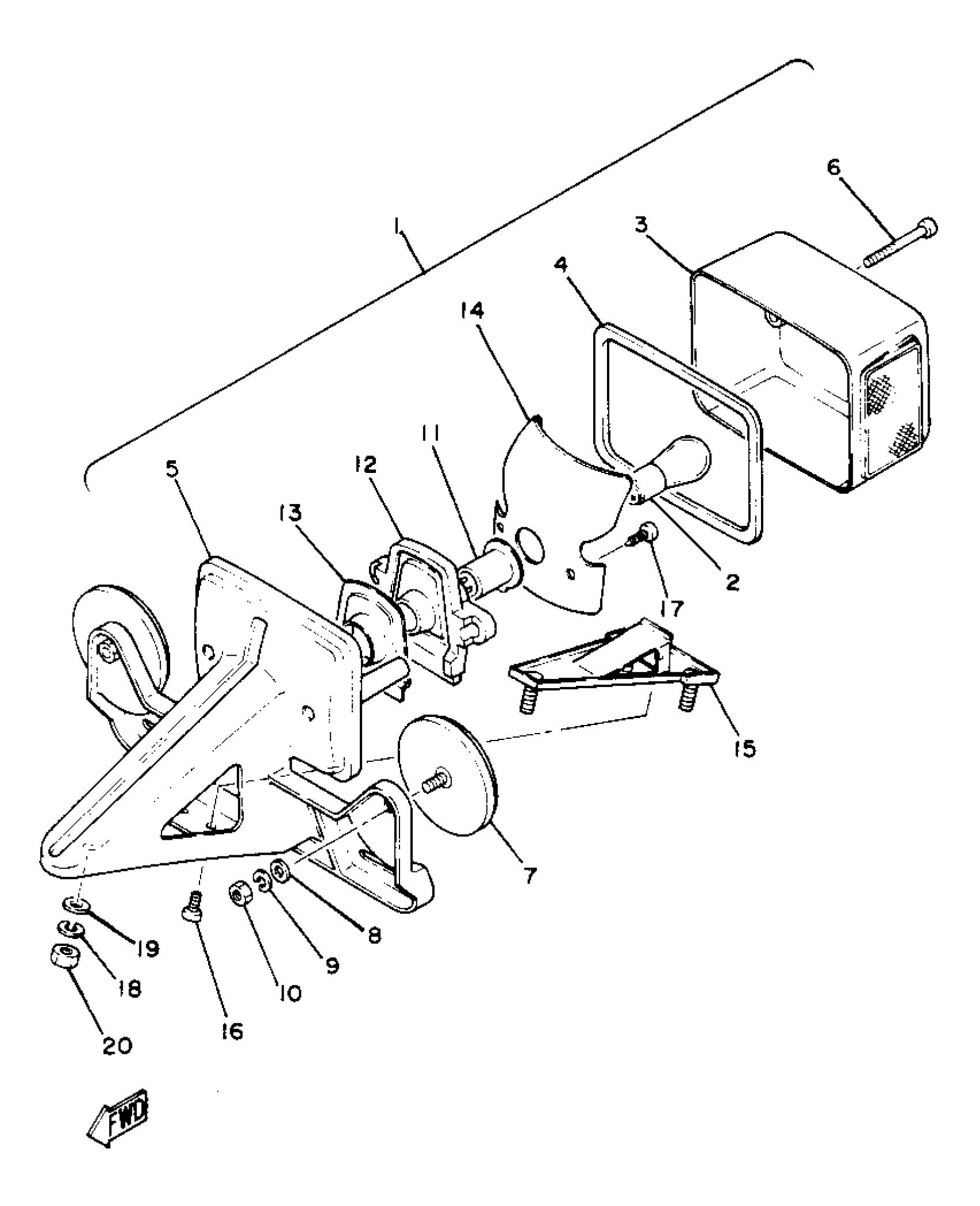

Yamaha XT250J_1982 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

3Y1-84500-60-00

Unavailable

2

. BULB

1M1-84514-60-00

Unavailable

3

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

4

SEAL

1VJ-14462-00-00

$18.49

5

. BRACKET, LICENSE

3Y1-84551-60-00

Unavailable

6

SCREW, LENS FITTING

3Y1-84524-00-00

$7.99

7

REFLECTOR, REAR 1

449-85131-02-00

$30.99

8

. WASHER, PLAIN

92990-05200-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

NUT, HEXAGON (663)

95380-05600-00

$8.49

11

. SOCKET CORD ASSEMBLY

3Y1-84536-00-00

Unavailable

12

DAMPER

(3Y1-83527-00-00)

Unavailable

13

. WASHER, SPECIAL

3Y1-84554-00-00

Unavailable

14

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

Unavailable

15

. BOLT, FITTING

3Y1-84552-00-00

Unavailable

16

SCREW, BIND

98980-04008-00

Unavailable

17

SCREW, TAPPING

97780-40116-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06049-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable
