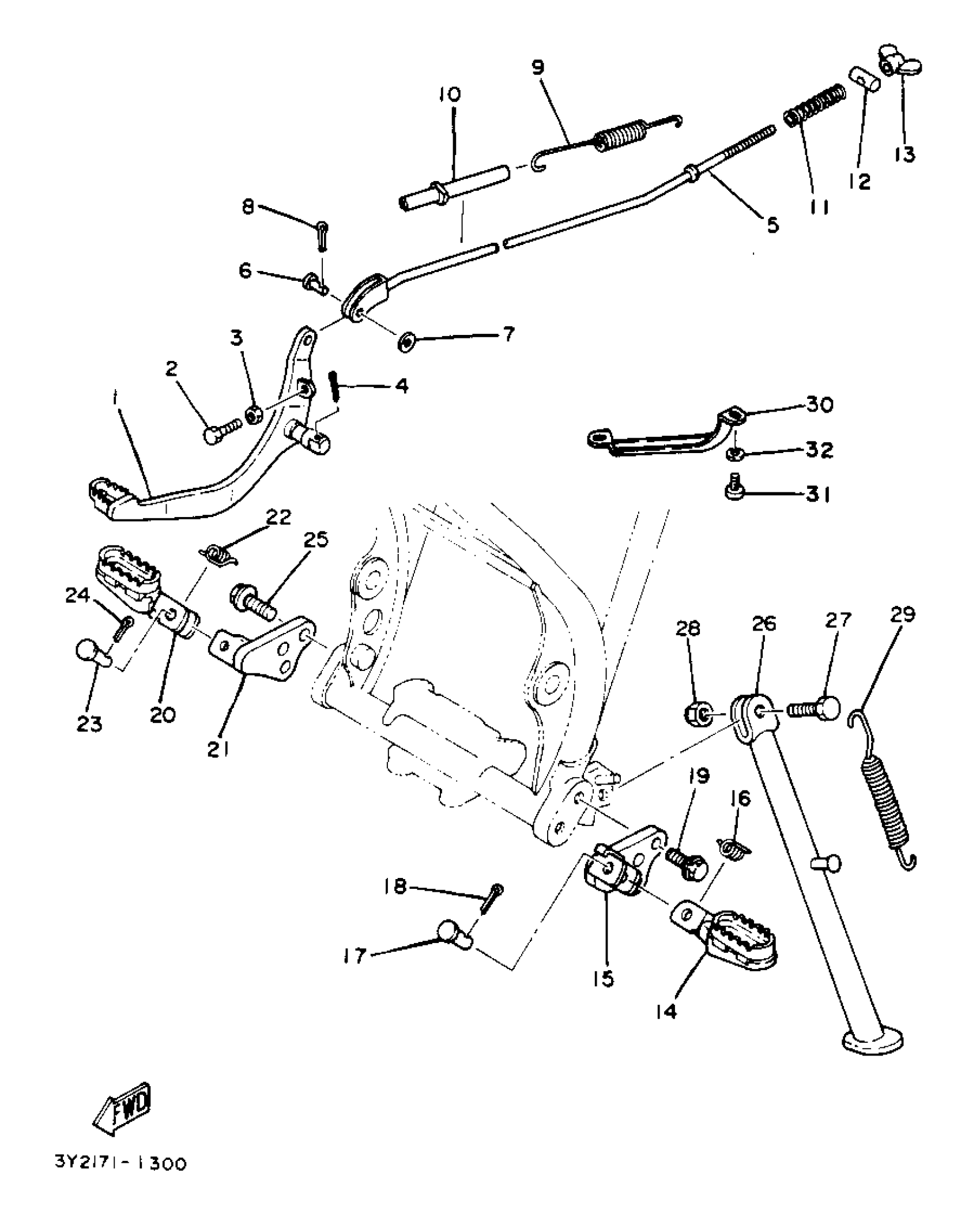

Yamaha XT250J_1982 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3Y3-27211-00-90

Unavailable

2

BOLT (3Y2)

90101-06478-00

$4.15

3

NUT(650)

95380-06700-00

$8.49

4

PIN COTTER

91490-30025-00

$3.99

5

ROD, BRAKE

3Y1-27231-00-00

Unavailable

6

PIN, CLEVIS (24X)

90240-06103-00

$7.49

7

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, TENSION

90506-18289-00

$14.99

10

COVER, SPRING

1M1-27244-00-00

$6.99

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

PIN 1562723700

90249-12008-00

$8.49

13

NUT (25K)

90179-06411-00

$8.49

14

FOOTREST 1

3Y1-27411-00-00

Unavailable

15

BRACKET, FOOTREST 1

3Y1-27412-00-R4

Unavailable

16

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

17

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

20

FOOTREST 2

3Y1-27421-00-00

Unavailable

21

BRACKET, FOOTREST 2

3Y1-27422-00-R4

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

26

STAND, SIDE

3Y1-27311-10-33

Unavailable

27

BOLT

90109-10635-00

Unavailable

28

NUT, U

90185-10037-00

Unavailable

29

SPRING (460)

90507-29009-00

Unavailable

30

GUIDE LEAD WIRE

3Y1-27371-00-00

Unavailable

31

SCREW, PAN

98517-06012-00

Unavailable

32

WASHER(6TA)

92907-06600-00

Unavailable
