1982 Yamaha XT250J_1982 Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

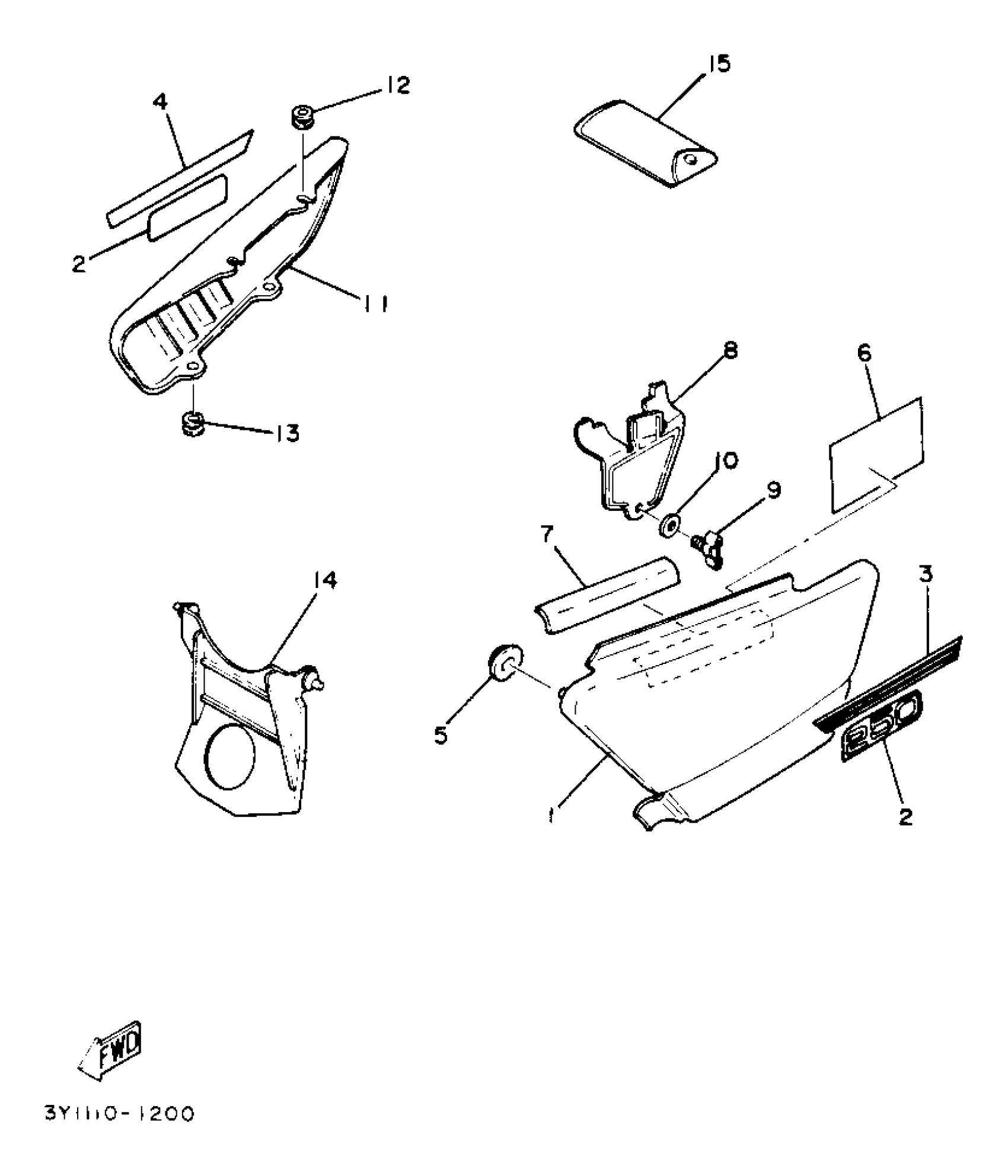

1982 Yamaha XT250J_1982 Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3Y1-21711-00-E1

1
Out of stock

2

EMBLEM 6

3Y1-21786-20-00

1
Out of stock

3

EMBLEM 4

3Y1-21784-00-00

1
Out of stock

4

EMBLEM 5

3Y1-21785-00-00

1
Out of stock

5

GROMMET(41Y)

90480-01401-00

1

$5.51

In stock

6

UNAVAILABLE IN PRICE BOOK

3Y-12168-32-00

1
Out of stock

7

DAMPER (L.H)

1AE-2834E-00-00

1
Out of stock

8

LID

3Y1-28185-00-00

1
Out of stock

9

BOLT, WING

90122-05010-00

1
Out of stock

10

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

11

COVER, SIDE 2

3Y1-21721-00-E1

1
Out of stock

12

GROMMET (3Y2)

90480-08264-00

1

$6.68

In stock

13

GROMMET (3Y2)

90480-08264-00

1

$6.68

In stock

14

COVER

3Y1-2177F-00-00

1
Out of stock

15

TOOL KIT

3Y1-W2810-00-00

1
Out of stock
