1982 Yamaha XT250J_1982 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

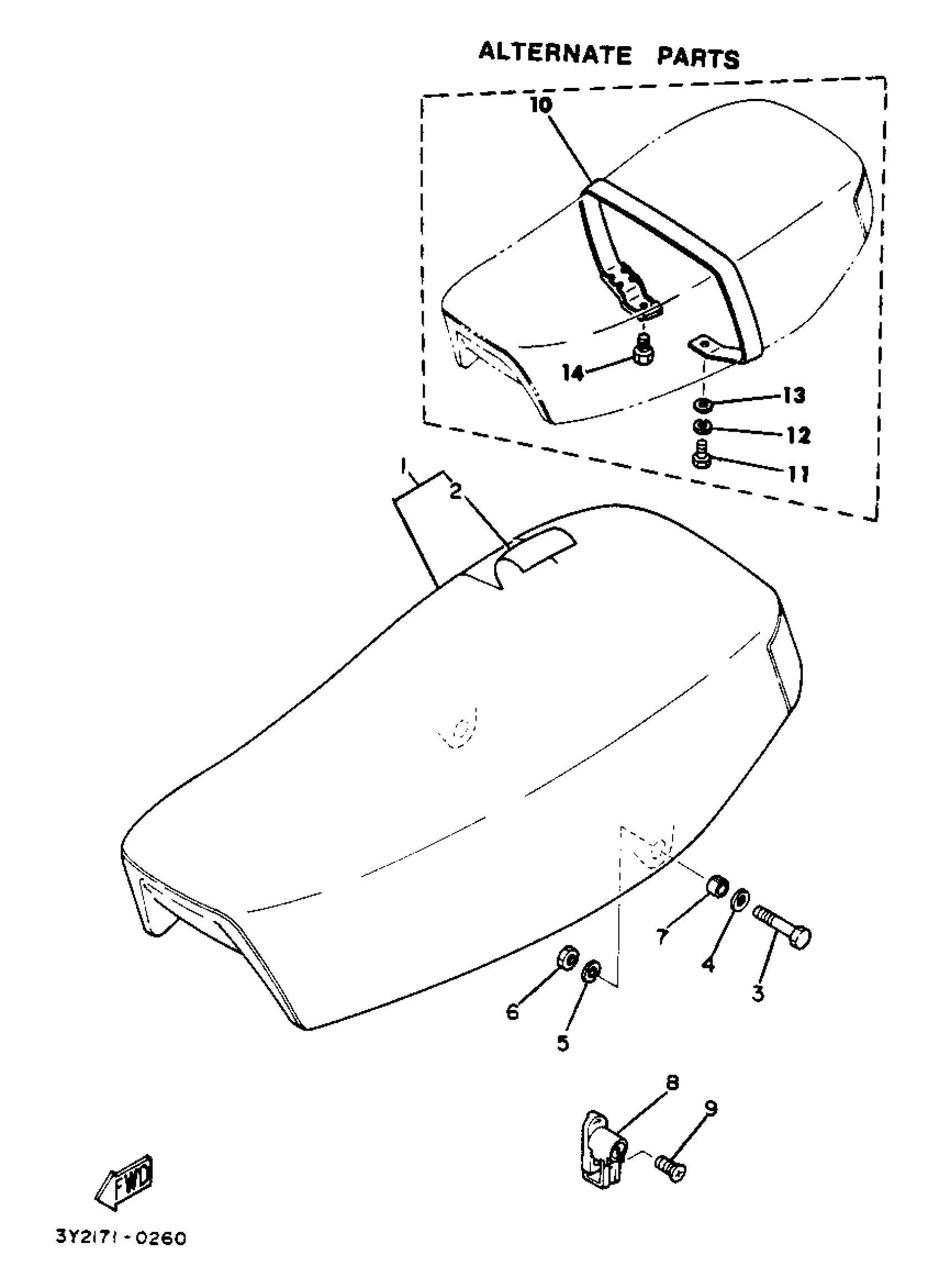

1982 Yamaha XT250J_1982 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DOUBLE SEAT ASSEMBLY

3Y1-W2473-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

3Y1-24731-00-00

1
Out of stock

3

BOLT, HEXAGON

97013-06045-00

1
Out of stock

4

WASHER, PLATE (4L0)

90201-062A8-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1
Out of stock

7

COLLAR

90387-10661-00

1
Out of stock

8

HELMET HANGER ASSY

5H0-21308-01-00

1
Out of stock

9

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

10

UNAVAILABLE IN PRICE BOOK

3Y-12477-80-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

13

.. WASHER, PLATE

92990-08600-00

1
Out of stock

14

BOLT(JA9)

90101-08691-00

1
Out of stock
