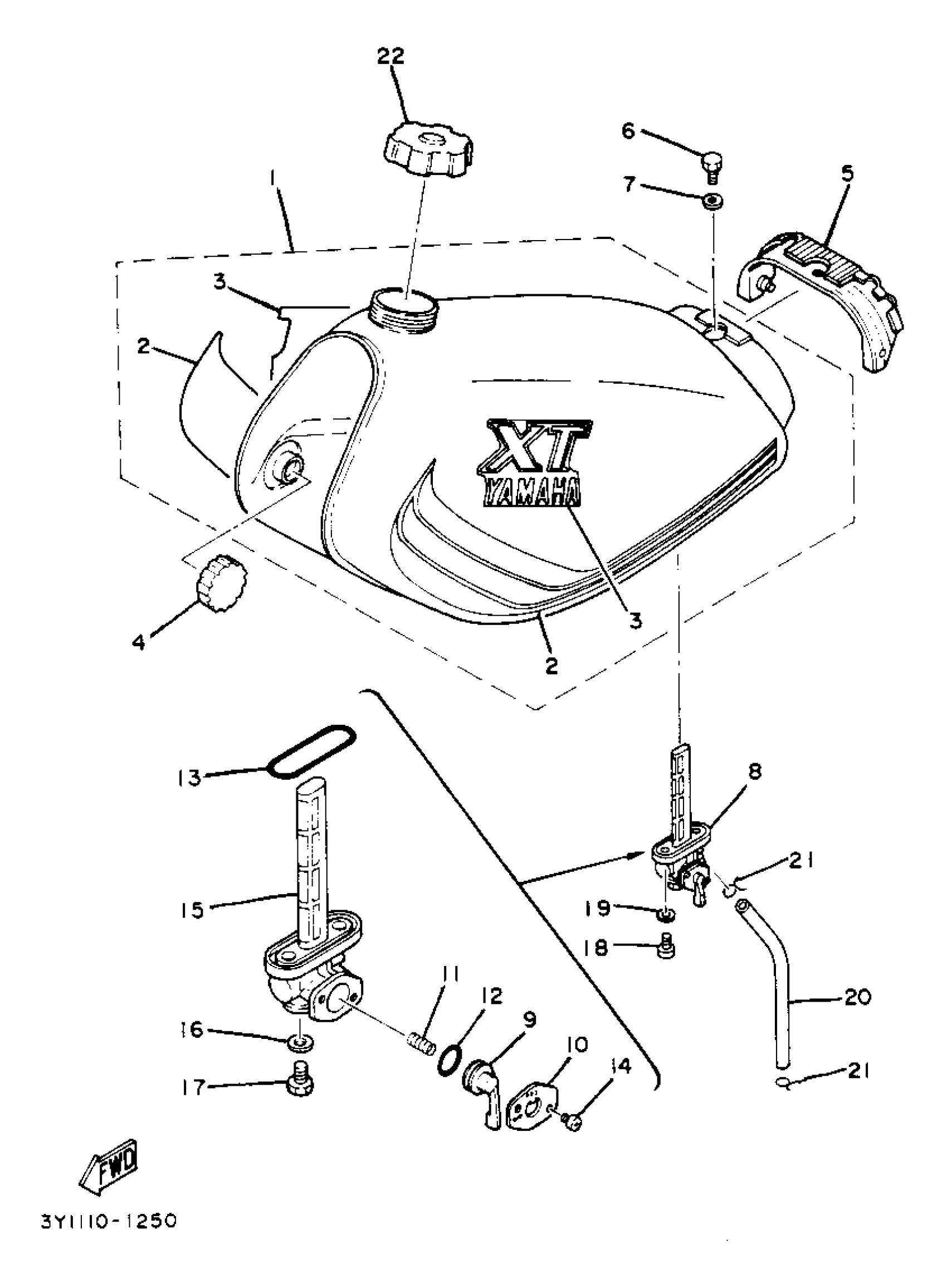

Yamaha XT250J_1982 FUEL TANK Diagram

FUEL TANK

3Y1-24110-00-X5

Unavailable

. GRAPHIC SET

3Y1-24240-30-00

Unavailable

. EMBLEM 1

3Y1-24161-20-00

Unavailable

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

DAMPER, LOCATING 2

3Y1-24182-01-00

Unavailable

BOLT(8CP)

97017-06014-00

$8.49

WASHER, PLATE

90201-06095-00

$8.49

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

. UNAVAILABLE IN PRICE BOOK

[3Y-12452-40-00

Unavailable

UNAVAILABLE IN PRICE BOOK

[3Y-12452-50-00

Unavailable

. SPRING

2W6-24529-00-00

Unavailable

O-RING

2N3-24528-00-00

Unavailable

O-RING

2W6-24512-00-00

$7.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

NET, FILTER 1

3Y1-24514-00-00

$46.99

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE (L200)

90445-10752-00

Unavailable

CLIP

90467-090A2-00

Unavailable

CAP ASSY

3Y1-24610-01-00

Unavailable
