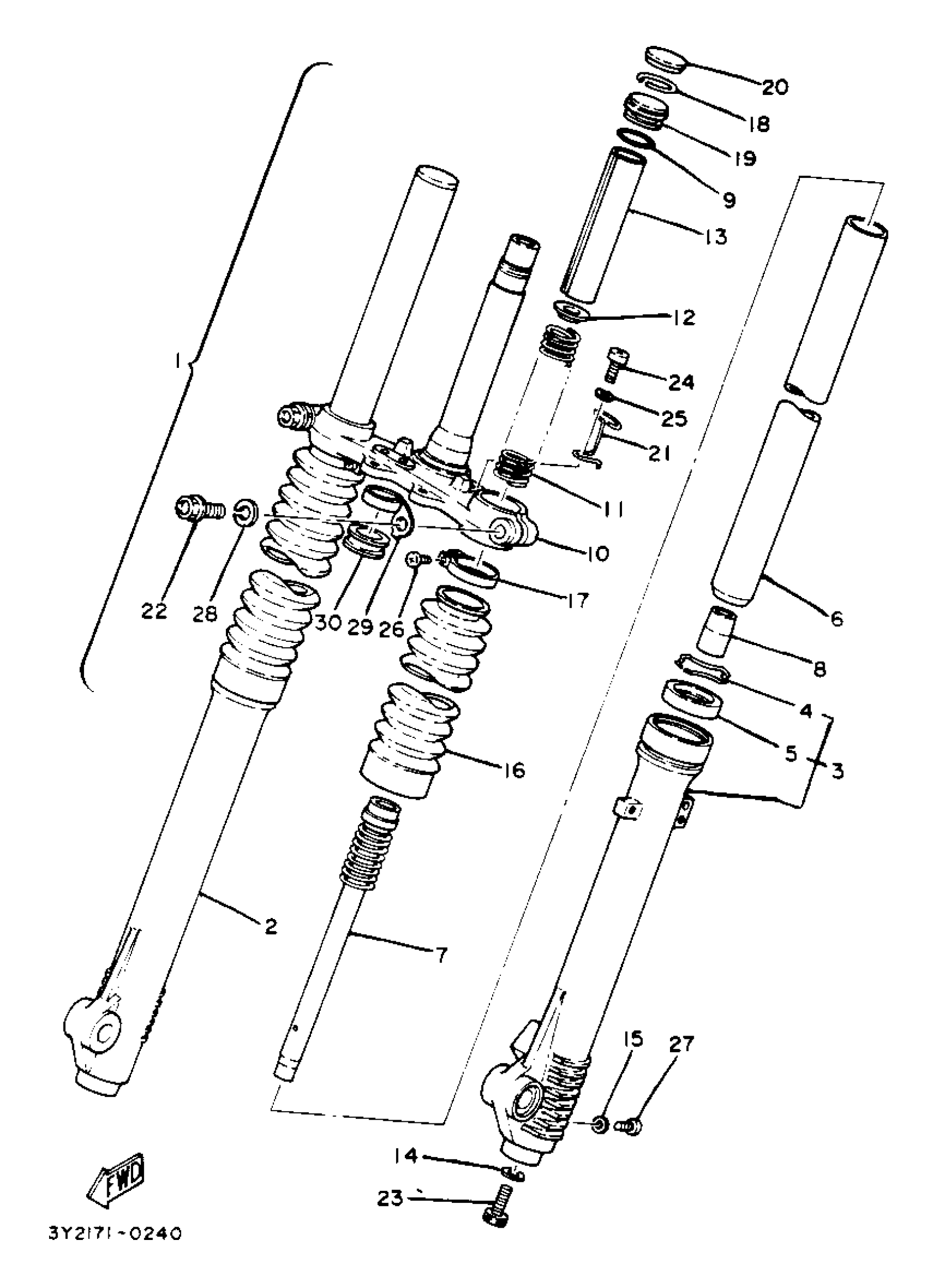

Yamaha XT250J_1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3Y1-23100-00-00)

Unavailable

2

. TUBE, OUTER 2

3Y1-23136-00-98

Unavailable

3

. TUBE, OUTER 1

3Y1-23126-00-98

Unavailable

4

RING, SNAP

4A1-23156-00-00

$5.49

5

OIL SEAL

1T3-23145-00-00

$16.49

6

. INNER TUBE 1

3Y1-23110-00-00

Unavailable

7

. CYLINDER, FRONT FORK

3Y1-23170-00-00

Unavailable

8

TAPER SPINDLE

1W1-23173-L0-00

$31.99

9

O-RING

3J2-23114-00-00

$8.99

10

. UNAVAILABLE IN PRICE BOOK (3Y1-23340-00-33)

3Y1-23340-30-33

Unavailable

11

. SPRING, FRONT FORK

3Y1-23141-00-00

Unavailable

12

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

13

. SPACER

2W6-23118-00-00

Unavailable

14

GASKET

509-23158-L0-00

$16.49

15

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

16

. BOOT, FRONT FORK

3Y1-23191-00-00

Unavailable

17

BAND, BOOT

341-92090-60-00

Unavailable

18

RING, SNAP

3J2-23183-00-00

Unavailable

19

. BOLT, CAP

3Y1-23111-00-00

Unavailable

20

. CAP, FRONT FORK

3Y1-23168-00-00

Unavailable

21

. GUIDE, CABLE

3Y1-2331E-00-00

Unavailable

22

BOLT 2

2NX-23356-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

SCREW

509-23194-L0-00

Unavailable

27

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

28

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

29

. HOLDER, CABLE

3Y1-23317-00-00

Unavailable

30

GUIDE, WIRE

1W1-23389-00-00

Unavailable
