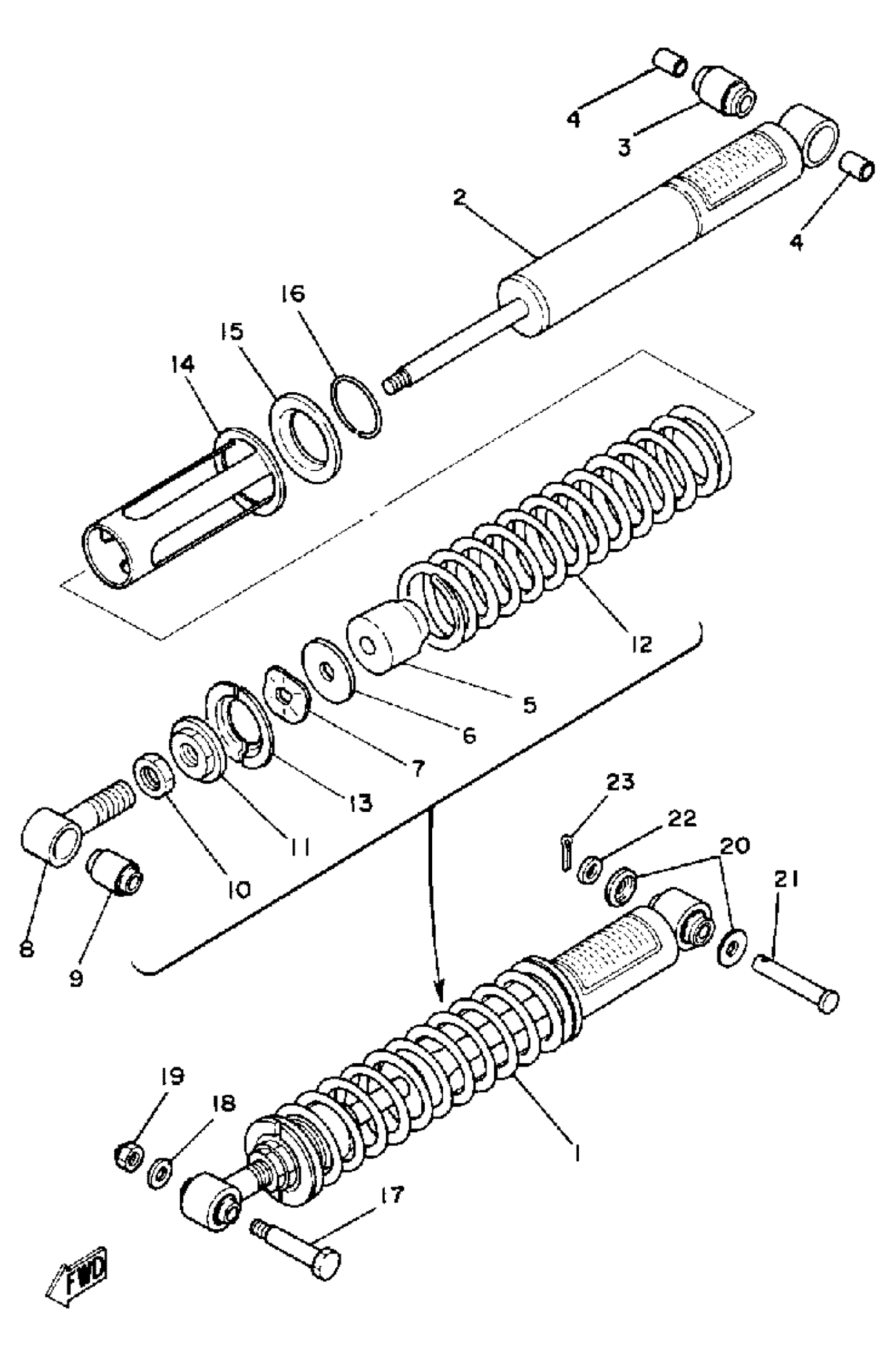

Yamaha XT250H_1981 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSEMBLY, REAR

3Y1-22210-01-00

Unavailable

2

DAMPER SUB-ASSEMBLY

(3Y1-22401-00-00)

Unavailable

3

BUSH, REAR SHOCK ABSORBER

3R4-22226-00-00

Unavailable

4

BUSH, SOLID (1M1)

90380-12051-00

$15.99

5

BUMP, STOP

(1W1-22493-00-00)

Unavailable

6

. SUPPORT, BUMP STOP

3R4-22228-00-00

Unavailable

7

. WASHER, WAVE

90206-14067-00

Unavailable

8

UPPER BRACKET SUB-ASSEMBLY

(3Y1-22409-00-00)

Unavailable

9

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

Unavailable

10

NUT, HEXAGON (8F3)

90170-20211-00

$4.72

11

. SEAT, SPRING UPPER

3R4-22213-00-00

Unavailable

12

. SPRING

3Y1-22212-00-00

Unavailable

13

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

14

GUIDE, SPRING 2

(3Y1-22224-00-00)

Unavailable

15

SEAT, SPRING LOWER

(3Y1-22223-00-00

Unavailable

16

. CIRCLIP, OUTER

93440-48079-00

Unavailable

17

BOLT (1M1)

90109-10453-00

Unavailable

18

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

19

NUT, U

95617-10100-00

Unavailable

20

COVER, THRUST

1W1-22128-00-00

Unavailable

21

PIN, CLEVIS (3Y2)

90240-12075-00

Unavailable

22

WASHER, PLATE(663)

92990-12600-00

Unavailable

23

PIN, COTTER

91490-30030-00

Unavailable
