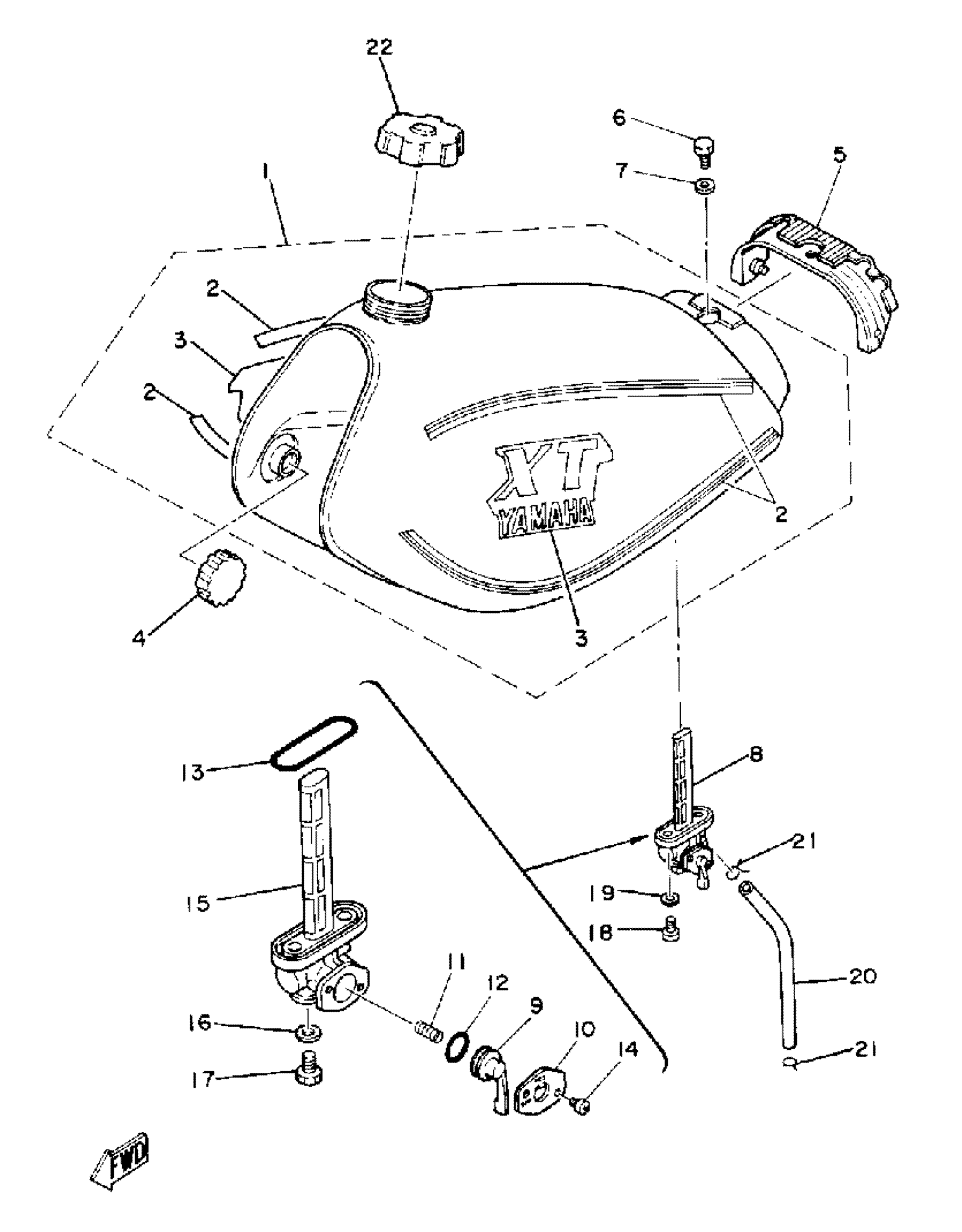

Yamaha XT250H_1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3Y1-24110-00-04

Unavailable

1

FUEL TANK

(3Y1-24110-00-08)

Unavailable

2

. GRAPHIC SET

3Y1-24240-20-00

Unavailable

3

. EMBLEM 1

2J0-24161-20-00

Unavailable

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

DAMPER, LOCATING 2

3Y1-24182-01-00

Unavailable

6

BOLT(8CP)

97017-06014-00

$8.49

7

WASHER, PLATE

90201-06095-00

$8.49

8

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

9

. LEVER, COCK

[3Y1-24524-00-00-00

Unavailable

10

PLATE, LEVER FITTING

[3Y1-24525-00-00

Unavailable

11

. SPRING

2W6-24529-00-00

Unavailable

12

O-RING

2N3-24528-00-00

Unavailable

13

O-RING

2W6-24512-00-00

$7.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

. NET, FILTER 1

3Y1-242514-00-00

Unavailable

16

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

17

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

HOSE (L200)

90445-10752-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

CAP ASSY

3Y1-24610-01-00

Unavailable
