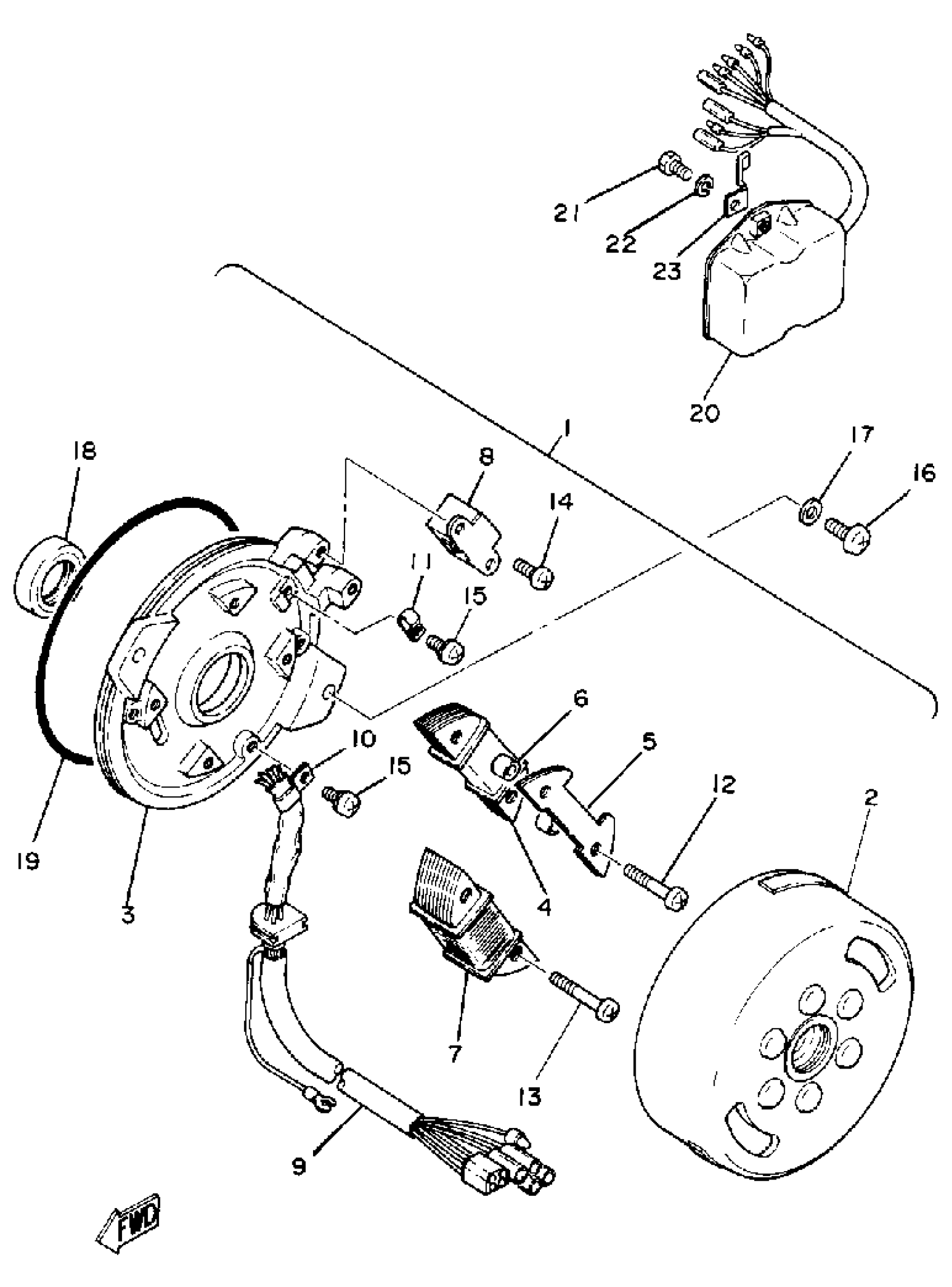

Yamaha XT250H_1981 CDI MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(3Y1-85500-20-00)

Unavailable

2

ROTOR ASDSEMBLY

(3Y1-85550-20-00)

Unavailable

3

. BASE, MAGNETO

3Y1-85509-20-00

Unavailable

4

. COIL SOURCE 2

31G-85512-20-00

Unavailable

5

. SPACER

3Y1-85519-20-00

Unavailable

6

. COLLAR, COIL FITTING

3Y1-81343-20-00

Unavailable

7

. COIL, LIGHTING

3Y1-85513-20-00

Unavailable

8

. COIL, PULSER

3Y1-85580-20-00

Unavailable

9

. LEAD, WIRE ASSEMBLY

3Y1-85515-20-00

Unavailable

10

CLAMP, READ

445-81328-20-00

Unavailable

11

CLAMP, LEAD

[3Y1-85528-20-00

Unavailable

12

SCREW, PAN HEAD

98517-05030-00

$10.49

13

SCREW, PAN

98507-05035-00

$8.49

14

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

OIL SEAL (3Y1)

93102-25226-00

Unavailable

19

O-RING (3Y2)

93211-19413-00

Unavailable

20

CDI UNIT ASSEMBLY

3Y1-85540-20-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

CLAMP

[90462-08068-00

Unavailable
