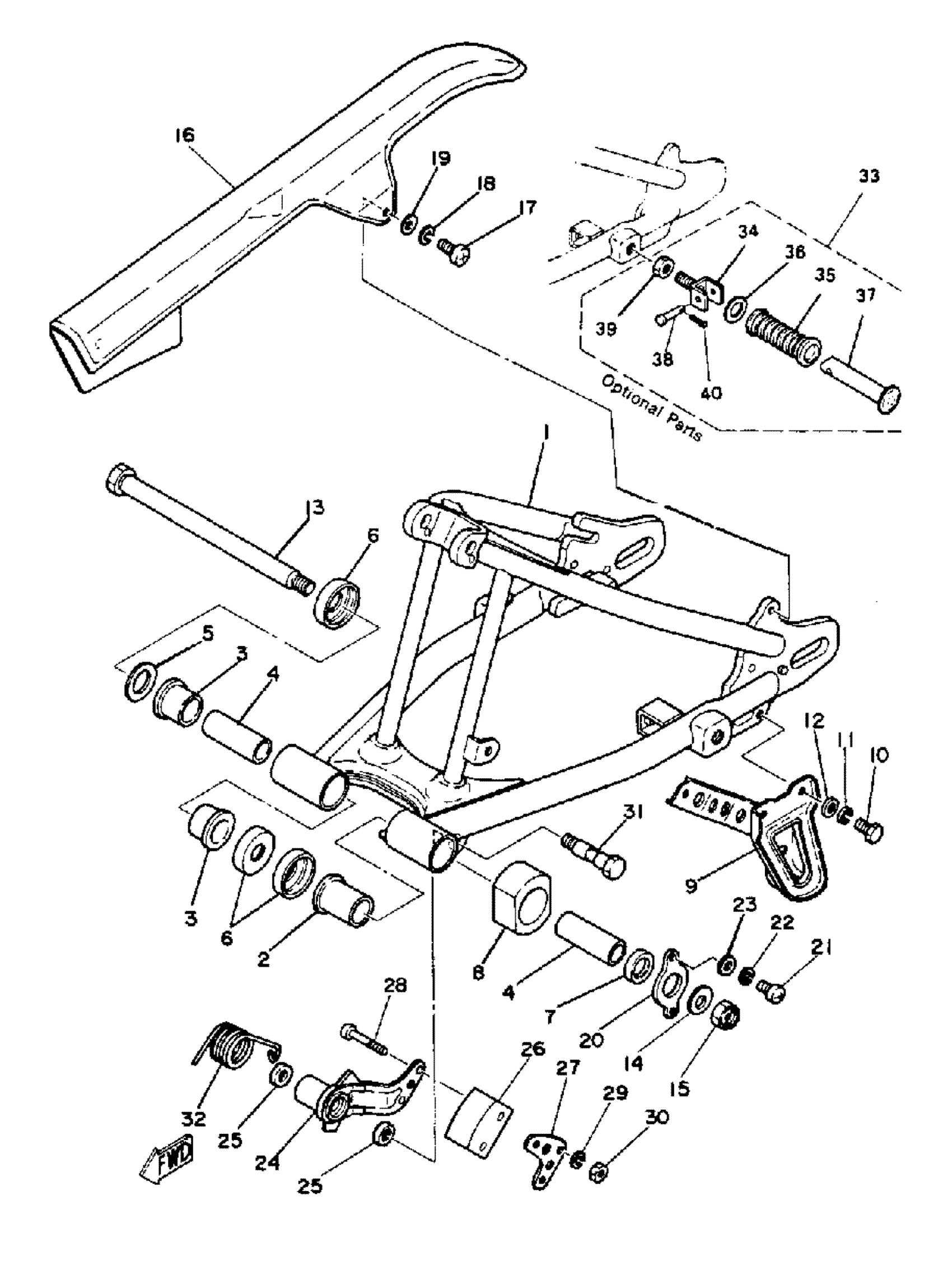

Yamaha XT250G_1980 SWING ARM Diagram

#

Description
Price

1

REAR ARM

3Y1-22110-00-33

Unavailable

2

BUSH

3Y1-22184-01-00

$38.99

3

BUSH 1

3Y1-22123-01-00

Unavailable

4

BUSH 2

3Y1-22124-01-00

Unavailable

5

SHIM,REAR ARM

240-22127-00-00

$6.99

6

COVER, THRUST

322-22128-01-00

$35.99

7

OIL SEAL (20.9X28X4-1W1)

93109-22019-00

$15.99

8

SEAL, GUARD

3Y1-22151-00-00

Unavailable

9

CHAIN, GUARD

3Y1-22318-00-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

SHAFT, PIVOT

2N6-22141-00-00

Unavailable

14

WASHER, PLATE (3X3)

90201-15797-00

$9.49

15

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

16

CASE, CHAIN

3Y1-22311-00-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-062AB-00

Unavailable

20

PLATE

3Y1-21329-00-00

Unavailable

21

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

$2.80

24

ARM, TENSIONER

3Y1-22179-00-00

Unavailable

25

OIL SEAL (2K8)

93109-14021-00

Unavailable

26

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

27

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

28

SCREW, PAN

98507-05040-00

Unavailable

29

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

30

NUT, HEXAGON (663)

95380-05600-00

Unavailable

31

BOLT (1J4)

90109-10483-00

Unavailable

32

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

33

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

34

. BRACKET 1

120-27432-02-00

Unavailable

35

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

36

WASHER, PLATE (888)

90201-20279-00

Unavailable

37

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

38

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

39

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

40

PIN, COTTER

91490-16020-00

Unavailable
